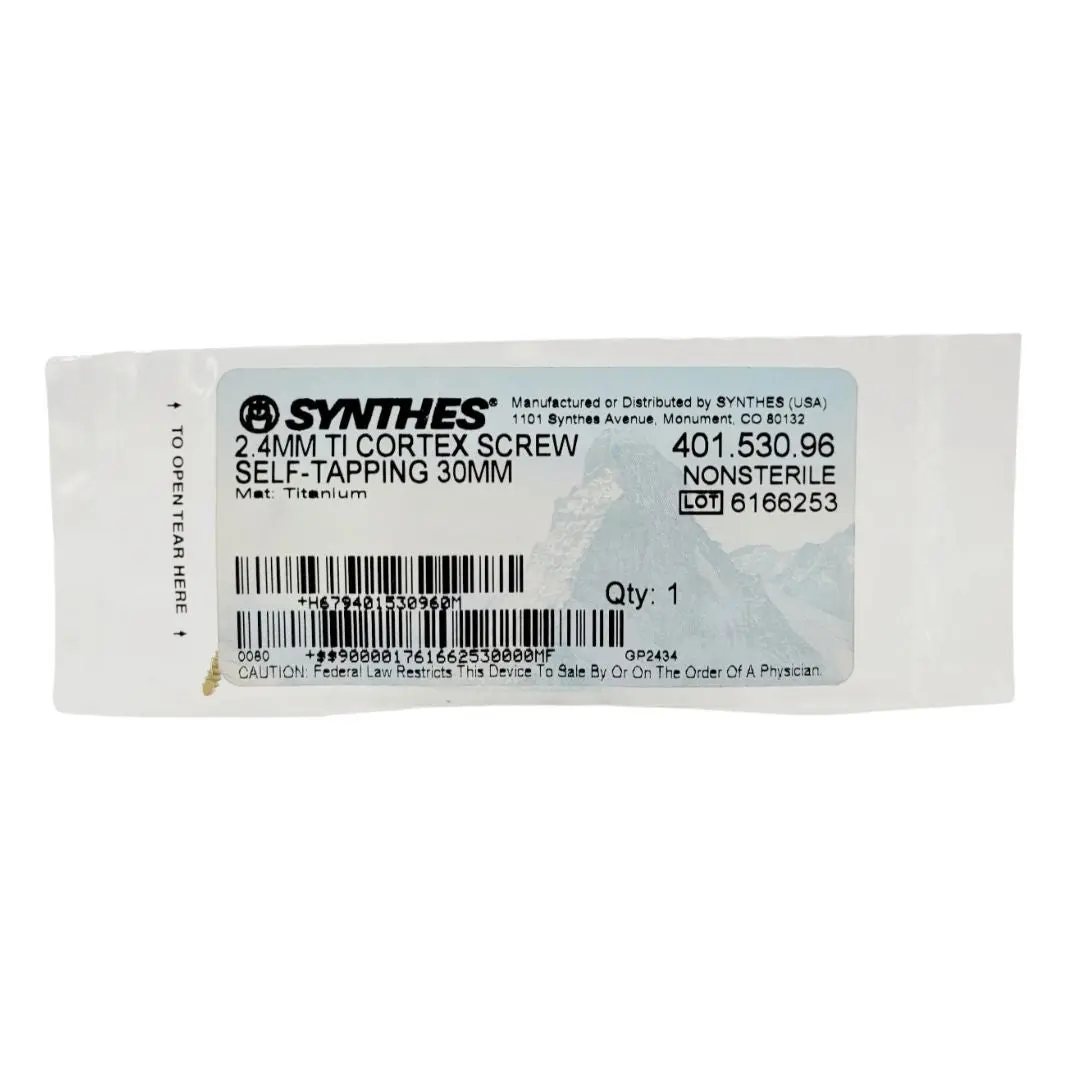

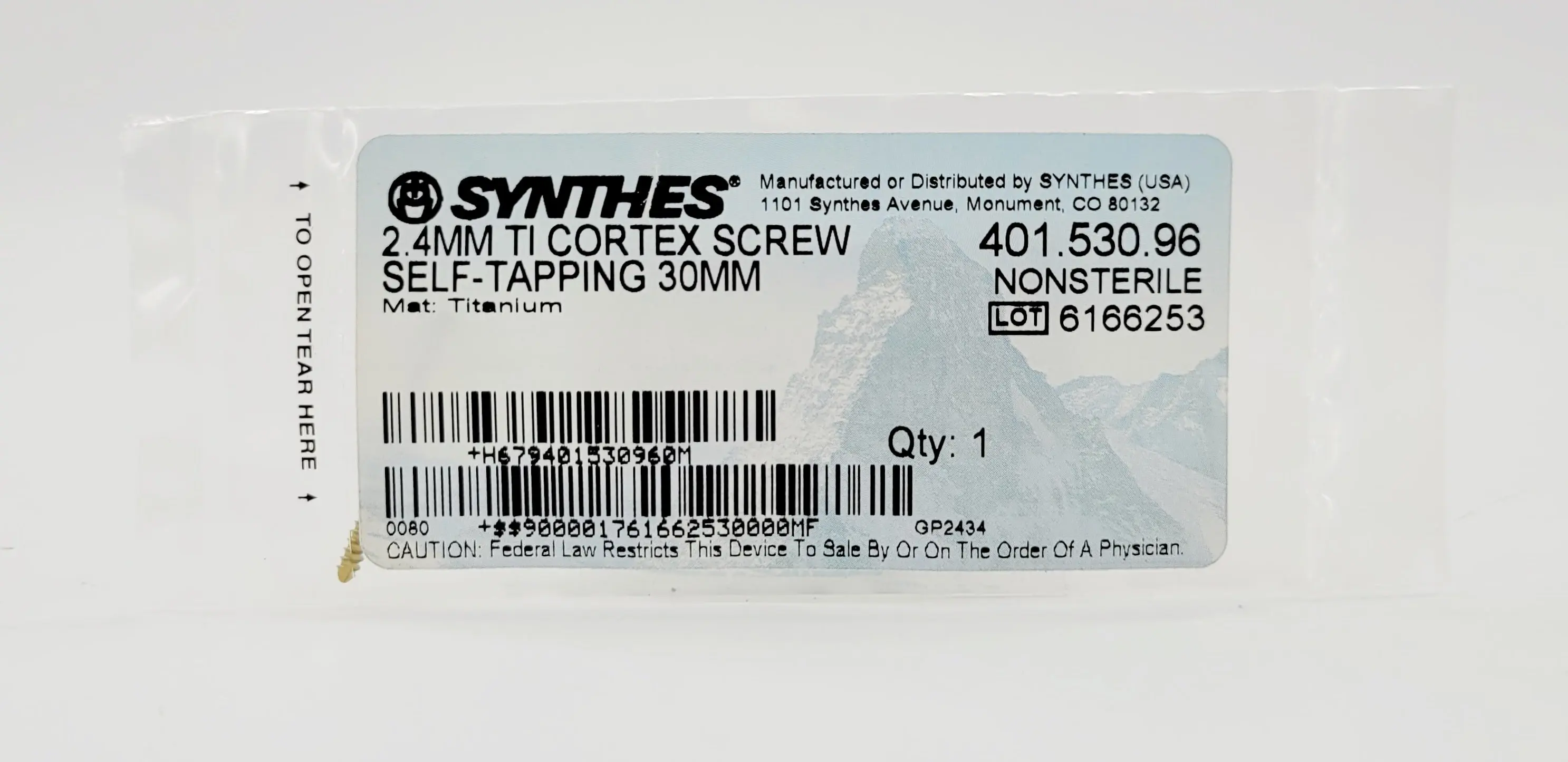

Synthes 401.530.96 2.4mm Titanium Cortex Screw Self-tapping 30mm
• Model: 401.530.96
• Cortex Screw
• 2.4 dia. x 30 mm Length
• Titanium
• Self-Tapping
• 1.7 mm Core Diameter
• 4.5 mm Head Diameter
• 1 mm Thread Pitch
• with Cruciform Recess
• Single-Use
• For Modular Hand Systems
A small, non-sterile, threaded rod with a slotted head typically used for internal orthopedic fracture fixation by being screwed into bone to hold plates or nails to bone or to provide direct interfragmentary stabilization of bone, or it may fasten soft tissue to bone. It is made of a material that is corrosion resisting and cannot be chemically degraded or absorbed via natural body processes (includes implant grade metal such as surgical steel, titanium alloy, or carbon fiber). A "lag screw" can be any of these used to obtain compression. This device must be sterilized prior to use.
The Synthes 401.530.96 is a meticulously crafted titanium self‑tapping cortical screw built for precise fixation in modular hand surgical systems. Its 2.4 mm diameter and 30 mm length provide a balanced profile for stabilization in small-bone applications. With a 1.7 mm core, the screw retains strength while tapering to accommodate accurate threading. The 4.5 mm head features a cruciform, or cross‑slotted, drive—offering surgeons high torque control and minimized cam-out during insertion—crucial in delicate operative contexts.
Made from implant-grade titanium, the 401.530.96 delivers exceptional biocompatibility, superior corrosion resistance, and high osteointegration—vital traits for internal fixation devices. Being self‑tapping, the screw eliminates pre-tapping steps, allowing it to cut its own thread groove as it's inserted. This feature not only speeds up surgical workflow but also reduces thermal and mechanical trauma to bone. The 1 mm thread pitch ensures a firm, stable engagement in cortical bone, providing the rigidity necessary for effective stabilization during healing.
Clinically, the 401.530.96 shines in procedures involving the hand and upper extremity, particularly where precision orientation and secure anchorage are imperative—fractures, osteotomies, and plate fixation all benefit. The screw is single-use and delivered in sterile packaging, meeting strict surgical hygiene standards and reducing infection risk. Its compatibility with standard drill bits (1.8 mm threaded and 2.4 mm gliding) makes it straightforward to integrate into existing hand trauma instrument sets, streamlining setup and enhancing procedural flexibility.
