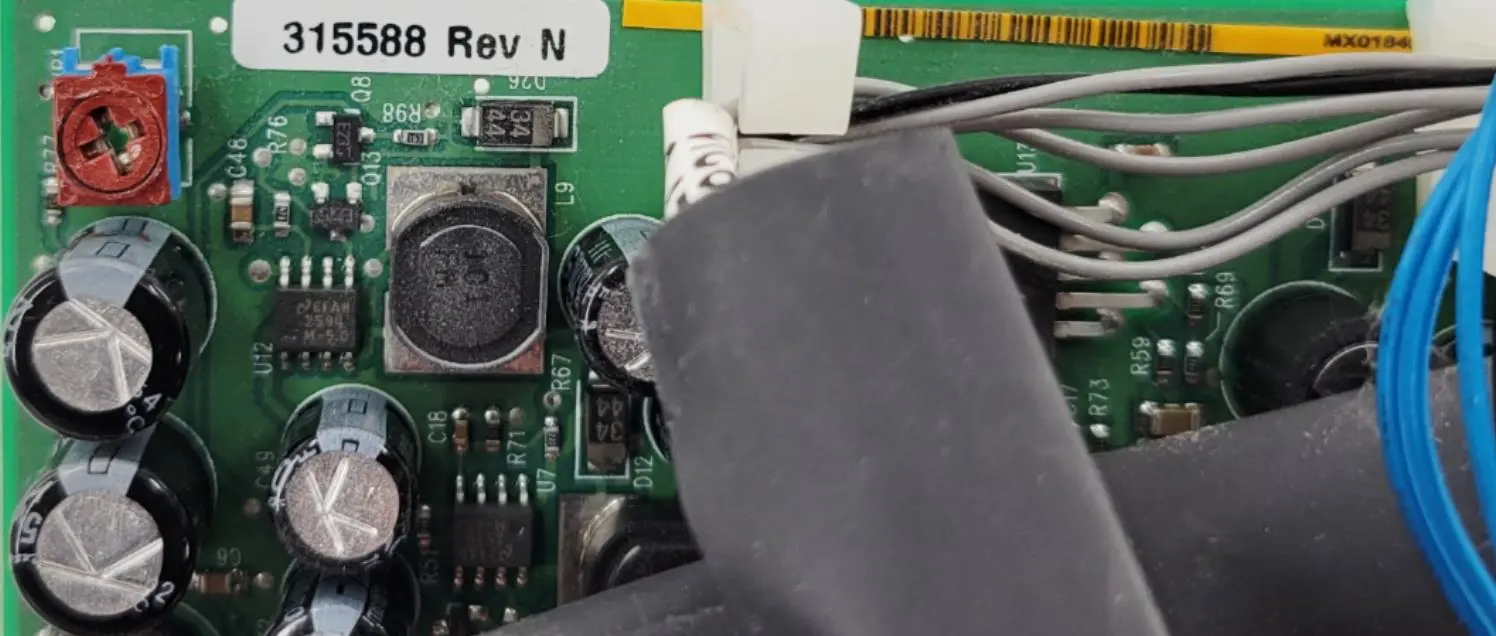

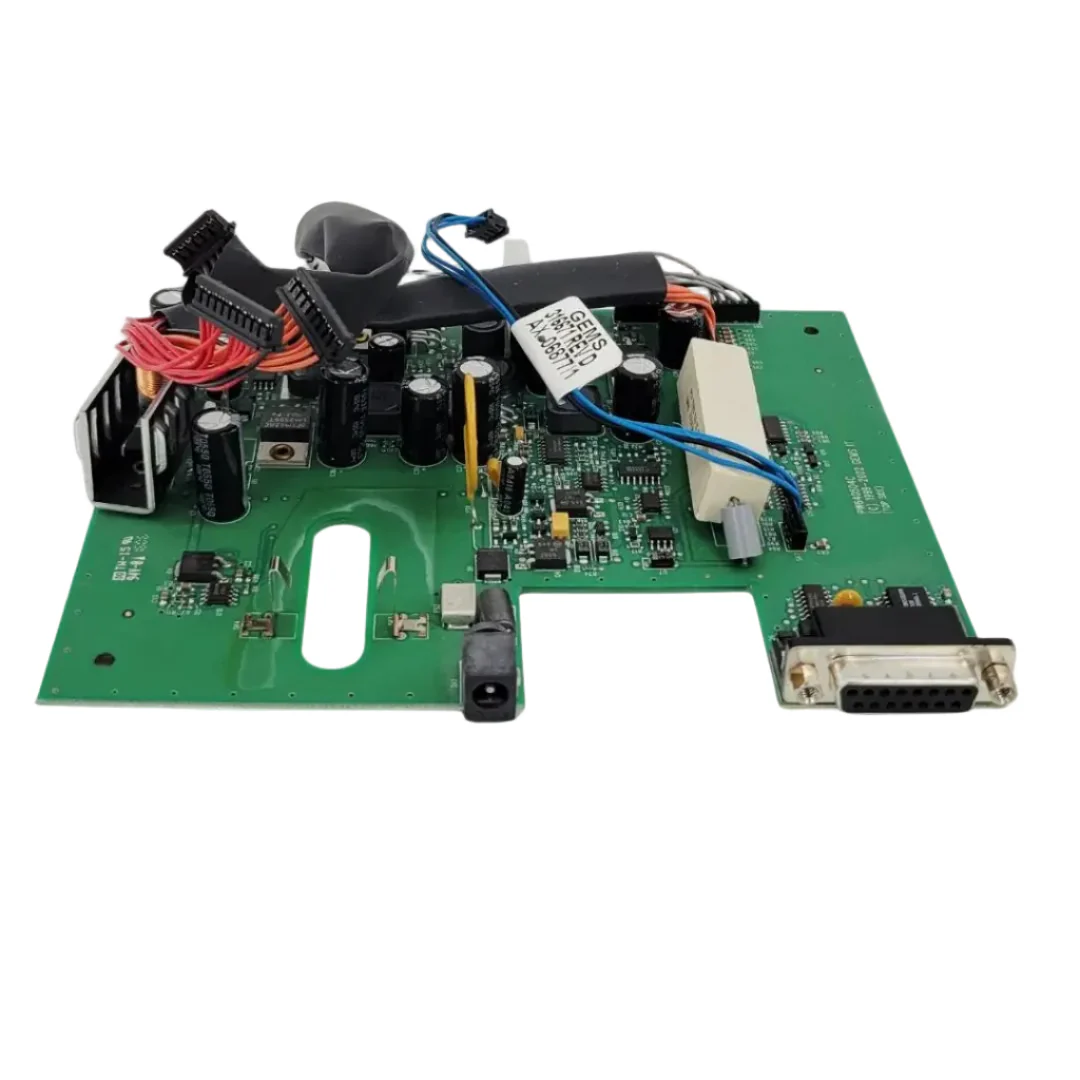

GE 315588 Rev N Power Supply Circuit Board Wire Assembly Board

GE Healthcare 315588 Rev N Power Supply Board (Dinamap Pro 300 V2)

The GE 315588 is the robust power interface for the Pro 300 V2 series. This board is engineered to manage the heavy power draws required for non-invasive blood pressure (NIBP) inflation while simultaneously maintaining the clean, low-noise signal needed for accurate patient vitals. This Revision N assembly includes the integrated wire headers and harnesses necessary for a secure connection to the monitor's internal chassis and battery charging circuit.

Carefully extracted from a professional clinical environment, this board has been inspected to ensure all capacitors, transformers, and solder joints are free from heat-stress or degradation. Replacing a faulty 315588 board is the primary solution for monitors experiencing "No Power," battery charging failure, or intermittent system resets.

Key Specifications

• Manufacturer: GE Healthcare

• Part Number: 315588

• Revision: Rev N

• Compatibility: GE Dinamap Pro 300 V2 Vital Signs Monitors

• Component Type: Power Supply Circuit Board / Wire Assembly

• Function: Voltage regulation, power distribution, and battery charging management

Technical & Professional Advantages

• Revision N Stability: Benefit from the manufacturer's latest hardware refinements, offering superior thermal management and electrical isolation over earlier revisions.

• Integrated Harnessing: Includes the factory-attached wire assembly, ensuring a simplified installation process with correct connector seating.

• Genuine OEM Safety: Maintains the monitor's original electrical safety standards (UL/IEC) and leakage current specifications.

• Professional Grade Cleaning: All used items undergo extensive disinfection per AAMI and OEM standards by Primis Medical’s staff (25+ years of clinical experience).

Condition

• Status: Used – Functional Subcomponent.

• Origin: Precision-extracted from a decommissioned Dinamap Pro 300 V2.

• Quality Assurance: Visual and continuity checks performed on all major connection points.

• Bio-Med Note: Installation by a qualified Biomedical Equipment Technician (BMET) is recommended to verify output voltages prior to patient use.

Warranty

• ✔ Primis "Current-Steady" 90-Day Warranty We guarantee the GE 315588 to be a functional, authentic GE part. If the board fails to power the unit or manage battery charging within 90 days, Primis Medical will provide a full refund or replacement.

Shipping

• Fast and secure shipping.

• Ships within 1 business day.

• Packaged in an anti-static ESD moisture-barrier bag and secured in a crush-resistant shipping container to protect sensitive power components.
