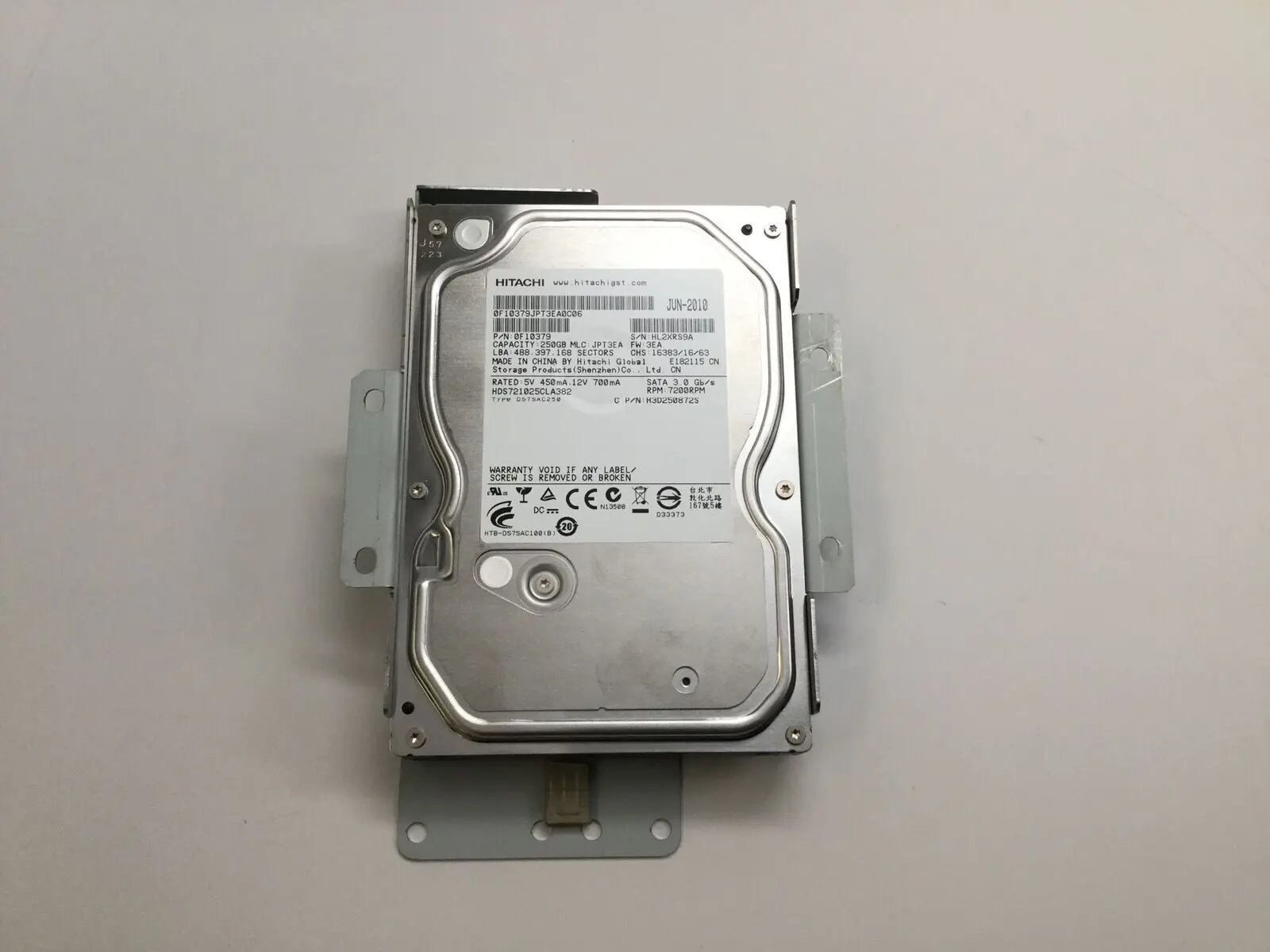

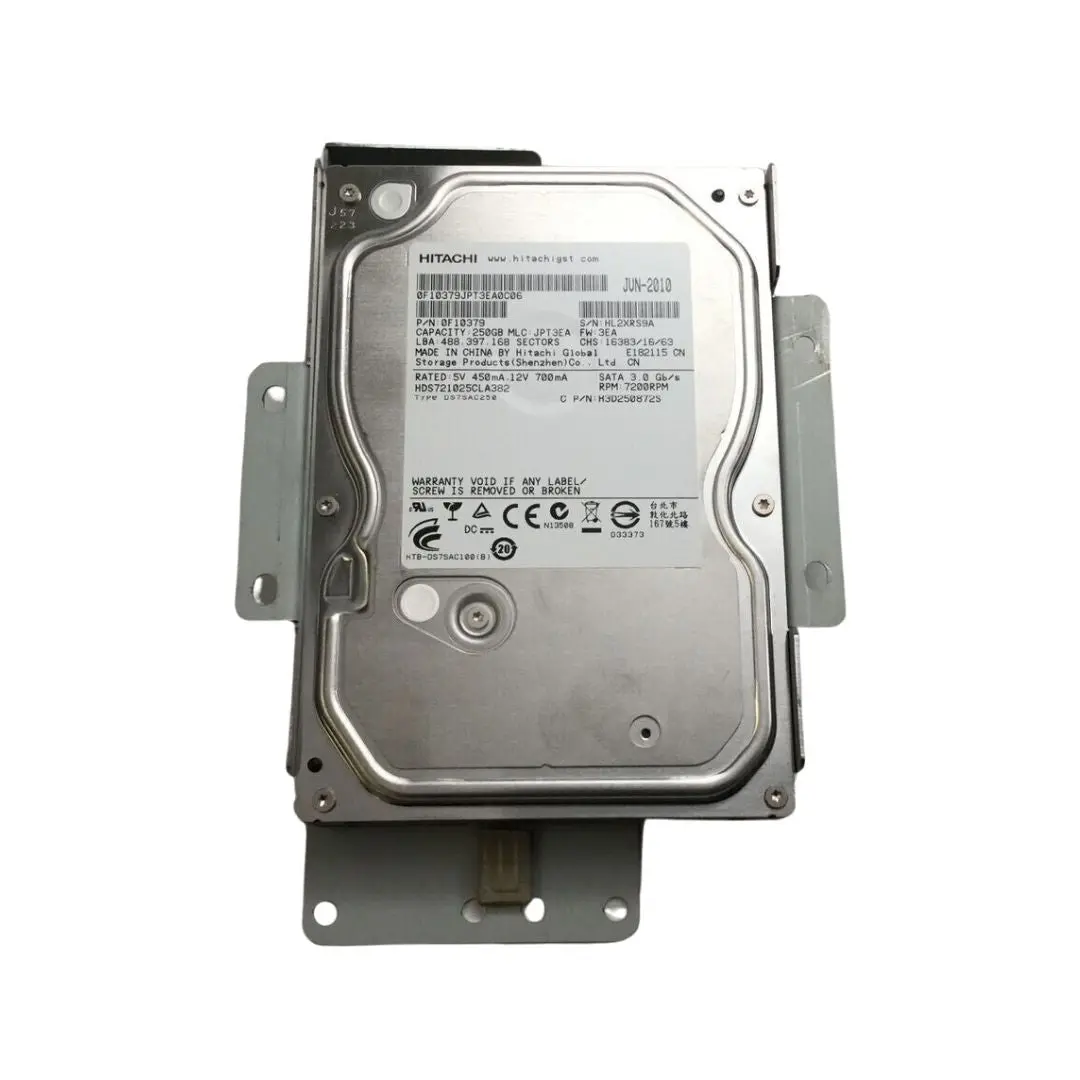

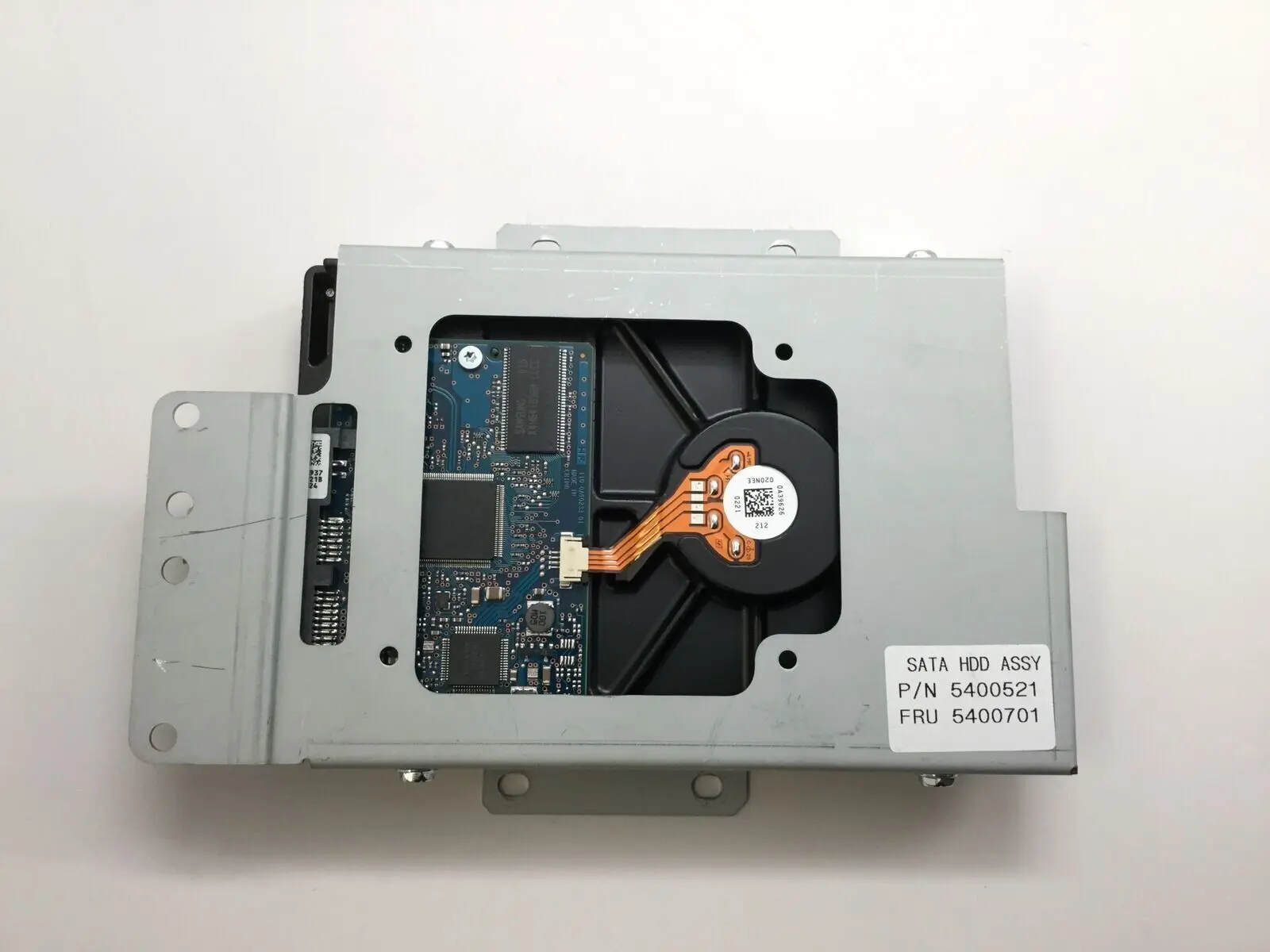

GE 5400521 Logiq P5 Ultrasound Hitachi 250GB Hard Drive with OS BT09

GE Logiq P5 Ultrasound Hard Drive | 250GB | OS BT09 | 5400521

The GE 5400521 is a critical system component specifically engineered for the GE Logiq P5 ultrasound platform. This 250GB internal hard drive serves as the primary storage architecture for the console, housing the core system software and patient database. This specific unit comes pre-loaded with Operating System BT09 (Breakthrough 2009), making it a "plug-and-play" solution for systems requiring this specific software revision.

In the event of a "System Initializing" hang-up, "Disk Boot Failure," or database corruption, replacing the physical drive with a pre-configured OS is the fastest way to return a Logiq P5 to clinical service without the need for external reloading of base software.

Key Specifications

• Manufacturer: GE Healthcare (Drive by Hitachi)

• Model / Part Number: 5400521

• Compatibility: GE Logiq P5 Ultrasound Systems

• Storage Capacity: 250 GB

• Form Factor: 2.5" Internal Drive

• Pre-Loaded OS: BT09 (Breakthrough 2009)

• Interface: SATA

Technical & Service Advantages

• Optimized BT09 Performance: The BT09 software revision is known for stabilizing the Logiq P5’s 4D imaging capabilities and improving DICOM connectivity. Having the OS pre-installed bypasses the lengthy "base-load" process, saving hours of field service time.

• Hitachi Reliability: Utilizing a Hitachi-built drive ensures the thermal and vibration tolerances meet GE's strict requirements for mobile medical imaging equipment.

• Rapid System Recovery: Replacing a failing drive with a pre-imaged 5400521 allows for immediate system boot-up, requiring only the subsequent input of specific system options/keys and local network (DICOM) configurations.

• High-Capacity Storage: The 250GB capacity provides ample space for large cine-loop captures and extended patient archives, ensuring the system maintains high performance during heavy diagnostic workloads.

Applications

• Service & Repair: Replacing crashed or clicking mechanical drives in GE Logiq P5 consoles.

• Software Downgrade/Upgrade: Restoring a system specifically to the BT09 environment to match existing fleet configurations or transducer compatibility.

• System Refurbishment: Upgrading older P5 units with a reliable, tested 250GB drive to extend the lifecycle of the asset.

Condition & Quality Assurance

• Status: Used — Pulled from a Working Environment.

• Functional Integrity: This drive has been harvested from a decommissioned, fully functional GE Logiq P5. It has been bench-tested to ensure the boot sector is intact and the OS loads to the primary imaging screen without errors.

• Professional Standards: With over 25 years of experience in medical imaging logistics, Primis Medical ensures all sensitive electronic components are handled in ESD-safe (Electrostatic Discharge) environments to prevent latent circuit damage.

Installation Note

[!IMPORTANT] While this drive contains the BT09 Operating System, the end-user may still need to enter the specific System Option Keys (e.g., 4D, DICOM, CW Doppler) unique to their machine's serial number to re-enable all previously purchased features.

Shipping & Handling

• ESD-Safe Packaging: Shipped in a professional anti-static bag and reinforced "crush-proof" boxing to protect the mechanical platters from transit shock.

• Fast Dispatch: Ships within 1 business day.
