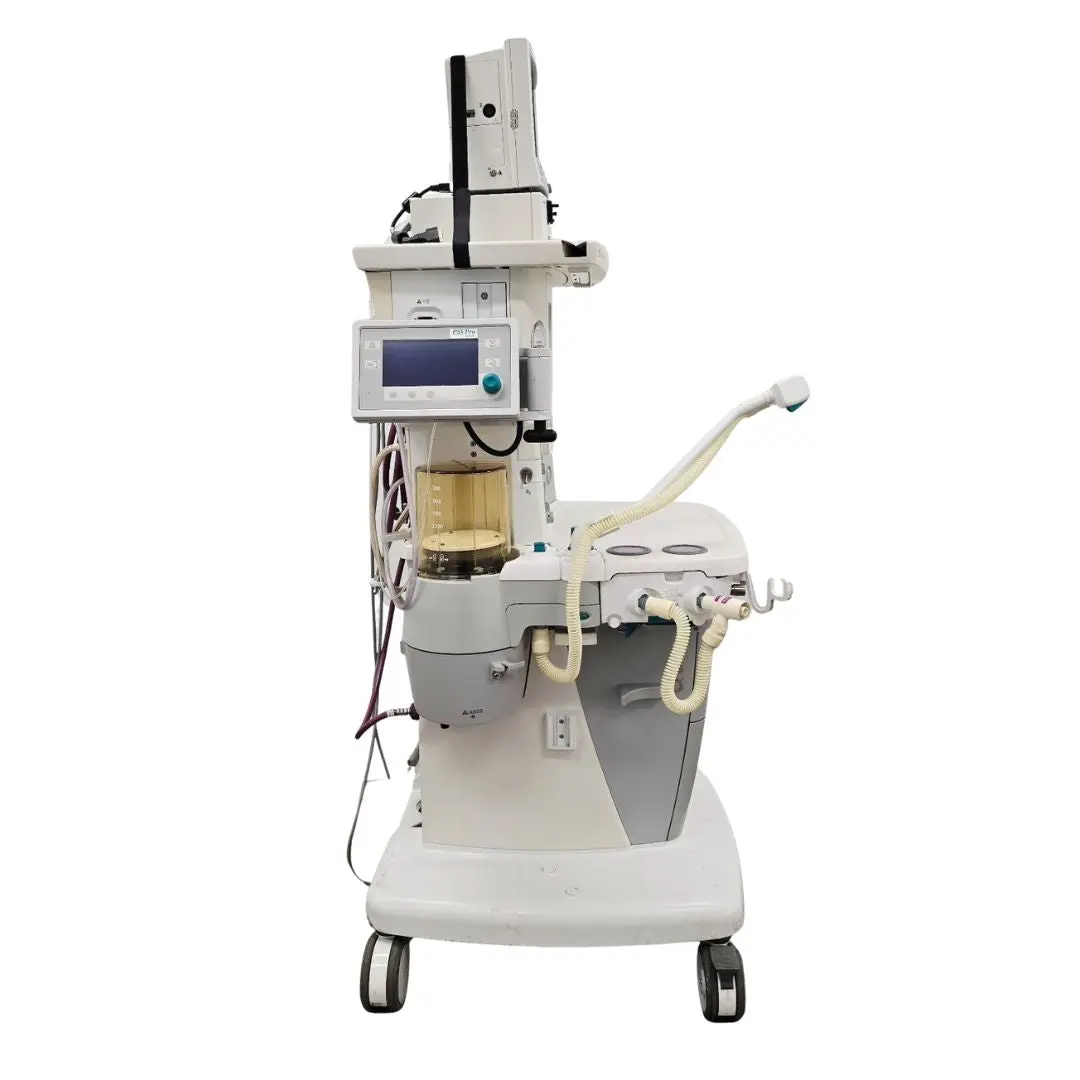

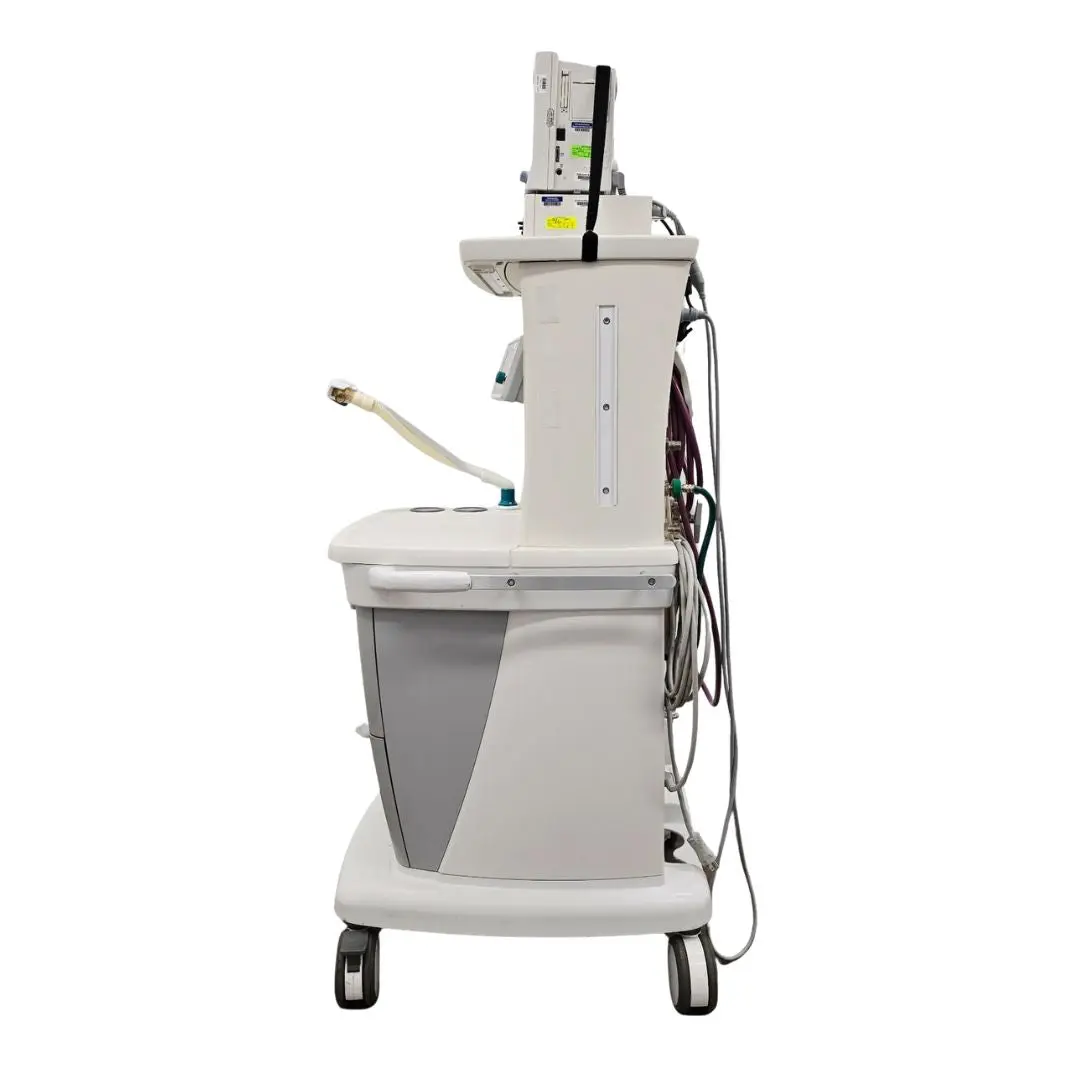

GE Datex Ohmeda Aespire 7900 Anesthesia Machine Monitor & Gas Module Certified

GE Datex Ohmeda Aespire 7900 Anesthesia Machine w/ Datascope Passport 2 Monitor & Datascope Gas Module SE Certified 90-Day Warranty

Anesthesia Machine:
• Model: Aespire 7900

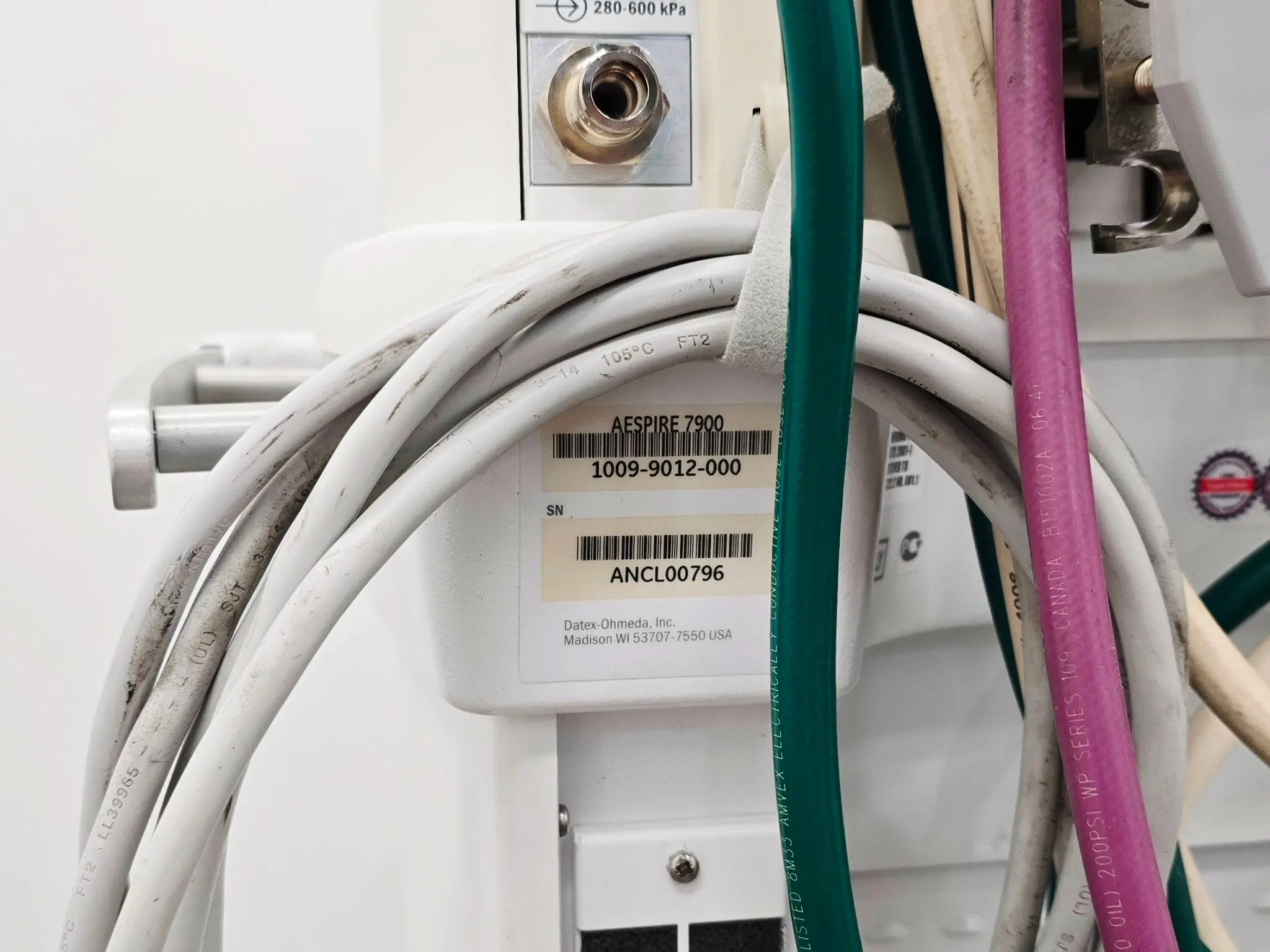

• REF: 1009-9012-000

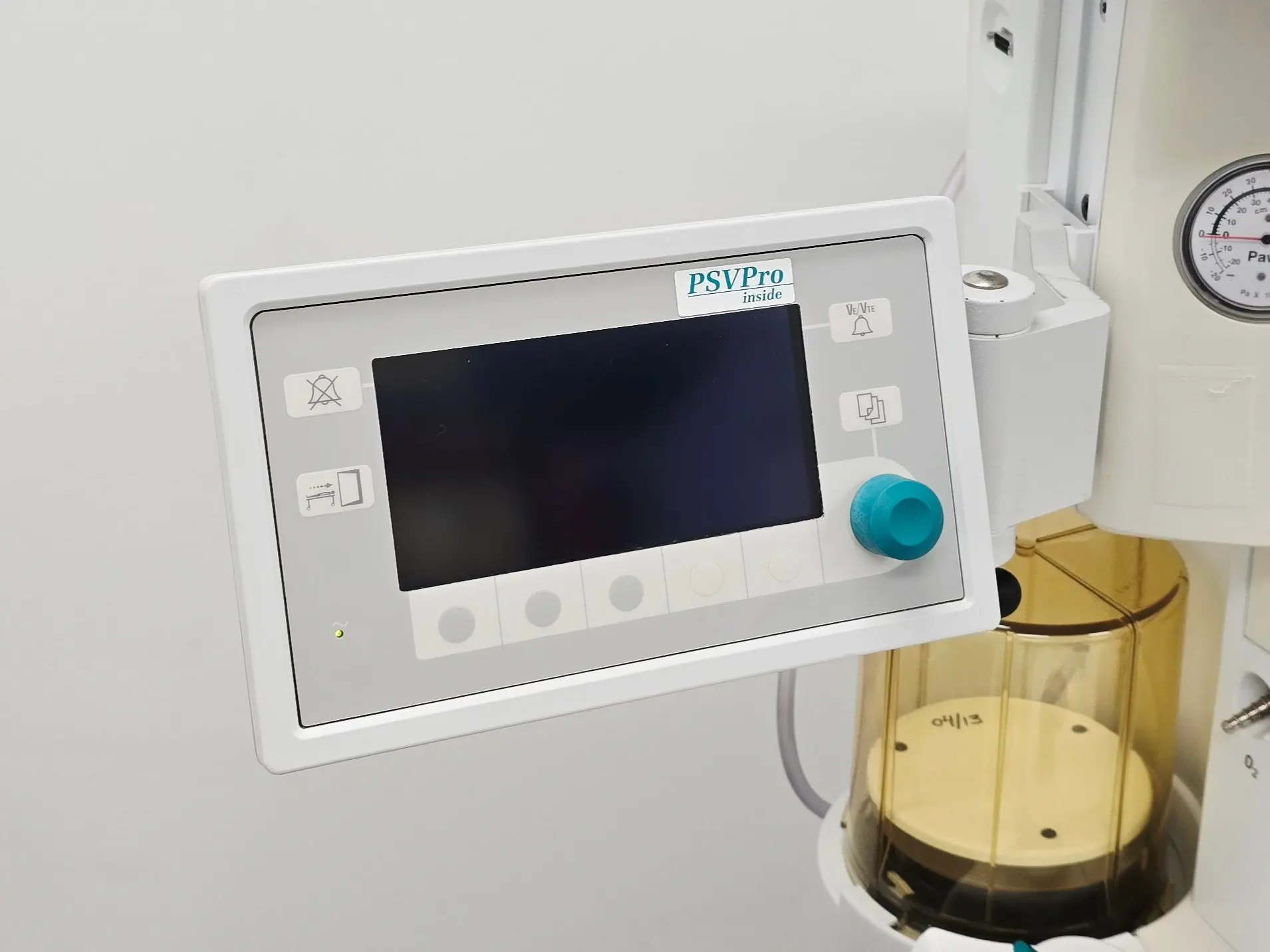

• Ventilator: 7900 “SmartVent” ventilator (part of the S/5 Aespire platform)
• Ventilation Modes: Volume Control, Pressure Control, SIMV, PSVPro with apnea backup (and often optional pressure support / waveforms)

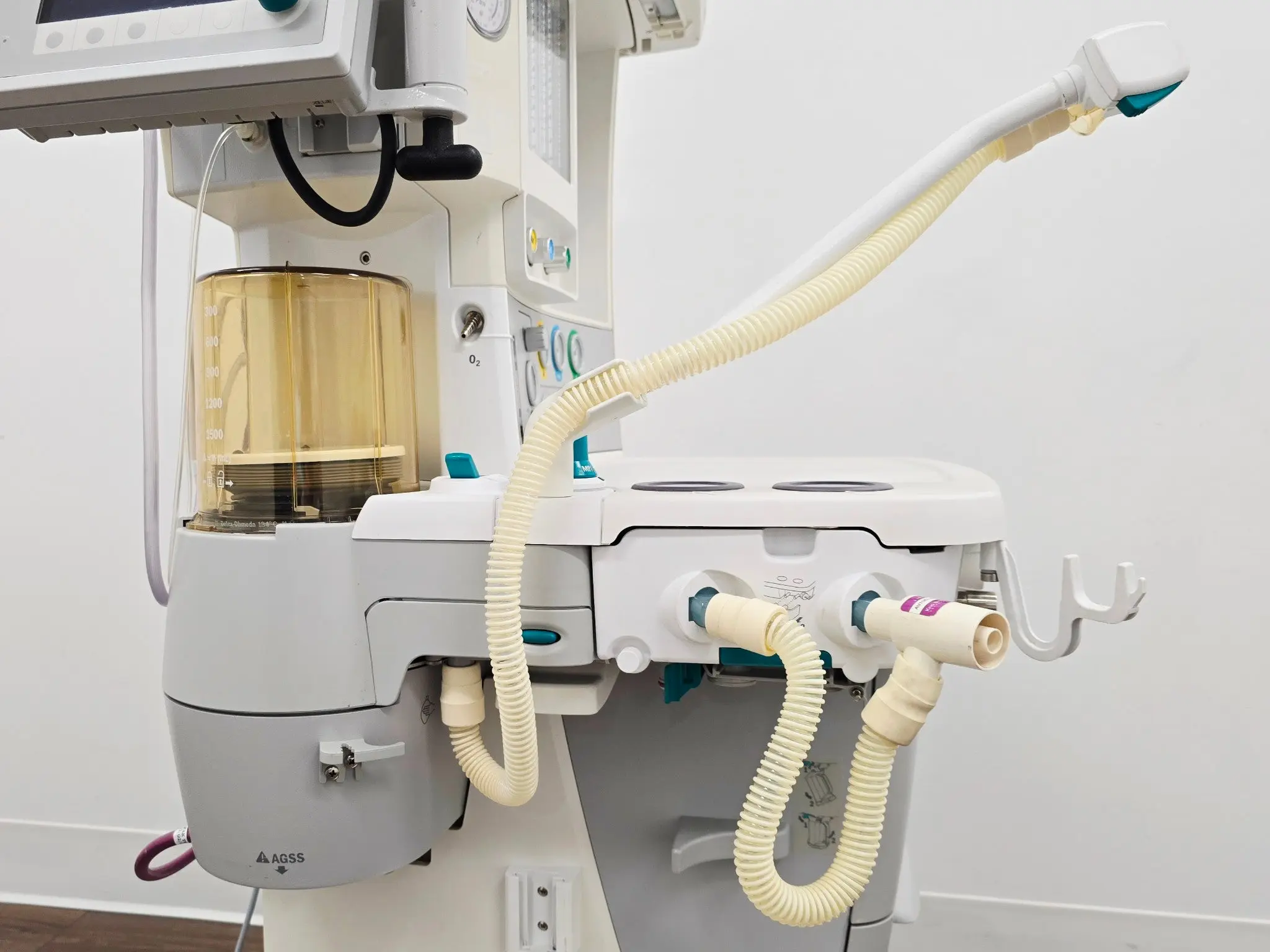

• Advanced Breathing System (ABS): Integrated into the workstation; small circuit volume (≈ 2.7 L) for fast response to fresh gas changes; autoclavable, no‑tool disassembly, minimal parts/connections

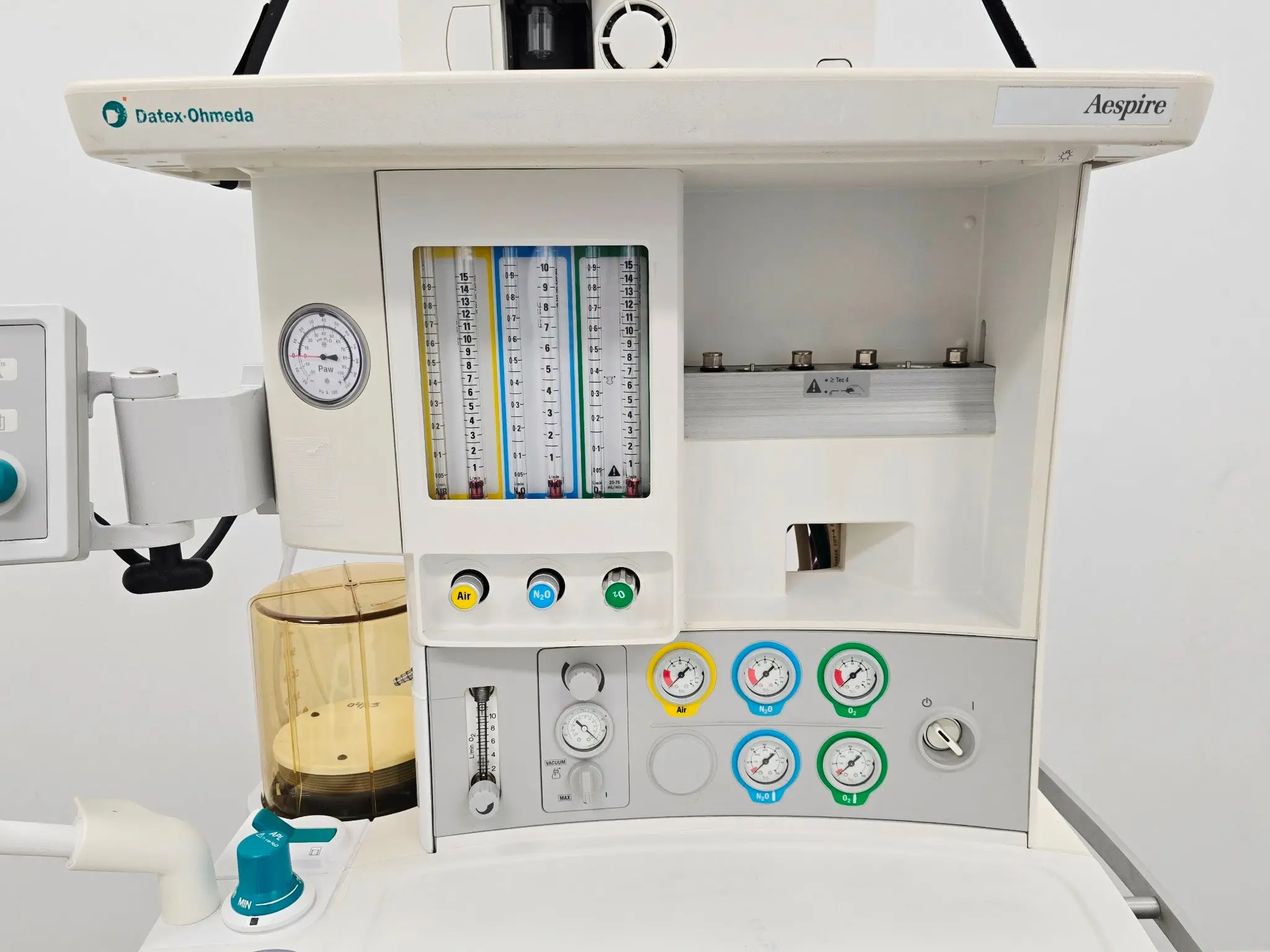

• Gas & Flow Specs: Minimum O₂ flow of 50 mL; dual flow tubes standard for higher resolution at low flows
• Power/ Electrical: 100–120 VAC, 50/60 Hz; power cord ~5 m (16.4 ft); current leakage < 300 μA
• Dimensions: 52.9" H x 28.3" W x 28.7" D
• Weight: 238 lbs

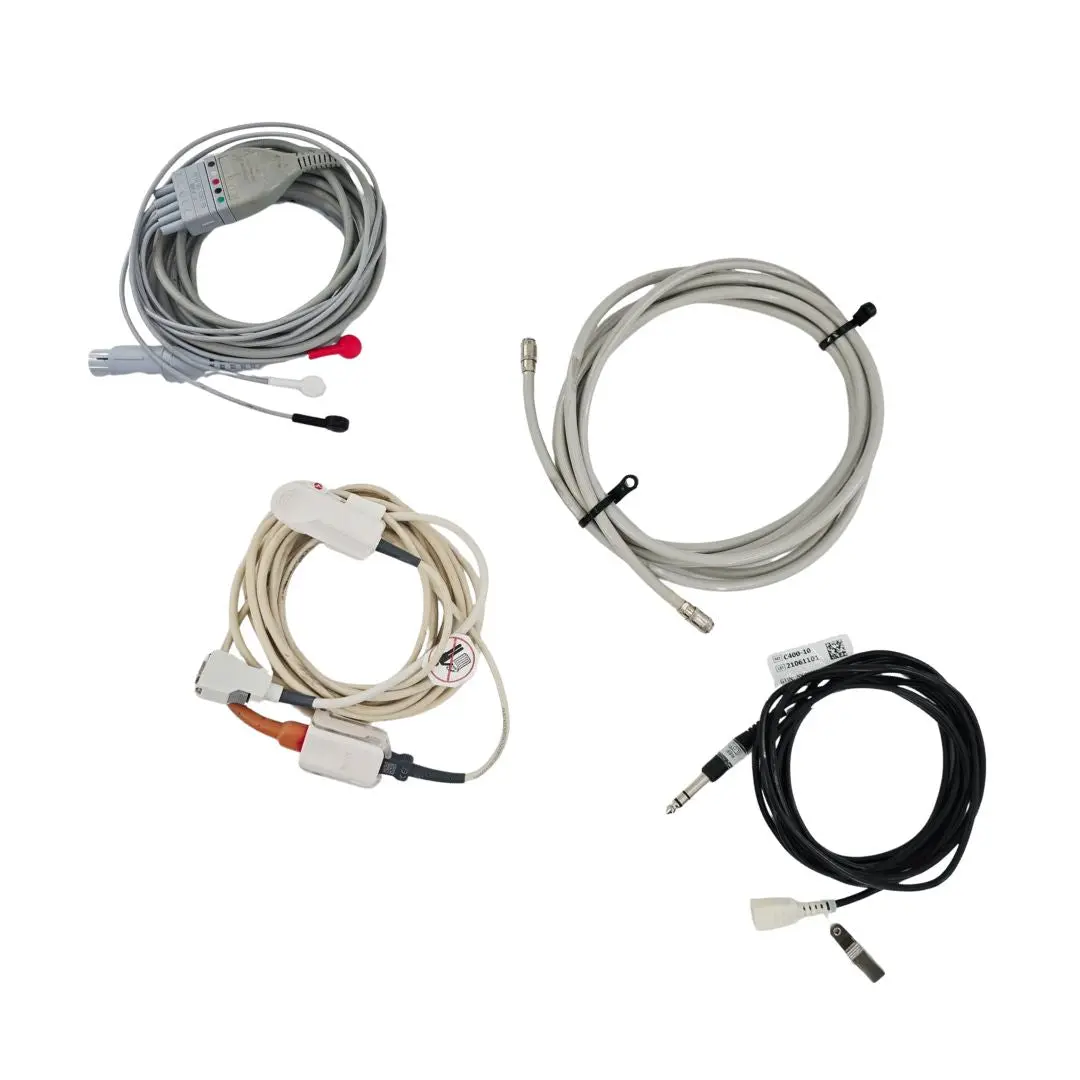

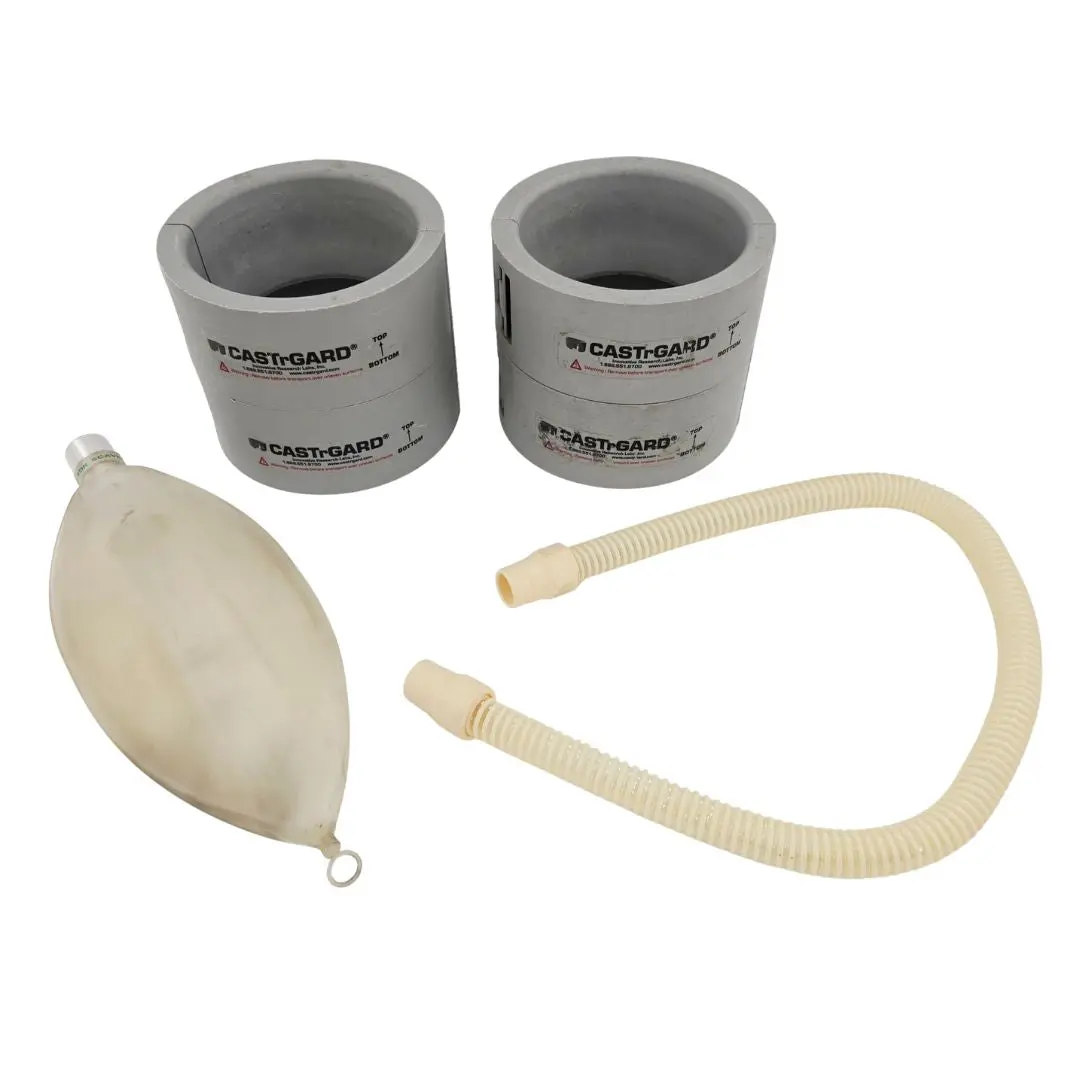

• INCLUDES: CASTrGARD (4), Cables, Spare Tubing, Inflation Bag
• Warranty: 90 Days

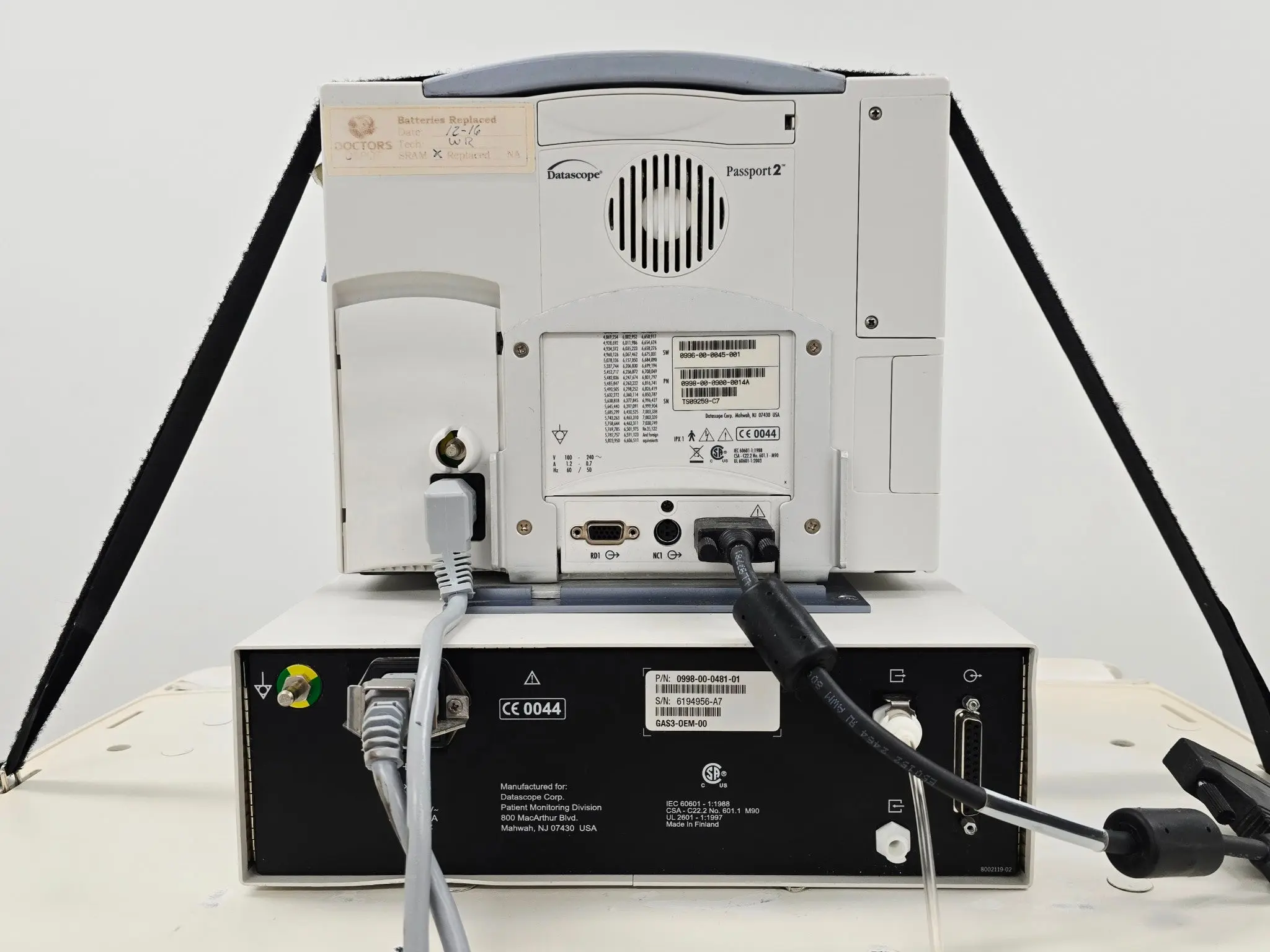

Datascope Passport 2
• P/N: 0998-00-0900-0014A
• S/W Version: 0996-00-0045-001

Gas Module SE
• P/N: 0998-00-0481-01

The GE Datex‑Ohmeda Aespire 7900 is a high‑performance, compact anesthesia workstation integrating advanced ventilator technology (SmartVent 7900) with a streamlined breathing system. Its design emphasizes responsiveness, safety, and workflow efficiency: the Advanced Breathing System (ABS) has a relatively low internal volume (≈ 2.7 L) and minimal tubing/connections, enabling rapid response to changes in fresh gas flow and reducing the risk of leaks or disconnections. The ventilator supports a wide spectrum of modes—from volume control and pressure control to assisted modes like SIMV and PSVPro (with apnea backup). Smart alarms guide clinicians to specific parameters, and features like fresh gas flow compensation and dual flow tubes help to maintain accuracy, especially during low-flow anesthesia.

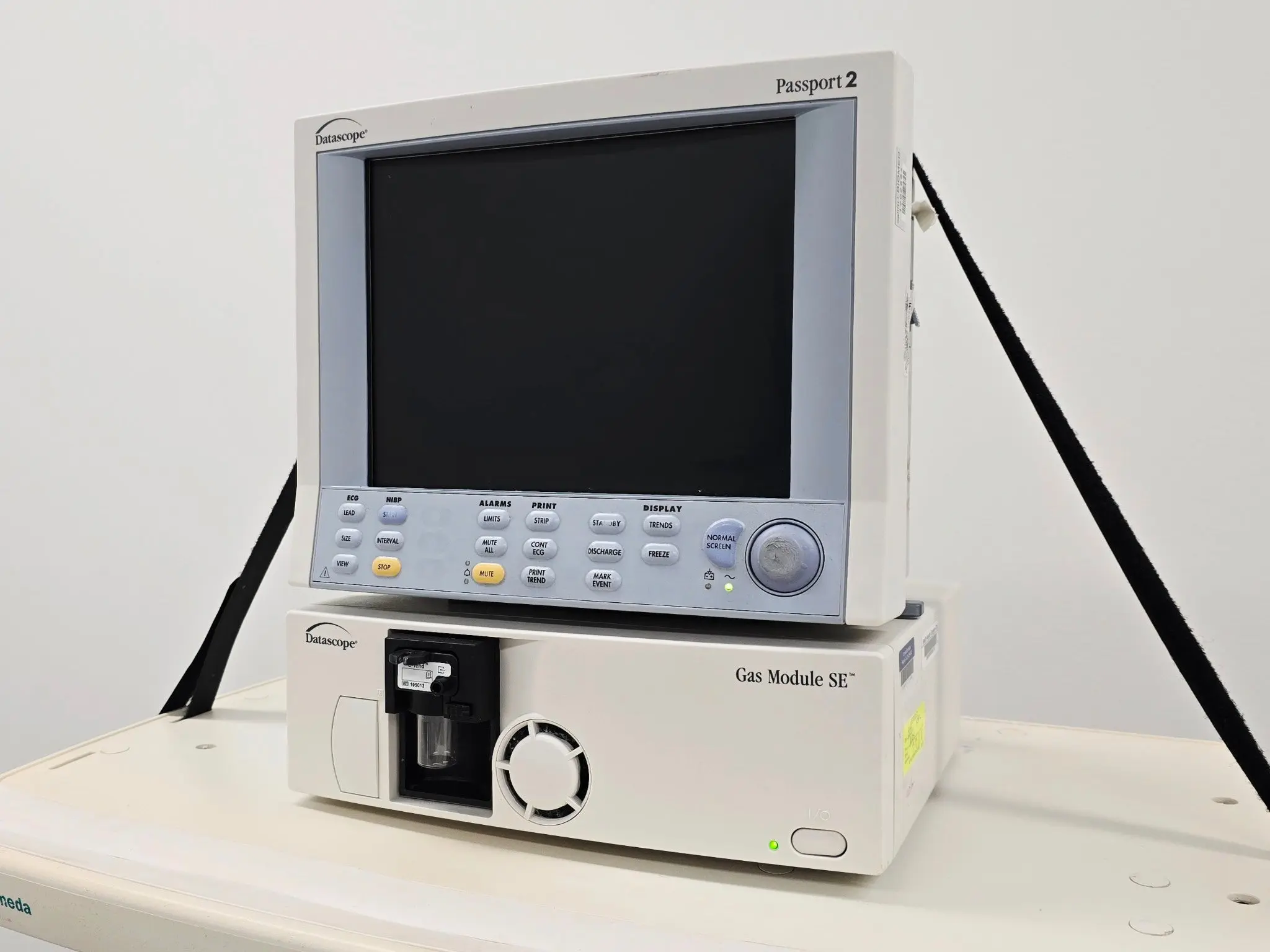

Coupling this anesthesia machine with the Datascope Passport 2 monitor (enhanced via the Gas Module SE) produces a unified platform for both ventilation and intraoperative monitoring. The Passport 2’s 10.4″ color display can present up to six waveforms along with large numerical readouts, and the modular architecture allows for expansion—such as invasive pressure monitoring, ST/arrhythmia analysis, and ETCO₂. With the Gas Module SE integrated, the monitor can deliver continuous breath-by-breath analysis of O₂, CO₂, N₂O, and up to five anesthetic agents, providing comprehensive gas management in real time. Optional spirometry further augments the system’s capabilities by assessing airway pressures and volumes directly at the patient interface.

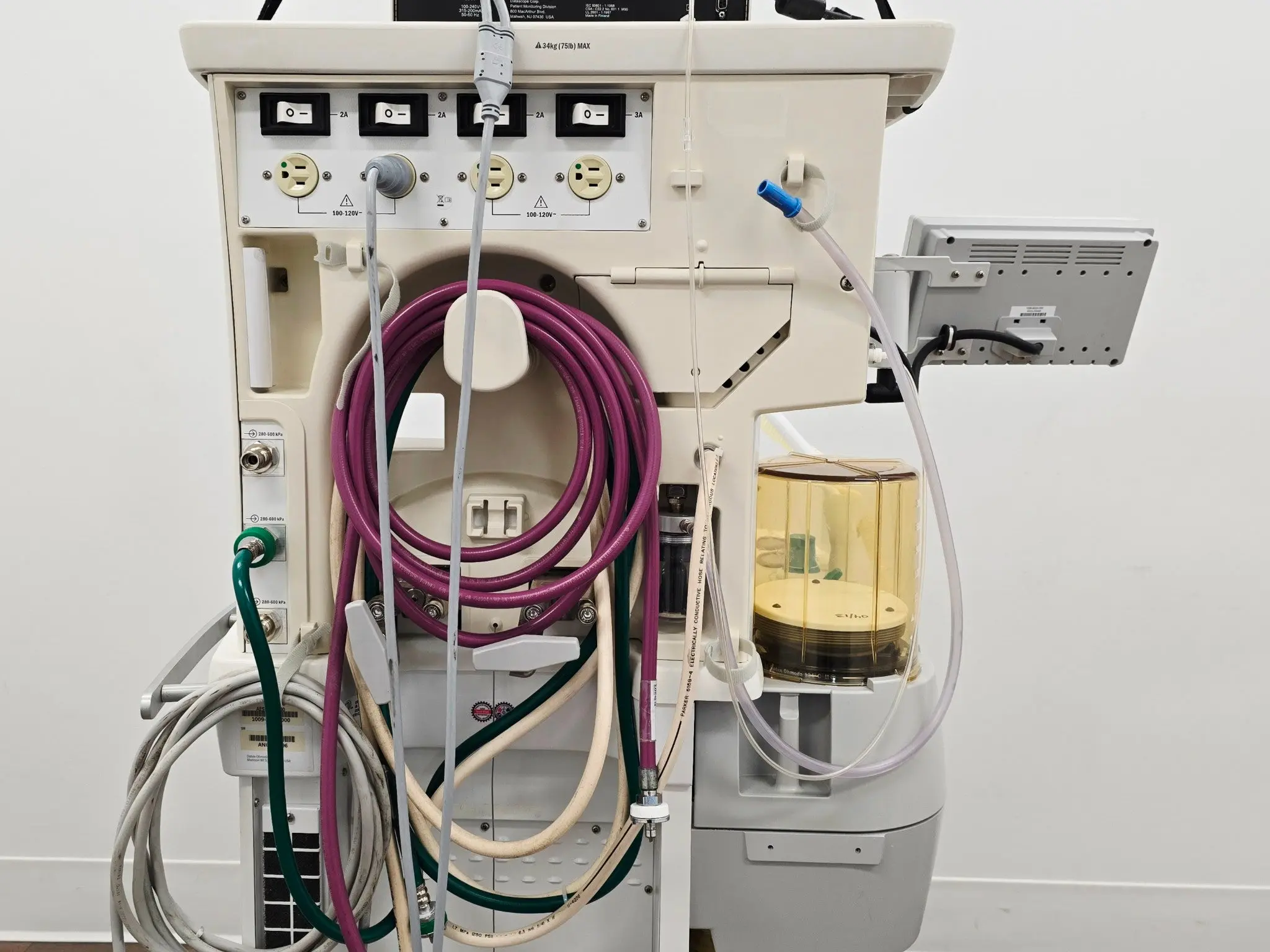

From a workflow and usability lens, this integrated system offers a streamlined footprint suitable for modern operating rooms. Cable and hose management is a focus in the Aespire’s layout, and features like tool-free disassembly of the ABS, autoclavability, and removable absorbers simplify maintenance. The modular, flexible monitoring design of the Passport 2 allows for upgrades and customization to match institutional protocols. Together, the Aespire 7900 with Passport 2 + Gas Module SE offers a powerful, flexible, and efficient solution for delivering anesthetic care with tightly integrated ventilation and gas monitoring.

This medical equipment item has been certified by a service entity skilled or trained to work specifically on this type of device. The certification process may involve repair with replacement parts, calibration, and the periodic maintenance recommended by the original manufacturer. Additionally, cosmetic work and cleaning may have been performed to enhance the visual appeal of the equipment. This ensures that the equipment not only meets operational standards but also maintains a visually pleasing appearance.
