Karl Storz 28172HK Holding Socket Clamp with Articulated Stand L-Shaped

Karl Storz Holding System | L-Shaped Articulated Stand | 28172HK

The Karl Storz 28172HK holding system is a mission-critical mechanical support platform designed for the 2026 standards of minimally invasive and microsurgical procedures. This set provides a rigid, yet highly adjustable foundation for supporting endoscopes, VITOM® exoscopes, and various surgical instruments, allowing for stable, "hands-free" visualization and precise operative positioning.

The system is built around the L-shaped articulated stand, which utilizes a mechanical tensioning principle to lock multiple joints simultaneously. This ensures that once the desired position is achieved, the optical or surgical payload remains vibration-free and perfectly aligned throughout the duration of the case.

Key Performance Features

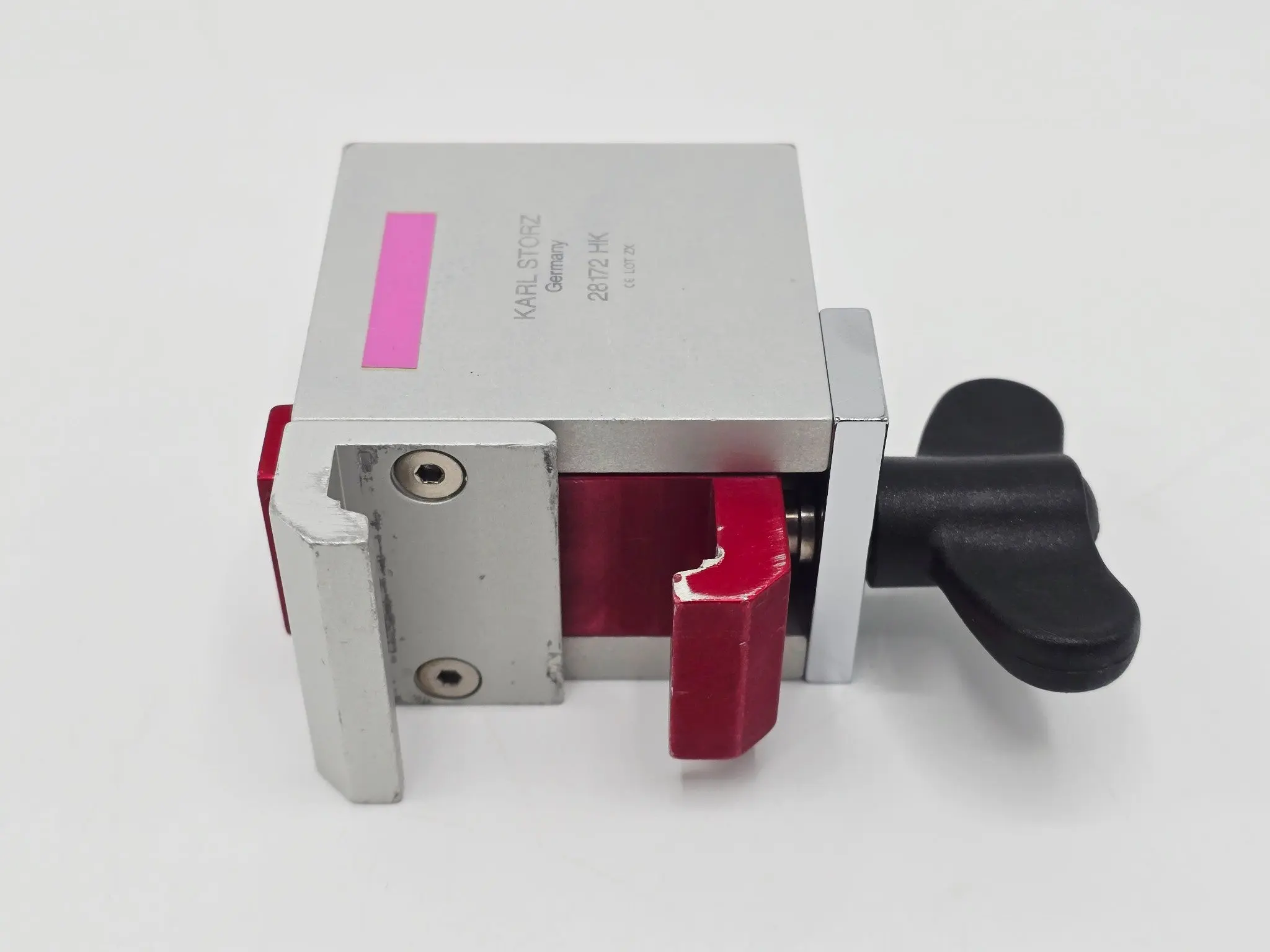

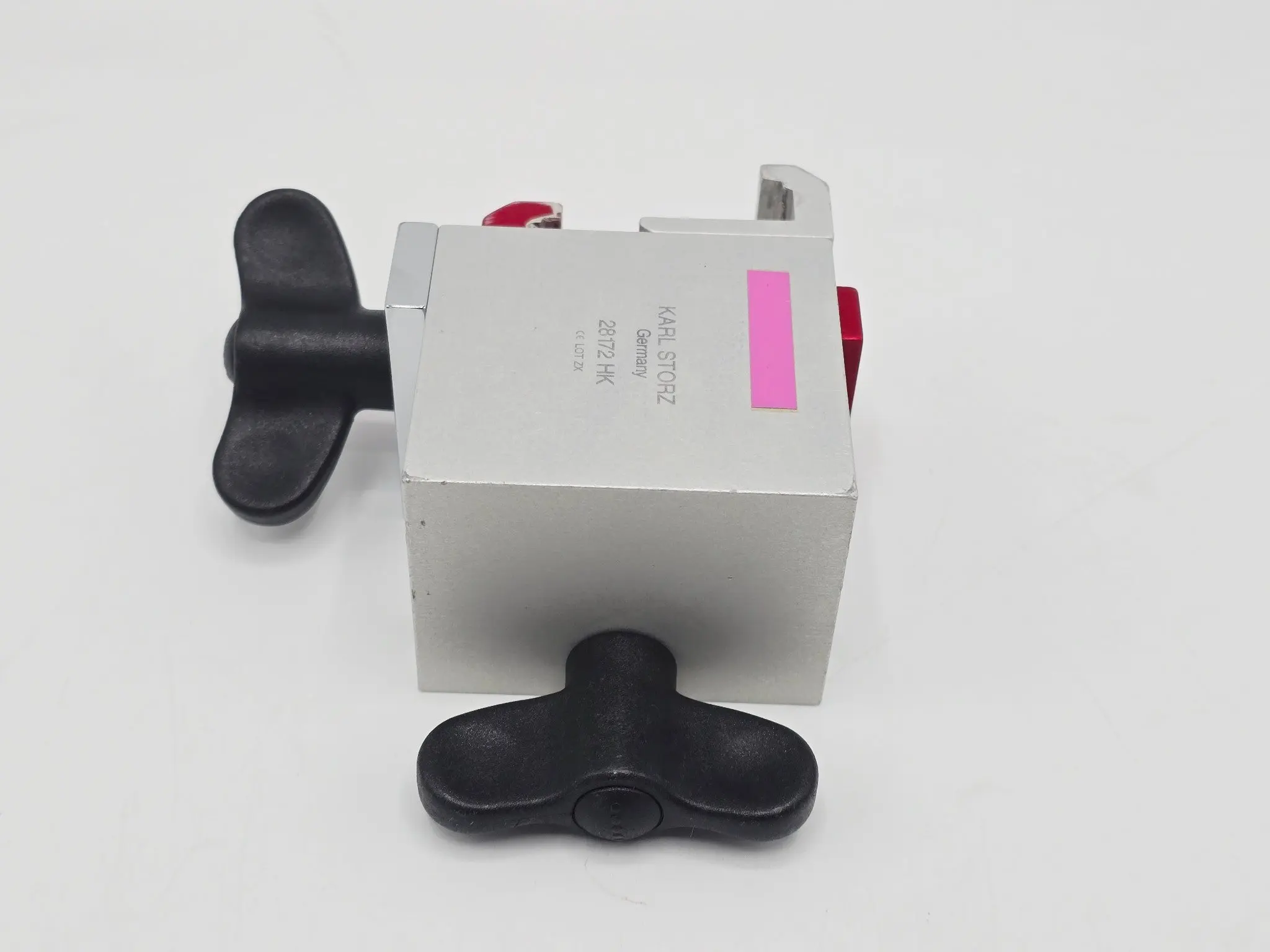

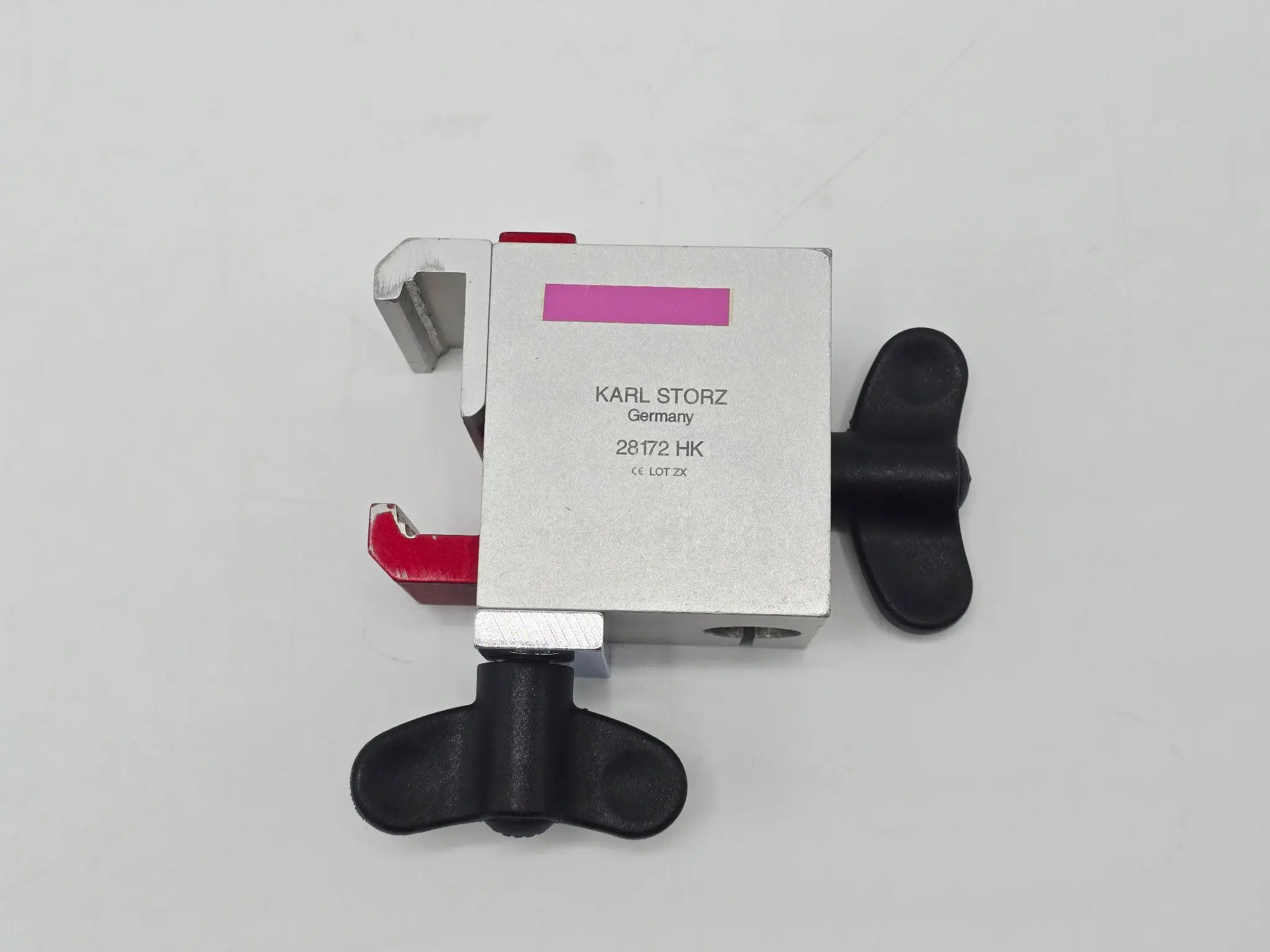

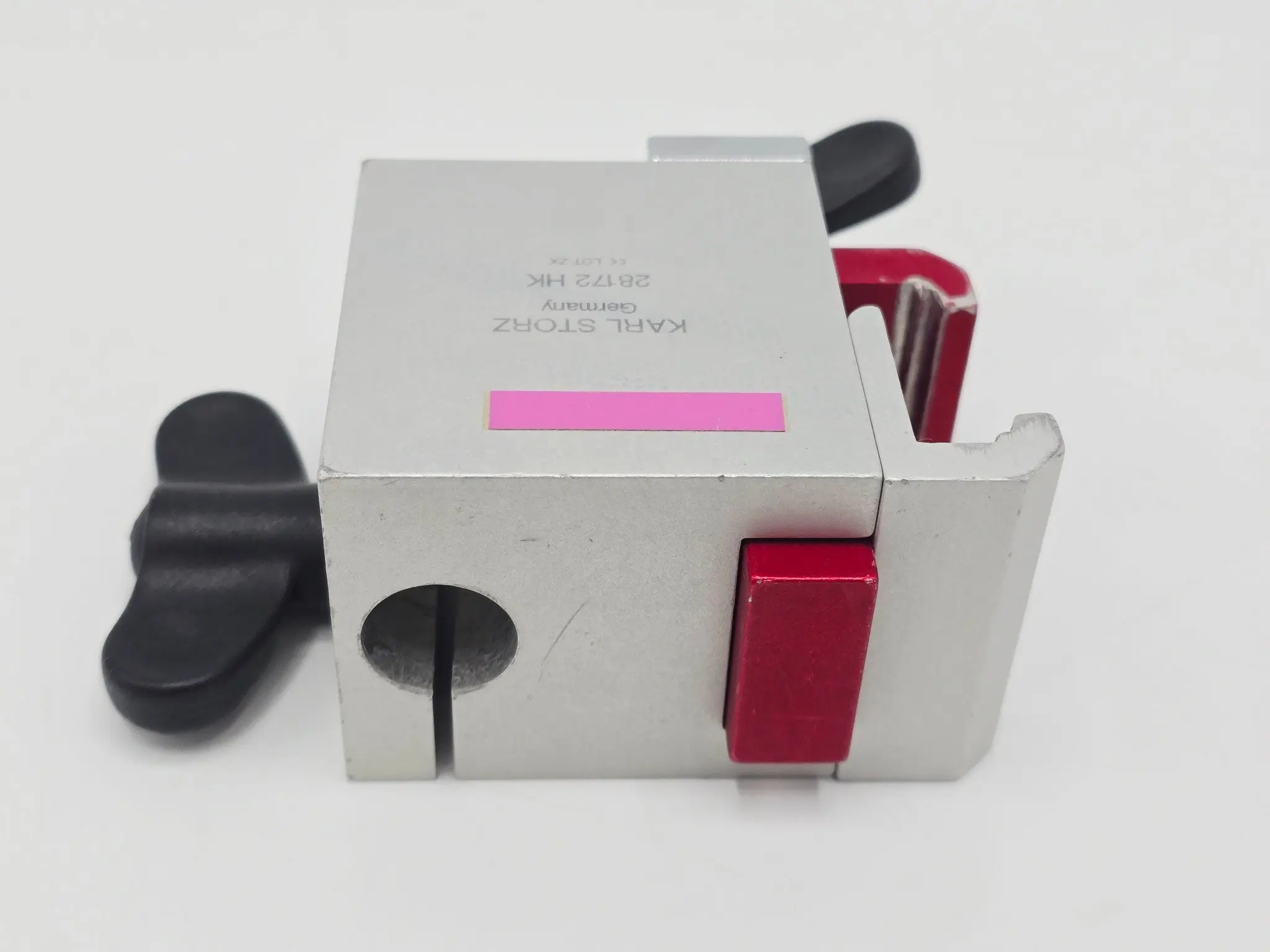

• Universal Rail Compatibility (28172HK): The holding socket is engineered to mount securely to standard OR table side rails. It is compatible with both European and US rail standards (ranging from 25 x 10 mm to 35 x 8 mm), ensuring seamless integration into any surgical theater.

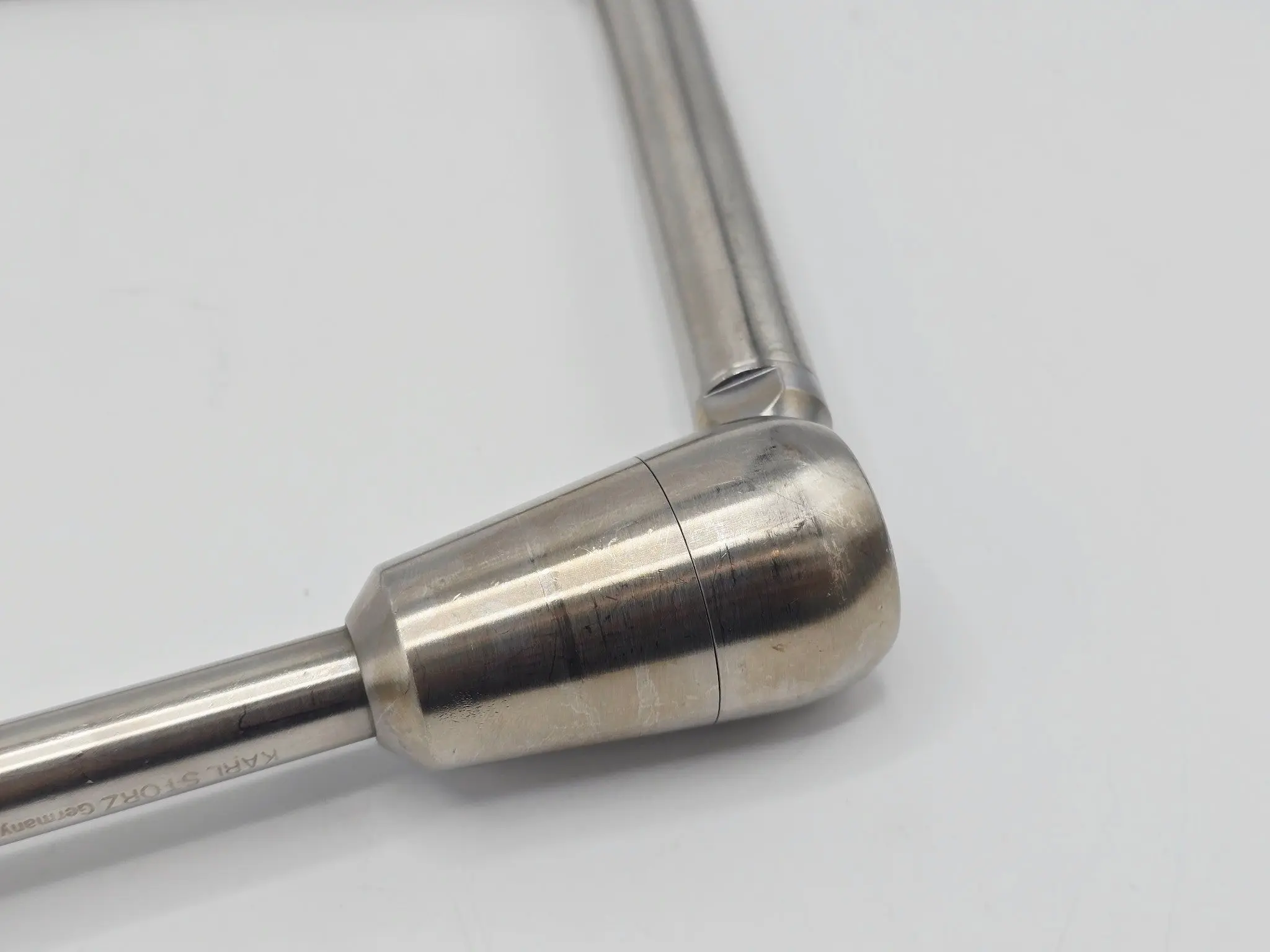

• L-Shaped Articulated Stand: The L-shaped geometry provides an optimal "reach-over" profile, allowing the stand to clear the sterile field and patient anatomy while positioning the instrument exactly at the surgical site.

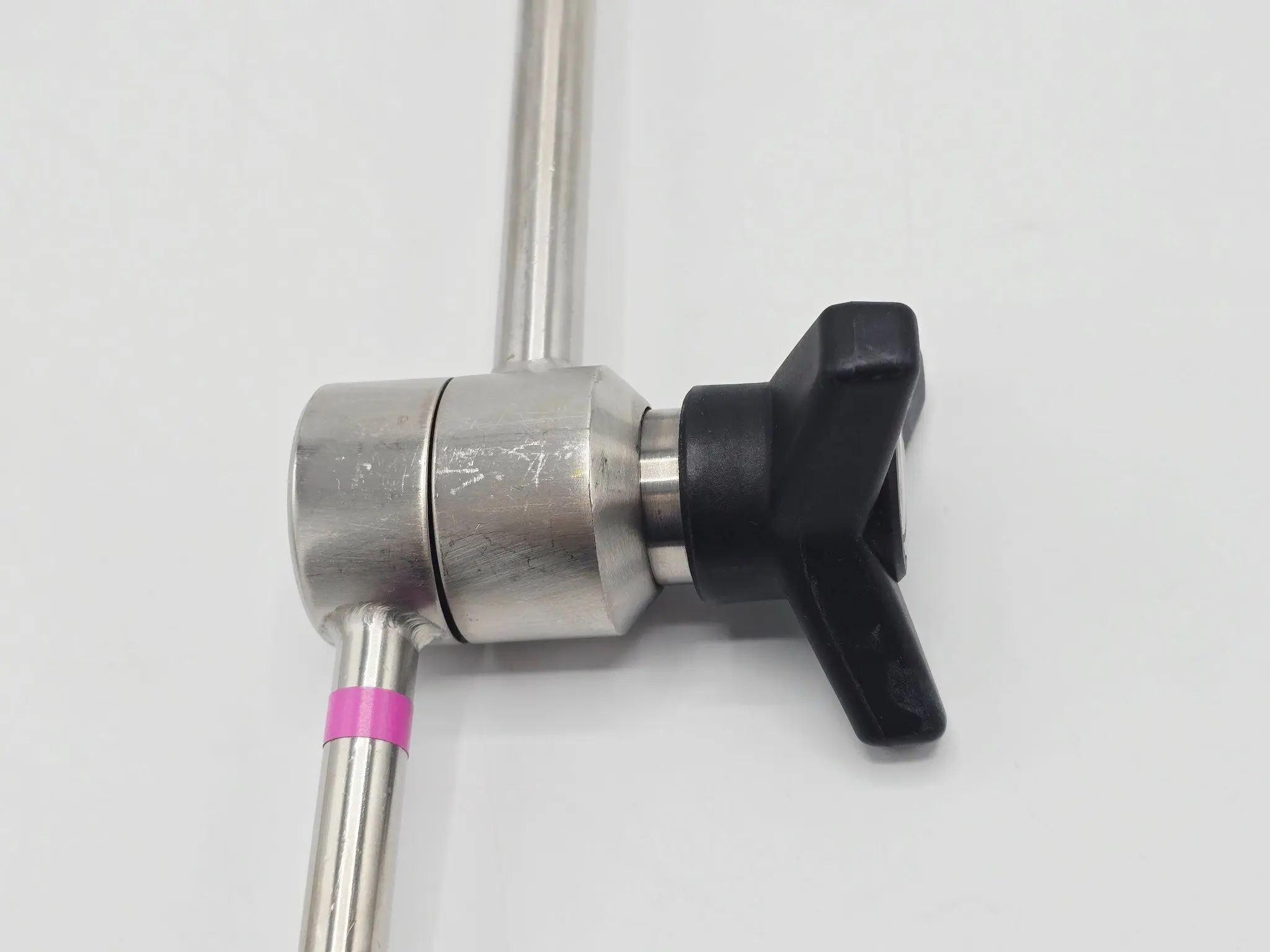

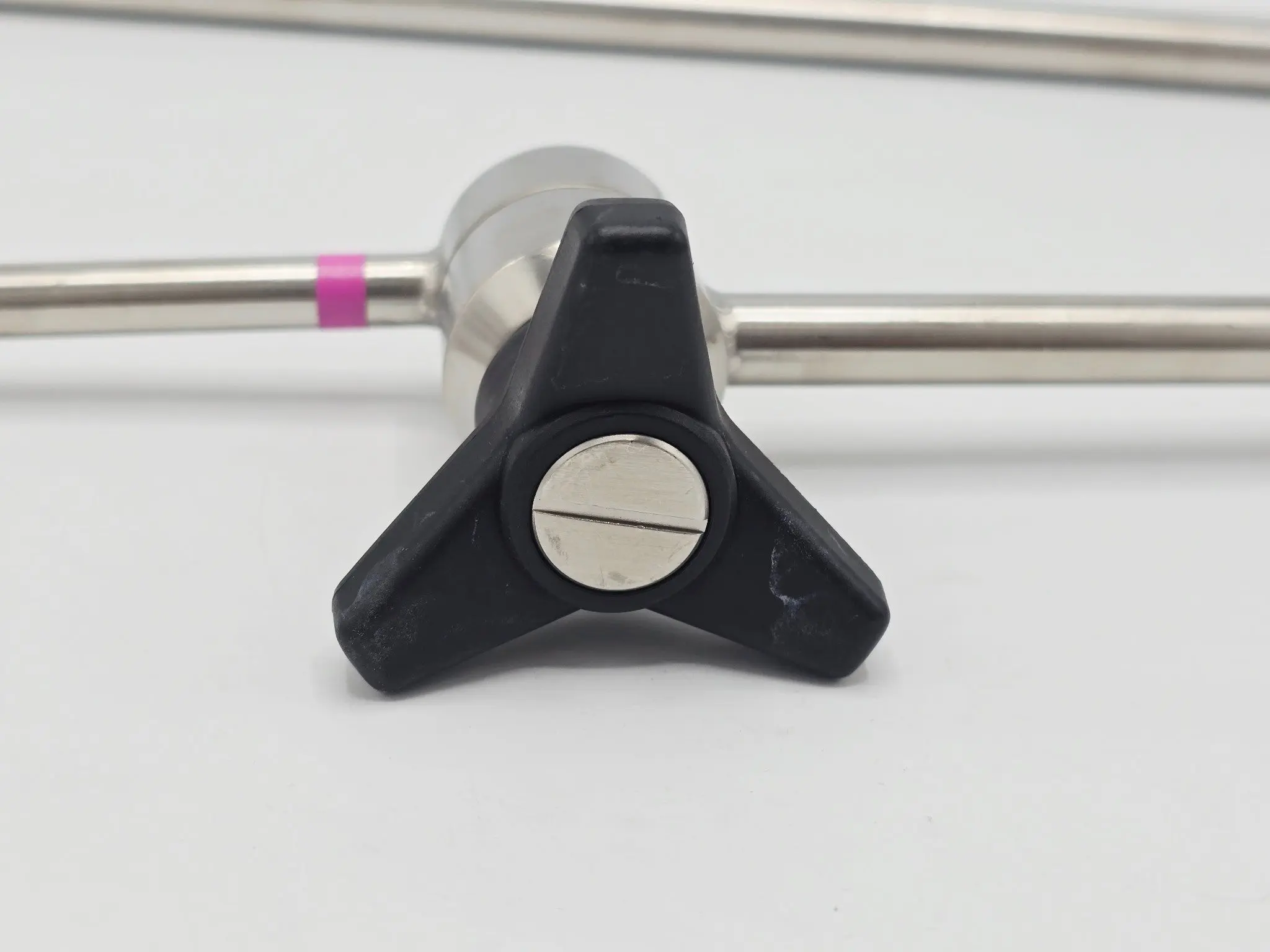

• Mechanical Tensioning: A central tightening knob or lever controls all joints of the articulated stand simultaneously. This "one-turn" locking mechanism allows for rapid intraoperative adjustments and rock-solid stability.

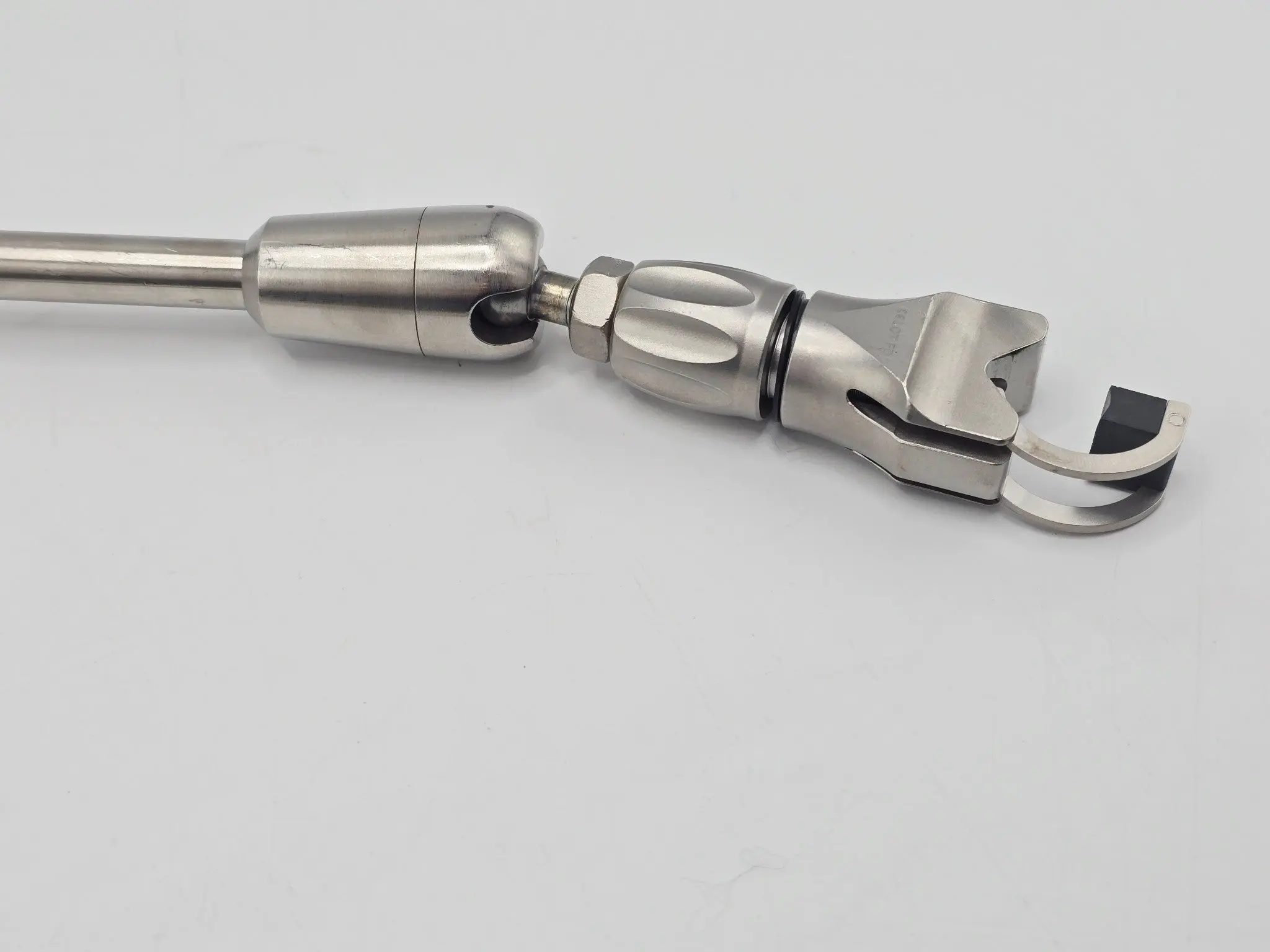

• KSLOCK Mechanical Interface: Features the proprietary Karl Storz KSLOCK interface, a modular connection system that allows for the rapid, secure attachment of various clamping jaws, endoscope holders, and VITOM® exoscope components.

• Extended Range of Motion: With a stand height of 48 cm and a swivel range of 52 cm, this assembly provides significant architectural flexibility for neurosurgical, spinal, and deep-cavity laparoscopic procedures.

Technical Specifications

• Manufacturer: Karl Storz (Made in Germany)

• Holding Socket Code: 28172HK

• Stand Type: Articulated Stand, L-shaped

• Mechanical Interface: KSLOCK

• Height: 48 cm

• Swivel Range: 52 cm

• Compatibility: US & European OR Rails (25x10 to 35x8)

• Material: Medical-grade stainless steel and high-tensile alloys (Autoclavable)

Clinical & Institutional Advantages

• Optimized Visualization: By eliminating the micro-movements associated with handheld camera navigation, this stand is essential for high-magnification procedures (e.g., VITOM® 3D) where even slight vibrations can disrupt the surgical view.

• Reduced Surgeon Fatigue: Relieves the surgical assistant or primary surgeon from the physical demand of maintaining static instrument positions during long, complex cases.

• Sterilization Efficiency: The articulated elements and the included stainless steel tray are designed for high-turnover environments, supporting standard autoclaving protocols for rapid instrument reprocessing.

Ideal Applications

• VITOM® Exoscopy: Supporting 2D and 3D exoscope systems for open and microsurgical procedures.

• Neuro & Spine Surgery: Stable positioning of endoscopes for tubular discectomies or intracranial visualization.

• Gynecology & Urology: Supporting camera systems and irrigation/suction instruments during specialized laparoscopic procedures.

Condition & Quality Assurance

• Status: Used — Excellent Condition.

• Integrity: The mechanical tensioning system has been verified for maximum holding strength; joints lock securely without slipping. The KSLOCK interface is clean and ready for modular attachments.

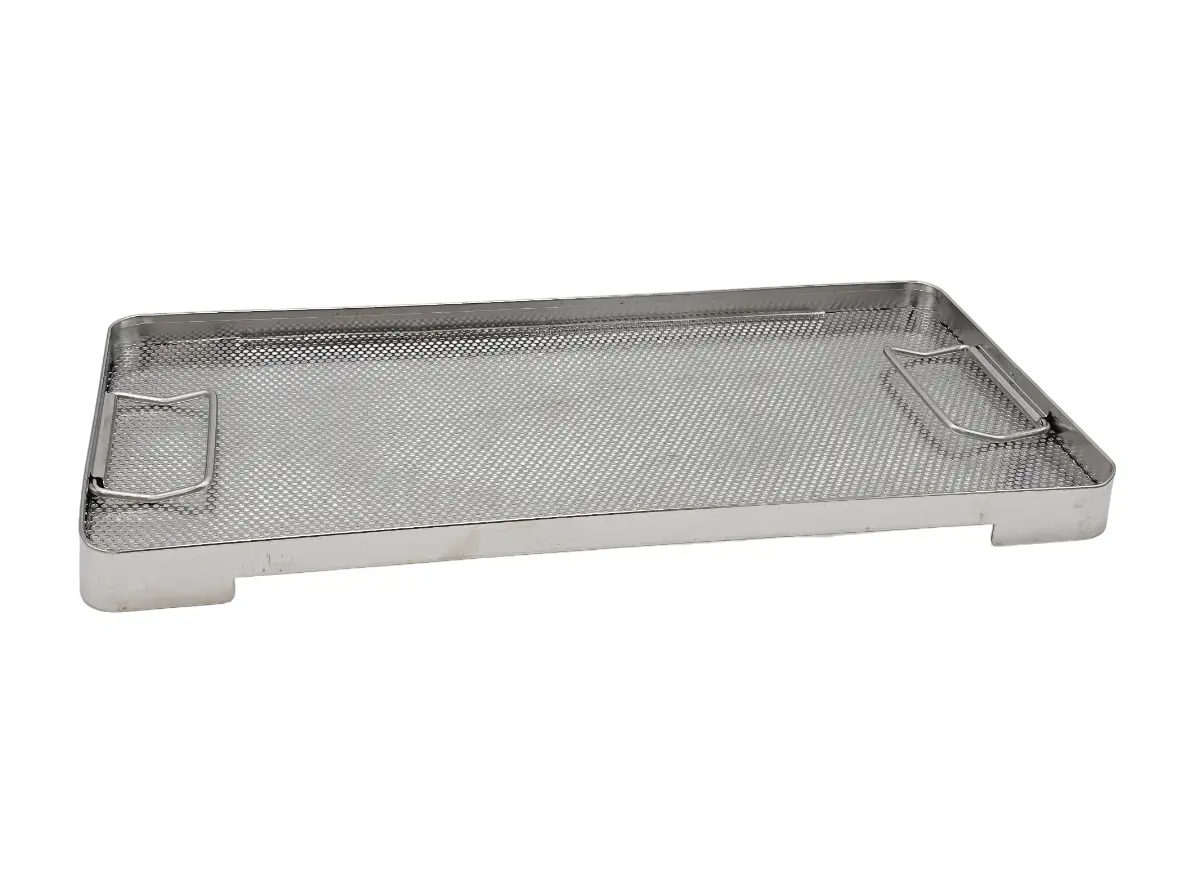

• Packaging: Provided with a dedicated Karl Storz stainless steel tray (20" x 10.5") for organized storage and sterilization.
