Karl Storz Cystoscopy Set 27005BA 27005CA 27026UA 27026UO w/ Tray

Karl Storz Operative Cystoscopy Set | Hopkins II Optics | 17 Fr Sheath

The Karl Storz Cystoscopy Set is a high-performance urological visualization and operative suite engineered for 2026 clinical standards. Built around the industry-leading Hopkins II rod-lens system, this set provides unrivaled image clarity, light transmission, and field of view for diagnostic and therapeutic bladder procedures.

This configuration is specifically designed as an "Operative" set, including both 30° and 70° telescopes to navigate the bladder neck and dome with ease. Complemented by a 17 Fr sheath, flexible forceps, and monopolar coagulation accessories, this set is prepared for high-precision diagnostic visualization and minor surgical interventions.

Key Performance Components

• HOPKINS II Telescopes: Includes both the 27005BA (30°) for general orientation and the 27005CA (70°) for lateral wall and bladder neck visualization. The 4mm diameter ensures maximum light input for HD camera systems.

• 17 Fr Sheath System (27026UA): A versatile sheath size that balances patient comfort with an ample working channel for irrigation and accessory passage.

• Operative Versatility: Features the 27034FK Flexible Forceps and 27770B Monopolar Coagulating Electrode, allowing for immediate biopsy or hemostasis without swapping systems.

• Hopkins Rod-Lens Technology: Provides a wide-angle view and exceptional depth of field, reducing the need for constant refocusing during the procedure.

Technical Specifications

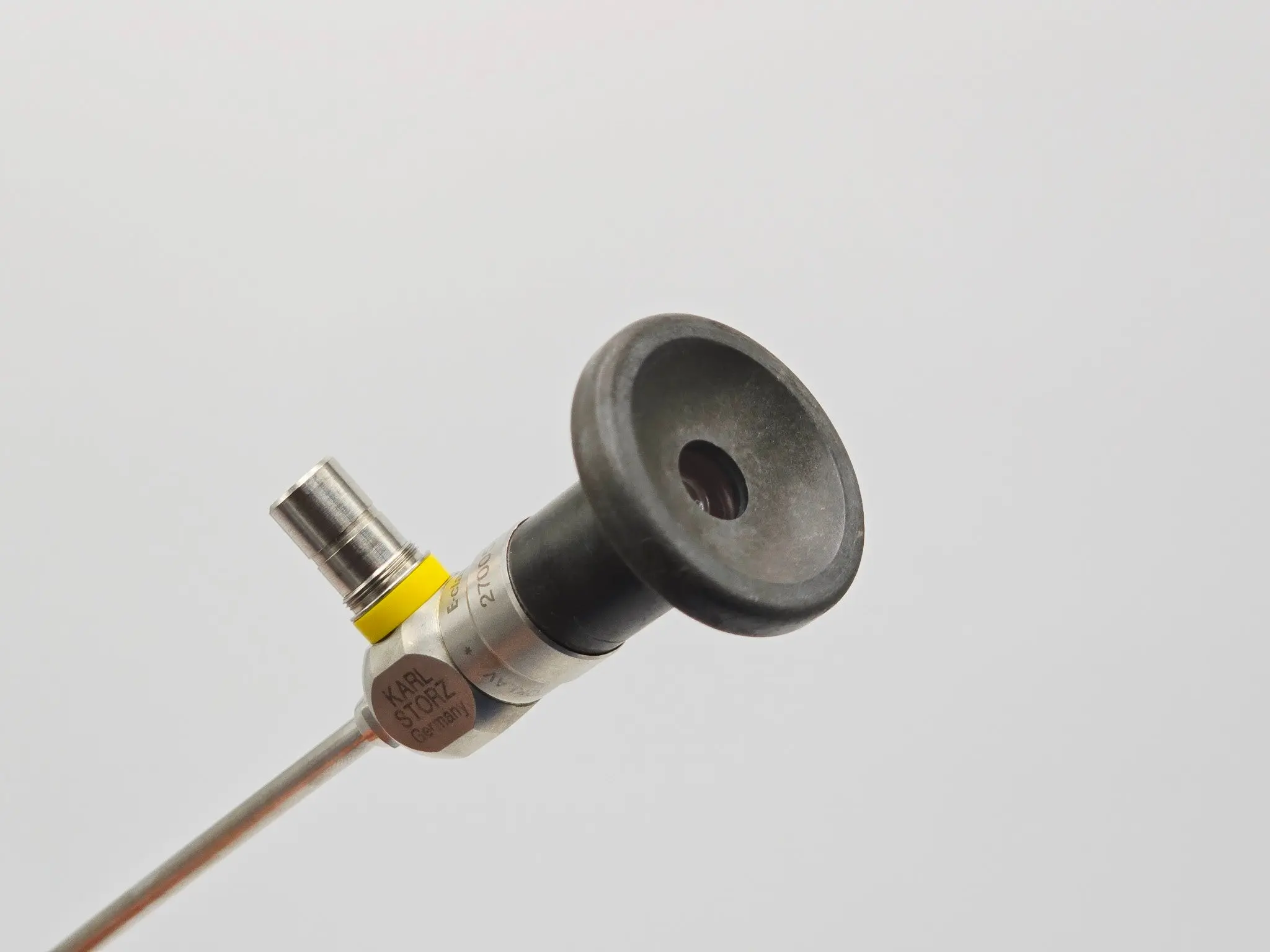

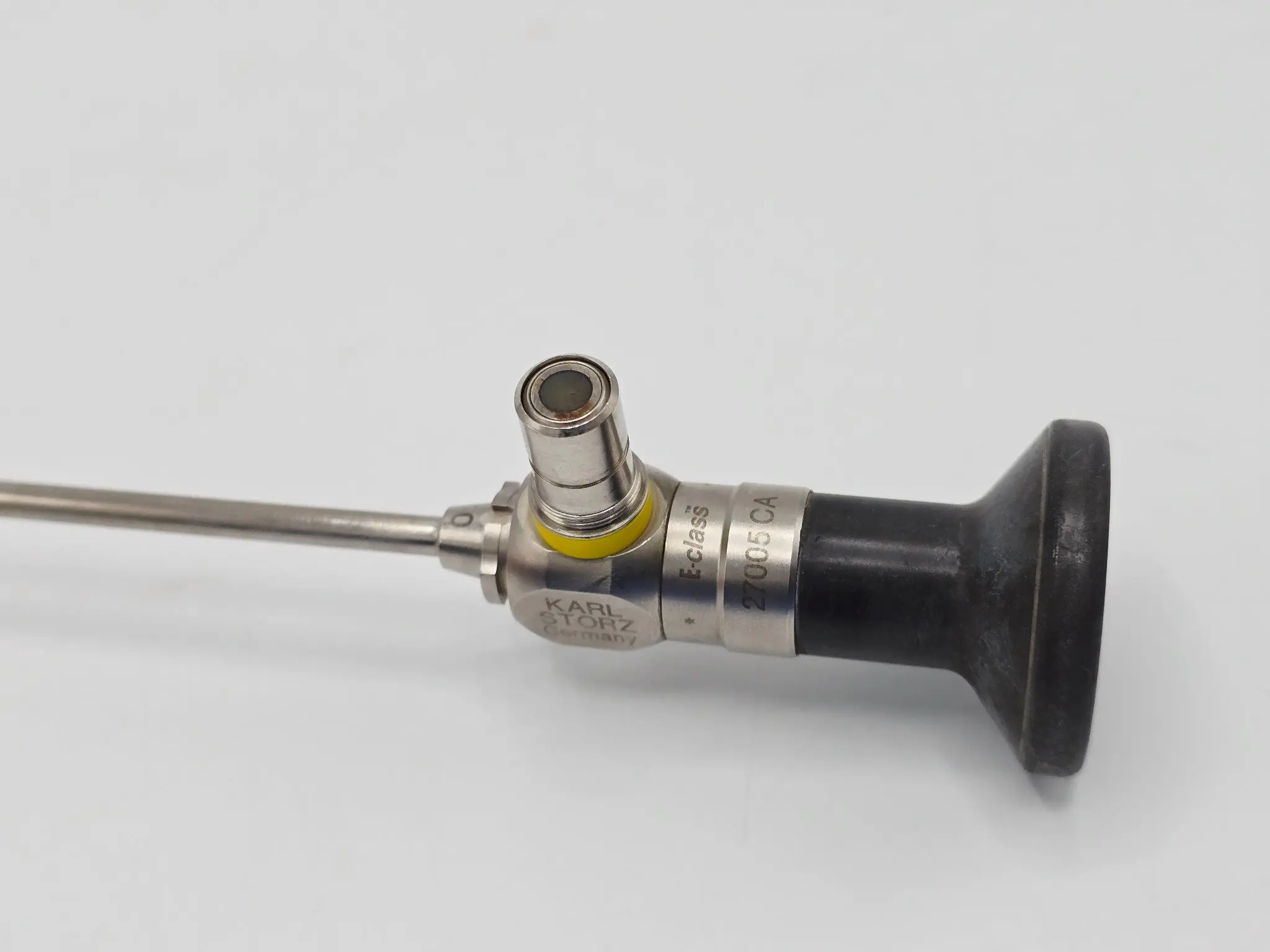

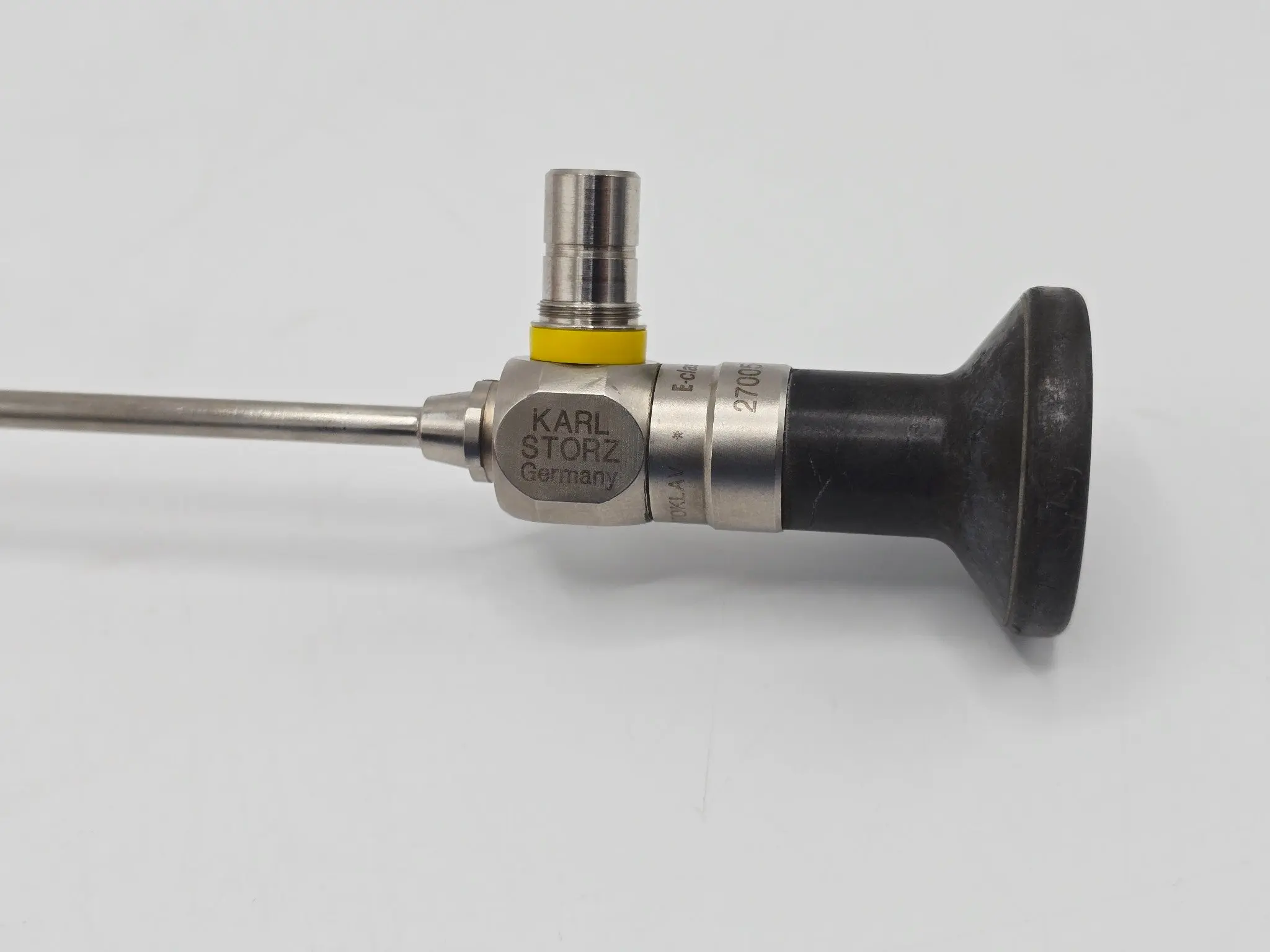

• Telescope 1: 70°, 4 mm, 30 cm (Hopkins II 27005CA)

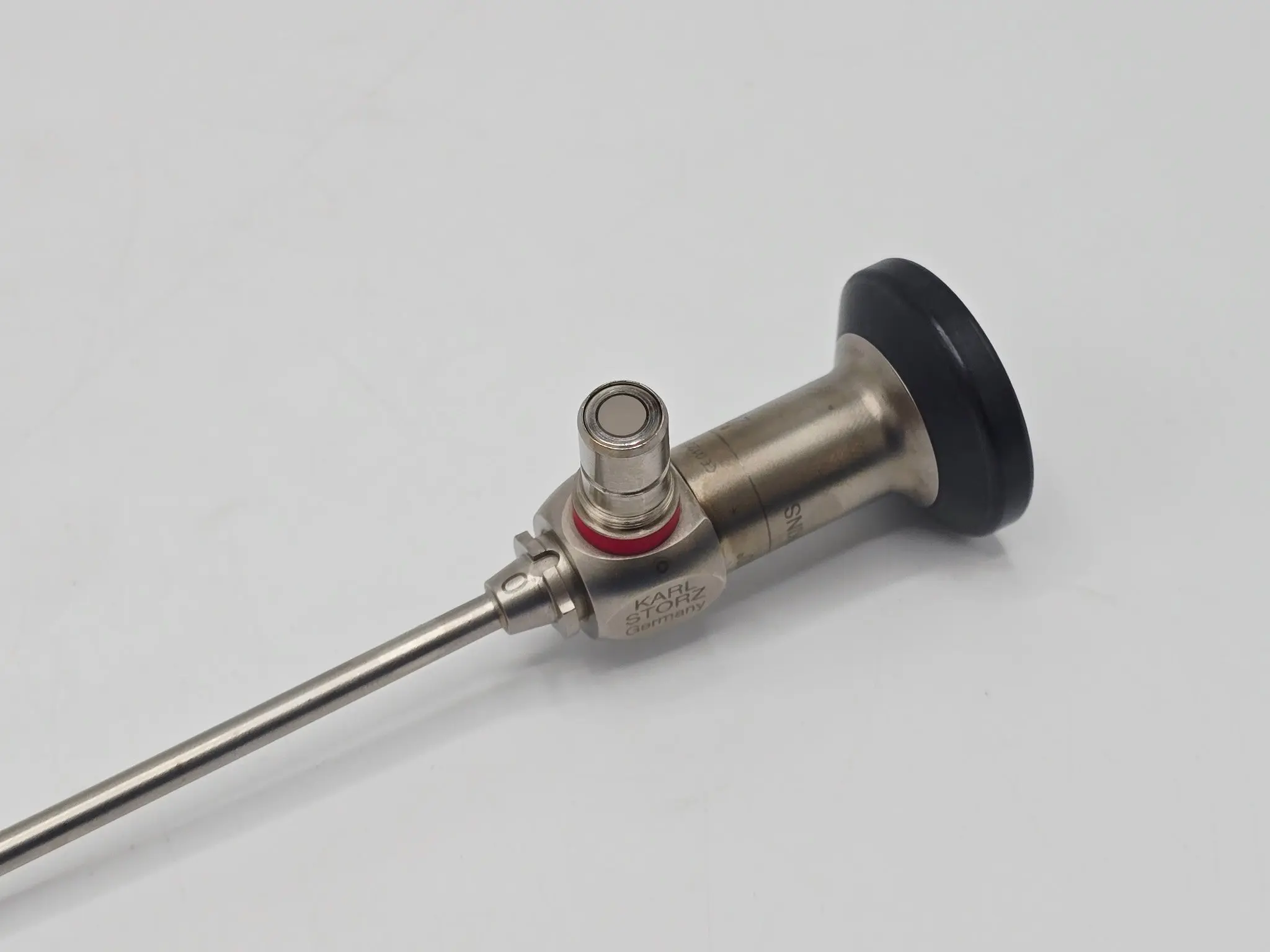

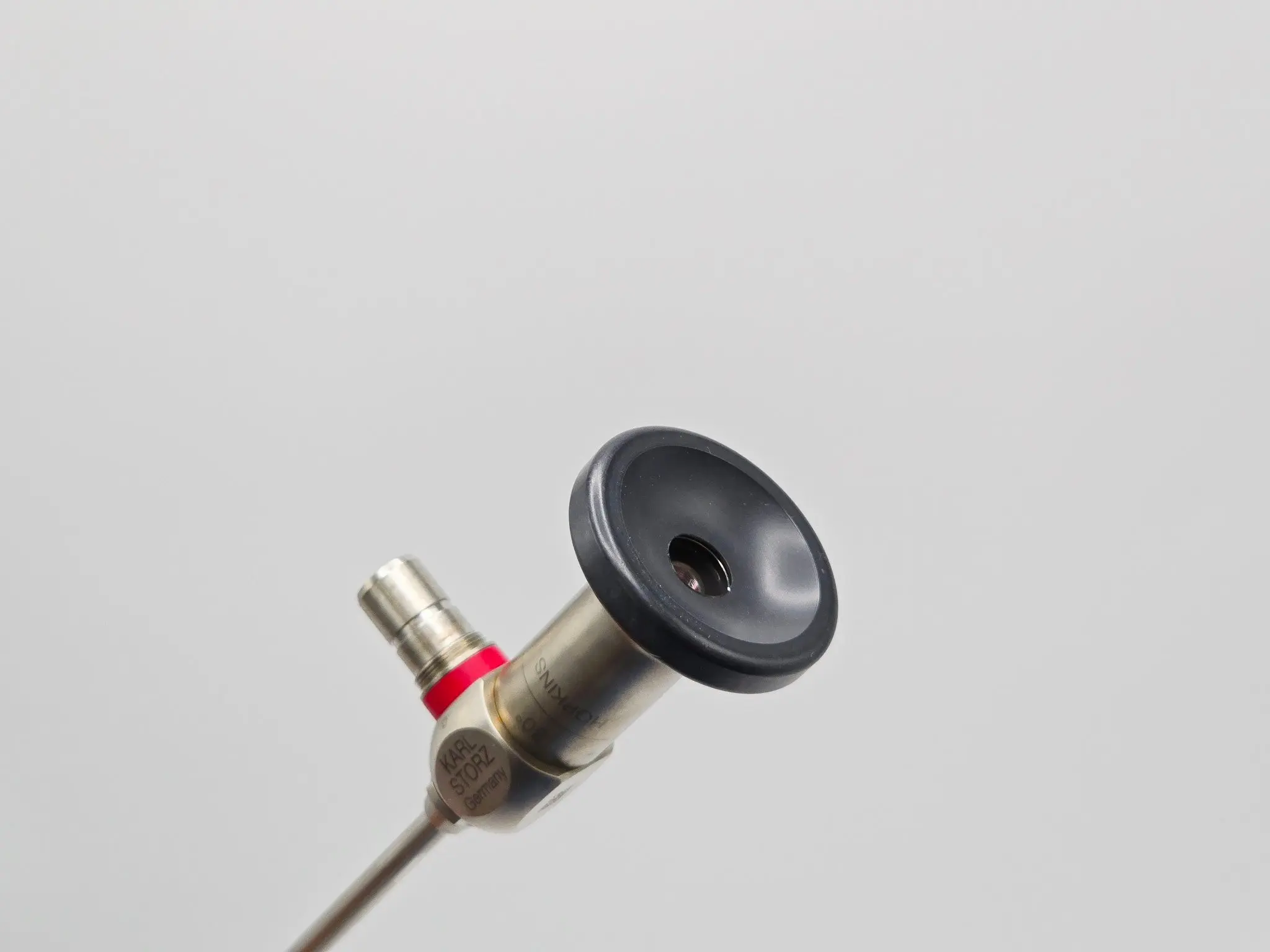

• Telescope 2: 30°, 4 mm, 30 cm (Hopkins 27005BA)

• Sheath Size: 17 Fr (22 cm Working Length)

• Electrode: 5 Fr Monopolar Ball/Button (45 cm)

• HF Cord: 300 cm Unipolar (26006M)

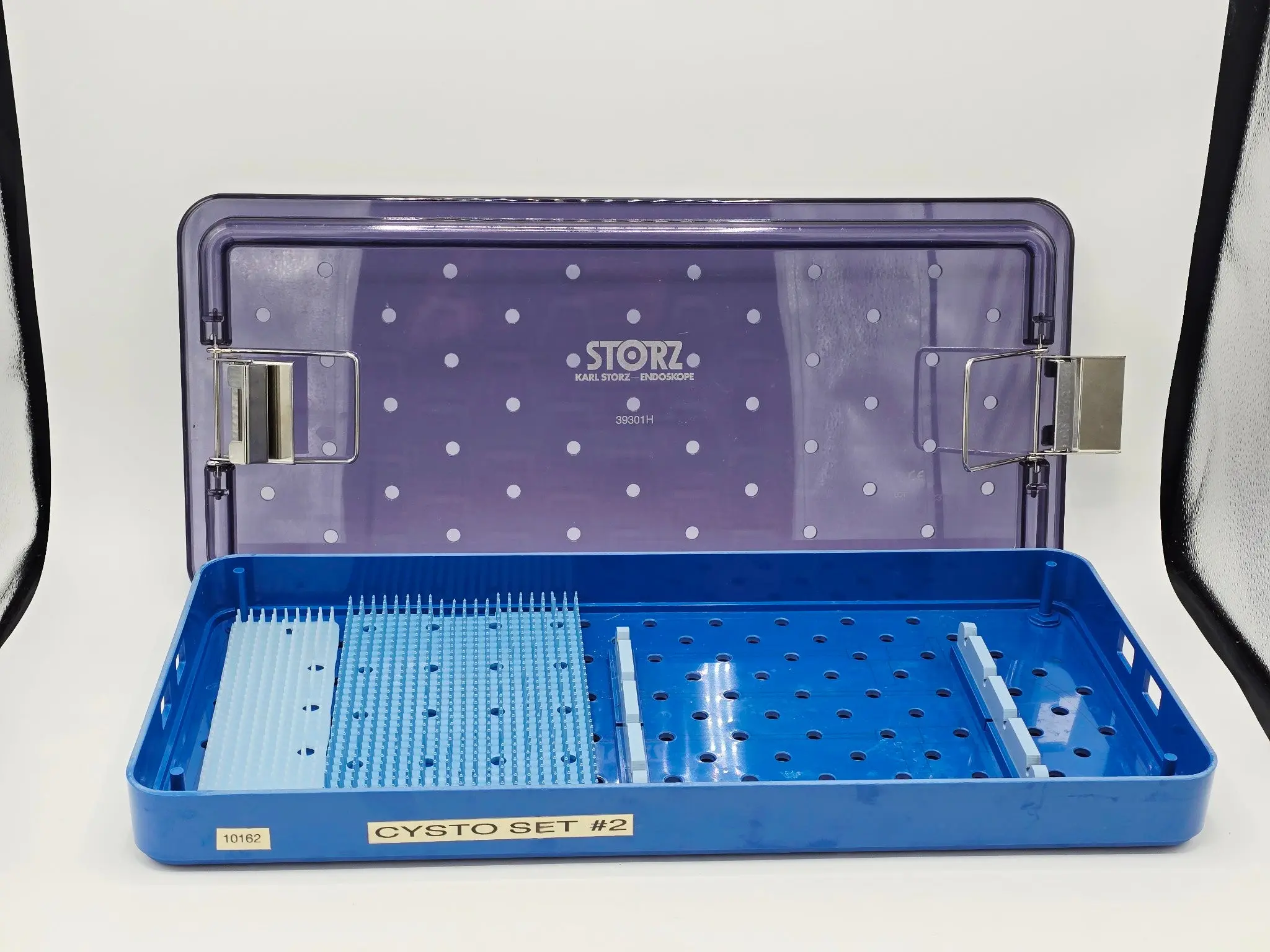

• Tray Dimensions: 20.5" x 10" x 2" (Karl Storz 39301H)

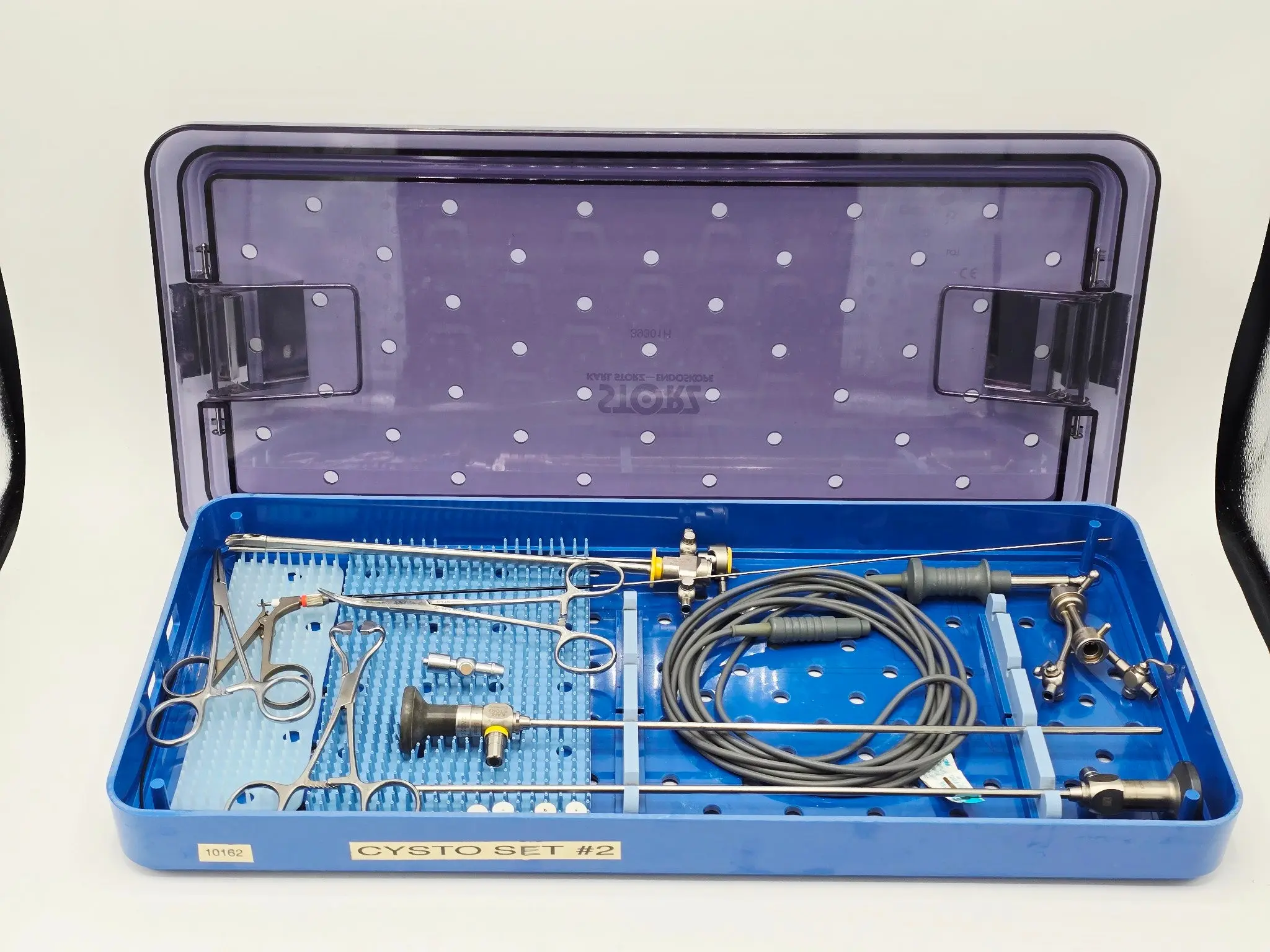

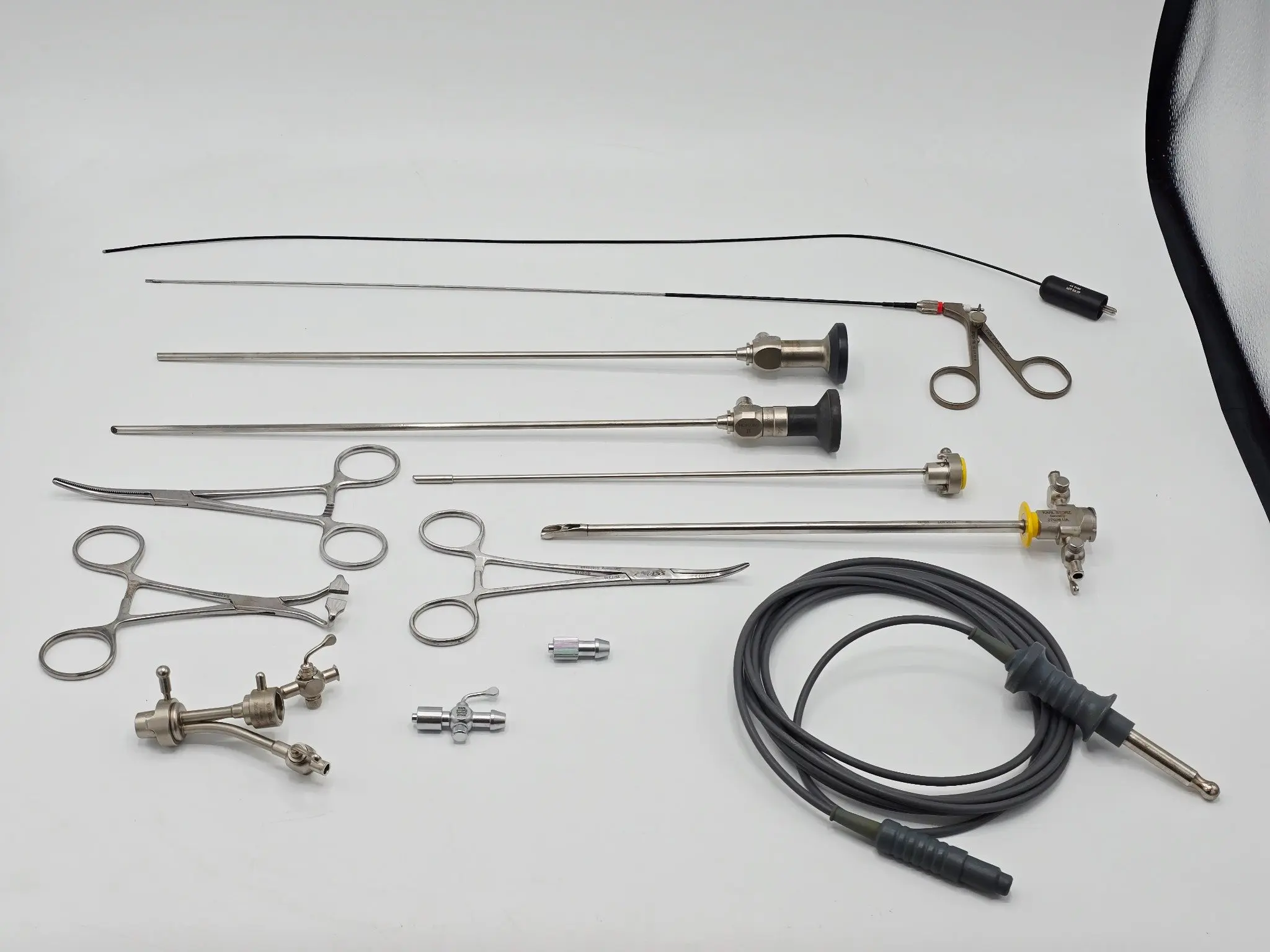

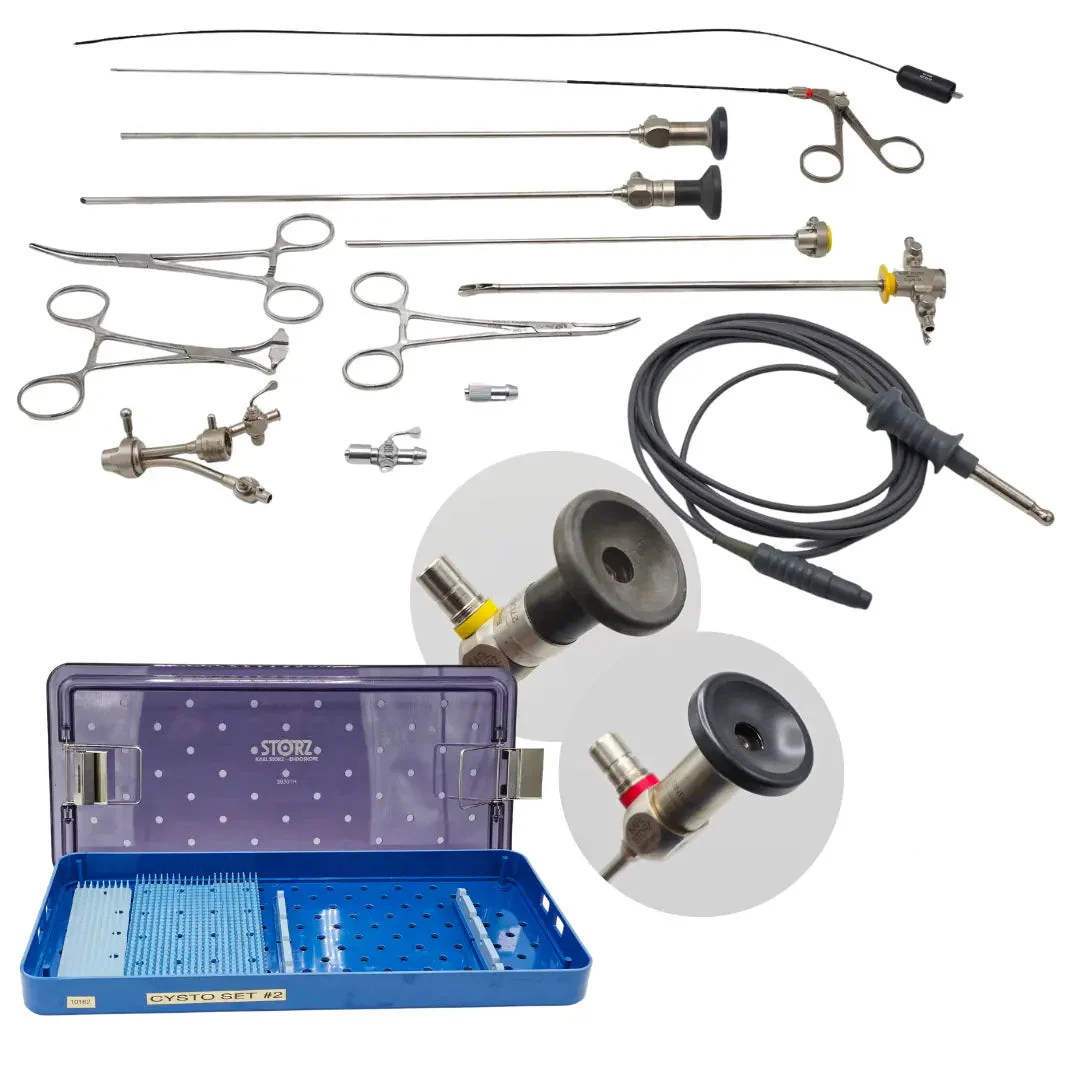

Included Instrumentation

• Rigid Optics: 30° and 70° Karl Storz Hopkins Telescopes

• Sheath Assembly: 17 Fr Sheath (27026UA) with 27026UO Obturator

• Accessory Bridge: Telescope bridge with LUER-lock connectors

• Operative Tools: 40 cm Flexible Forceps (27034FK) & Monopolar Electrode (27770B)

• General Surgical Tools: Rochester-Pean Forceps (Aesculap), Towel Forceps (V. Mueller), and Crile Artery Forceps (SSI Ultra)

• Sterilization: Karl Storz 39301H Perforated Sterilization Tray

Clinical Advantages

• Optimized Visualization: Clear, high-contrast optics with no visible cracks or haze, ensuring reliable diagnostics in the OR or clinic.

• Streamlined Workflow: The included telescope bridge and LUER-lock connectors allow for rapid transition between diagnostic and operative modes.

• Ergonomic Integration: Standardized Storz light post and eyepiece connections ensure compatibility with virtually all modern fiber optic light cables and camera heads.

• Durable Storage: The specialized 39301H tray provides secure positioning for the delicate 4mm telescopes, significantly reducing the risk of rod-lens breakage during reprocessing.

Condition & Quality Assurance

• Status: Pre-owned — Excellent Clinical Condition.

• Optical Check: Verified clear optics; no "yellowing," haze, or internal spotting.

• Mechanical Check: All valves, stopcocks, and LUER-lock connectors move smoothly and seal properly.

• Maintenance: Well-maintained inventory with intact insulation on the HF cord and electrode.

• Sterility: Sold non-sterile; intended for sterilization via Autoclave or STERRAD prior to use.
