$18,375.00
Original: $52,500.00
-65%Atlas Copco ZT 37-MED Medical Air Compressor 2 Compressors, Dryer and Tank—
$52,500.00
$18,375.00The Story
Atlas Copco ZT 37-MED Medical Air Compressor 2 Compressors, Dual Control Dryer and Tank. These units were used for 2 months and replaced by facility due to size. Great buy!
(Medical Air Compressor)

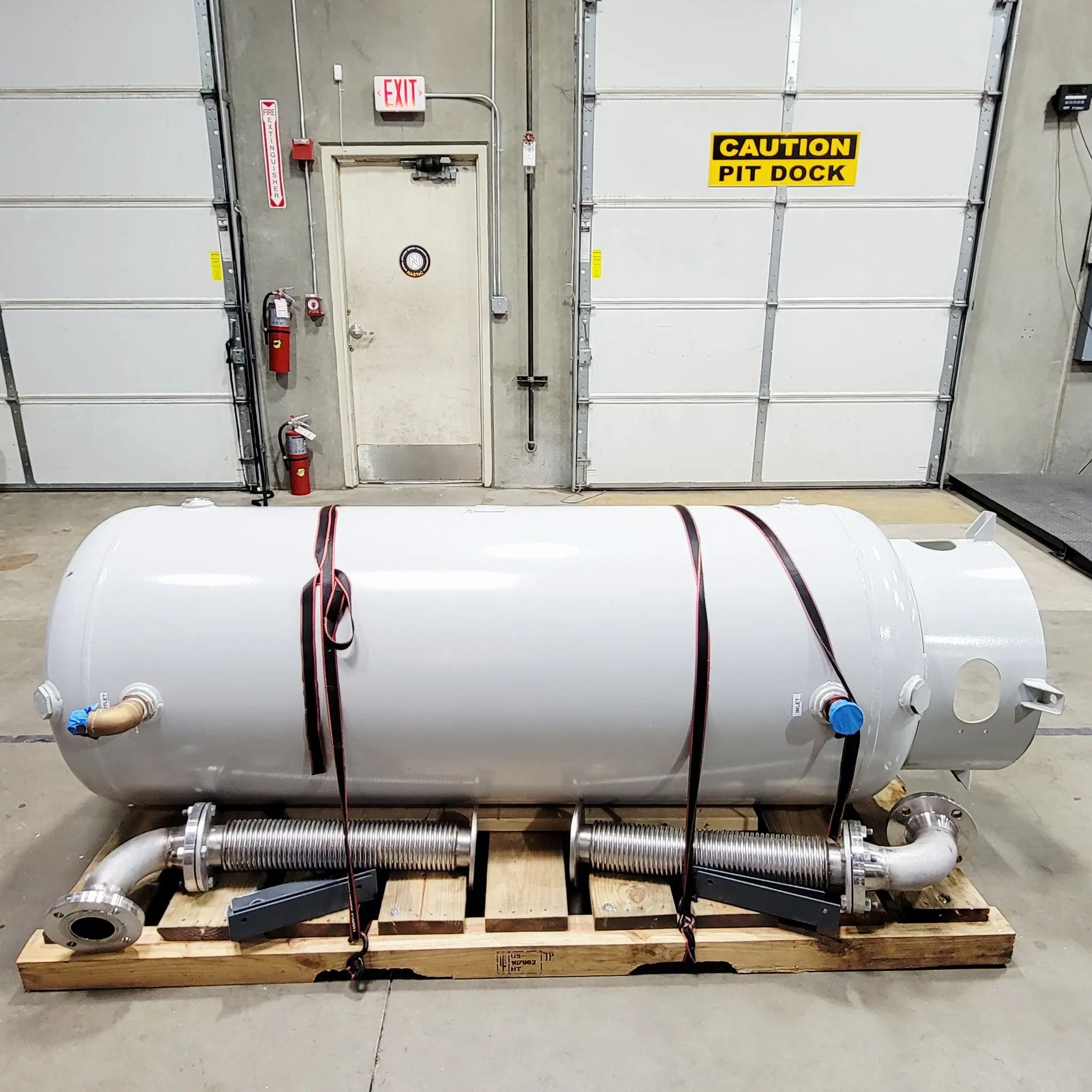

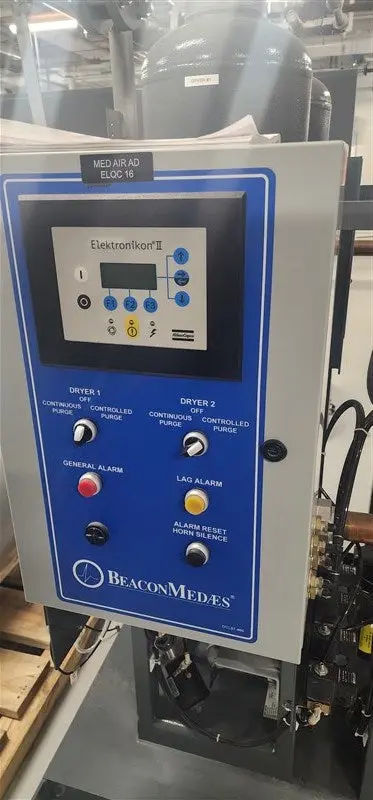

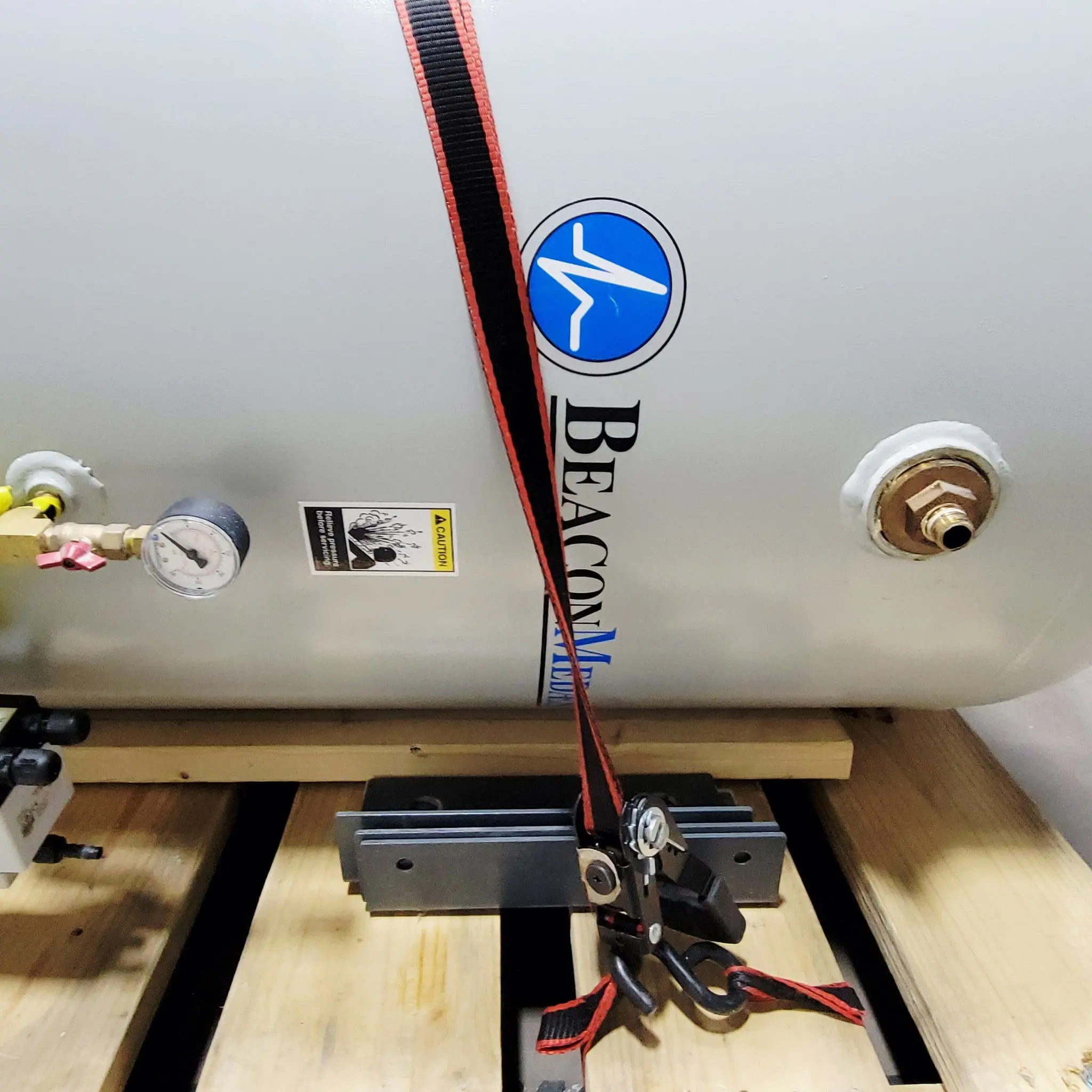

This Atlas Copco ZT 37-MED compressor system includes 2 each of the ZT 37-MED Compressors, a Tank and a stand alone Beacon Medes ZT DES Dryer. This is an oil-free rotary tooth air compressor system designed for medical or specialty applications where high air purity is critical. It is part of the ZT-MED series which caters to higher flow rate needs while maintaining oil-free operation and energy efficiency. This unit was used for 2 months and replaceed by the facility due to it being oversized for the application. It was professionally deinstalled and is staged ready to ship.
Here are some key specifications and features of the Atlas Copco ZT 37-MED:
Key Specifications:
- Cooling Method: Air-cooled. The "ZT" designation in Atlas Copco's oil-free range indicates air-cooling.
- Oil-Free Operation: Produces Class 0 certified oil-free air. This guarantees zero risk of oil contamination, ensuring the safety of critical processes and products, especially crucial in medical settings.
- Flow Rate (FAD): The ZT-MED series offers a wide flow range. Specific values for the ZT 37 VSD – 10 bar(e) (Air-cooled) Maximum model are provided as 32.5-80.5 l/s (liters per second), 2.0-4.8 m³/min (cubic meters per minute), and 68.9-170.6 cfm (cubic feet per minute).
- Working Pressure: The working pressure range for the ZT-MED series is 4 bar(e) - 10 bar(e).
- Installed Motor Power: The ZT 37 models typically have an installed motor power of 37 kW (kilowatts) or 50 hp (horsepower). Other models within the ZT-MED range have an installed motor power of 15 kW - 55 kW.
- Energy Efficiency: Designed for continuous operation with great energy efficiency. Variable Speed Drive (VSD) technology allows for energy savings of up to 35% by adjusting motor speed to match air demand.
- Noise Level: The ZT 37 - 8.6 (Air-cooled) model has a noise level of 72 dB(a). The ZT 37 VSD – 10 bar(e) (Air-cooled) Maximum model has a noise level of 68 dB(A).
- Weight: The ZT 37 - 8.6 (Air-cooled) model weighs 1251 kg (2758 lbs) without a dryer. The ZT 37 VSD – 10 bar(e) (Air-cooled) Maximum model weighs 1430 kg (3153 lbs) without a dryer and 1560 kg (3439 lbs) with an ID dryer.
- Dimensions: The ZT 37 - 8.6 (Air-cooled) model has dimensions of approximately 2005 mm (length) x 1026 mm (width) x 1880 mm (height).
Features & Benefits:
- Reliability: Built with robust materials and advanced technology, ensuring consistent and dependable operation.
- Compact Design: Its dimensions allow for easy integration into various environments, optimizing space utilization.
- Full Feature (FF) Option: Available as a Full Feature package with integrated dryers (ID/IMD) for enhanced compressed air quality and reduced installation space.
- Variable Speed Drive (VSD): Reduces energy costs by automatically adjusting motor speed to air demand.
- Energy Recovery: Option to equip the compressor with an energy recovery unit to utilize compression heat for heating purposes.
- Advanced Control System: Elektronikon® controller for monitoring and data collection to optimize energy efficiency.
- Compliance with Medical Standards: Developed to meet essential requirements of ISO 7396-1 and HTM 02-01, ensuring risk-free operation in medical air systems.
Applications:
The Atlas Copco ZT 37-MED is specifically designed for industries requiring high-quality compressed air, especially those with critical applications in medical settings. It is also suitable for a wide range of industrial applications.
- Pharmaceutical
- Automotive
- Textile
- Power generation
- Chemical
- Battery
