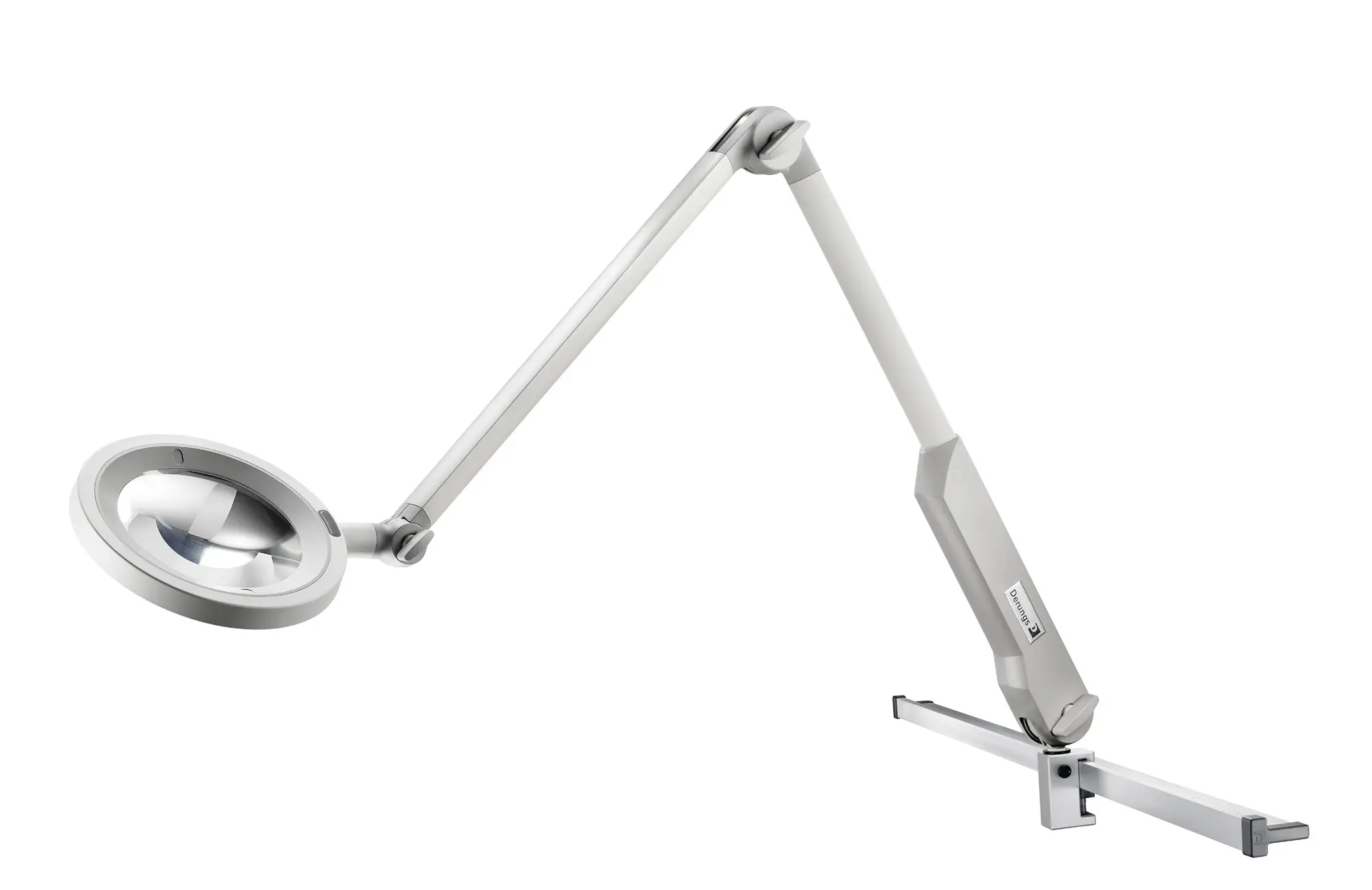

Waldmann OPTICLUX LED Magnifier 10-1 P TX, 12W, 100-240V - Rail Mount *Rail sold separately

Waldmann OPTICLUX 10-1 | 1.9x Magnification | Rail Mounted

The Waldmann OPTICLUX 10-1 P TX (D15954150) is a world-class medical magnifier luminaire designed for 2026 clinical standards. Delivering a high-intensity 6500K daylight-quality light field of 6,000 lux, it features an oversized 6.3-inch lens providing 1.9x magnification. This model is engineered for professionals who require distortion-free visualization and surgical-grade color rendering ($CRI > 93$) in a compact, integrated configuration.

Specifically configured for rail mounting, this unit allows for seamless movement along standard clinical rail systems (e.g., DIN or Fairfield rails), keeping workspaces organized while providing daylight-balanced illumination for intricate diagnostic tasks.

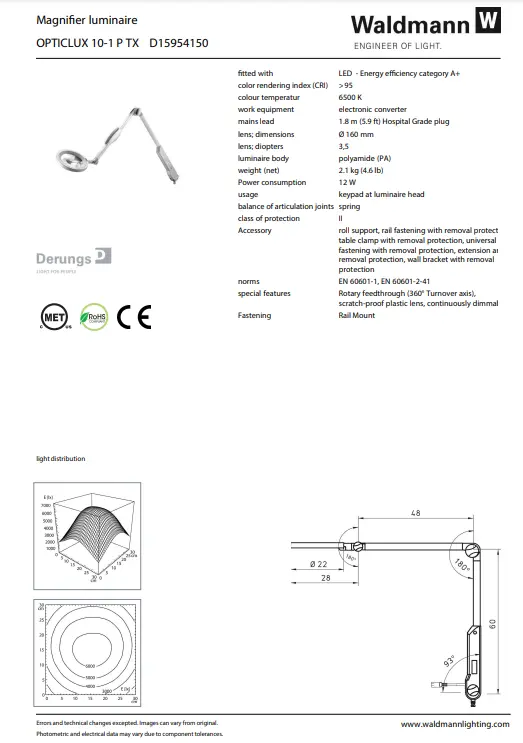

Key Specifications

• Manufacturer: Waldmann (Derungs)

• Model: OPTICLUX 10-1 P TX (Rail Version)

• Part Number: D15954150

• Light Intensity: 6,000 Lux at 0.15 meters

• Magnification: 3.5 Diopters (1.9x magnification)

• Lens Material / Size: Premium, scratch-proof Acrylic (PMMA) / 6.3-inch (160 mm) diameter

• Color Temperature: Fixed 6500 K (Daylight)

• Dimming: Continuous (Stepless adjustment down to 10%)

• Mounting: Rail Mount bracket with 16 mm universal pin interface

Technical & Clinical Advantages

• Oversized Distortion-Free Lens: The 160 mm lens provides a broad, edge-to-edge field of view. Its high-quality PMMA construction ensures a clear image without the color fringing often found in lower-tier glass lenses, significantly reducing eye strain during long procedures.

• 360° Positional Freedom: The light head features a unique 360° Turnover Axis (rotary feedthrough). Combined with the articulating double arm, it allows the practitioner to position the lens at any angle with one hand, remaining drift-free once set.

• Stepless Dimming Control: An intuitive membrane keypad on the light head allows for continuous dimming (100% down to 10%). This enables the practitioner to customize light intensity for sensitive examination areas and eliminate distracting glare on metallic instruments.

• Sealed Hygienic Construction: The luminaire features a seamless, enclosed housing made of high-quality polyamide (PA). This supports rapid and thorough disinfection with hospital-grade wipes, adhering to 2026 infection control protocols.

• Rail Mount Efficiency: The compact rail bracket preserves valuable floor and wall space, allowing the magnifier to be moved along the medical rail to follow the clinician's workflow.

Ideal Applications

• Dermatology & Minor Procedures: Detailed skin mapping and lesion identification under high-contrast daylight.

• Veterinary Medicine: Ideal for dental bays and exam tables where rail-mounted space-saving is essential for mobile equipment clearance.

• Sterile Processing (SPD): High-precision inspection of sterilized surgical instruments to ensure no debris or damage is present before repackaging.

• Laboratories: Accurate color representation and magnification for pharmaceutical research or sample analysis.

Condition & Quality Assurance

• Status: NEW — Factory Direct Quality.

• Integrity: Includes the OPTICLUX 10-1 light head, articulating arm system, protective lens cover, and the dedicated medical rail bracket.

• Maintenance: Completely maintenance-free LED technology with a long operational lifespan (approx. 50,000 hours).

• Standards Compliance: ETL/cETL approved; complies with EN 60601-1 and EN 60601-2-41 for medical electrical equipment.

Shipping & Handling

• Secure Logistics: Shipped in specialized reinforced packaging to ensure the precision optics and spring-balanced joints remain in perfect calibration during transit.

*NOTE: Rail sold separately (D13505000 39.4" or D13506000 59")
