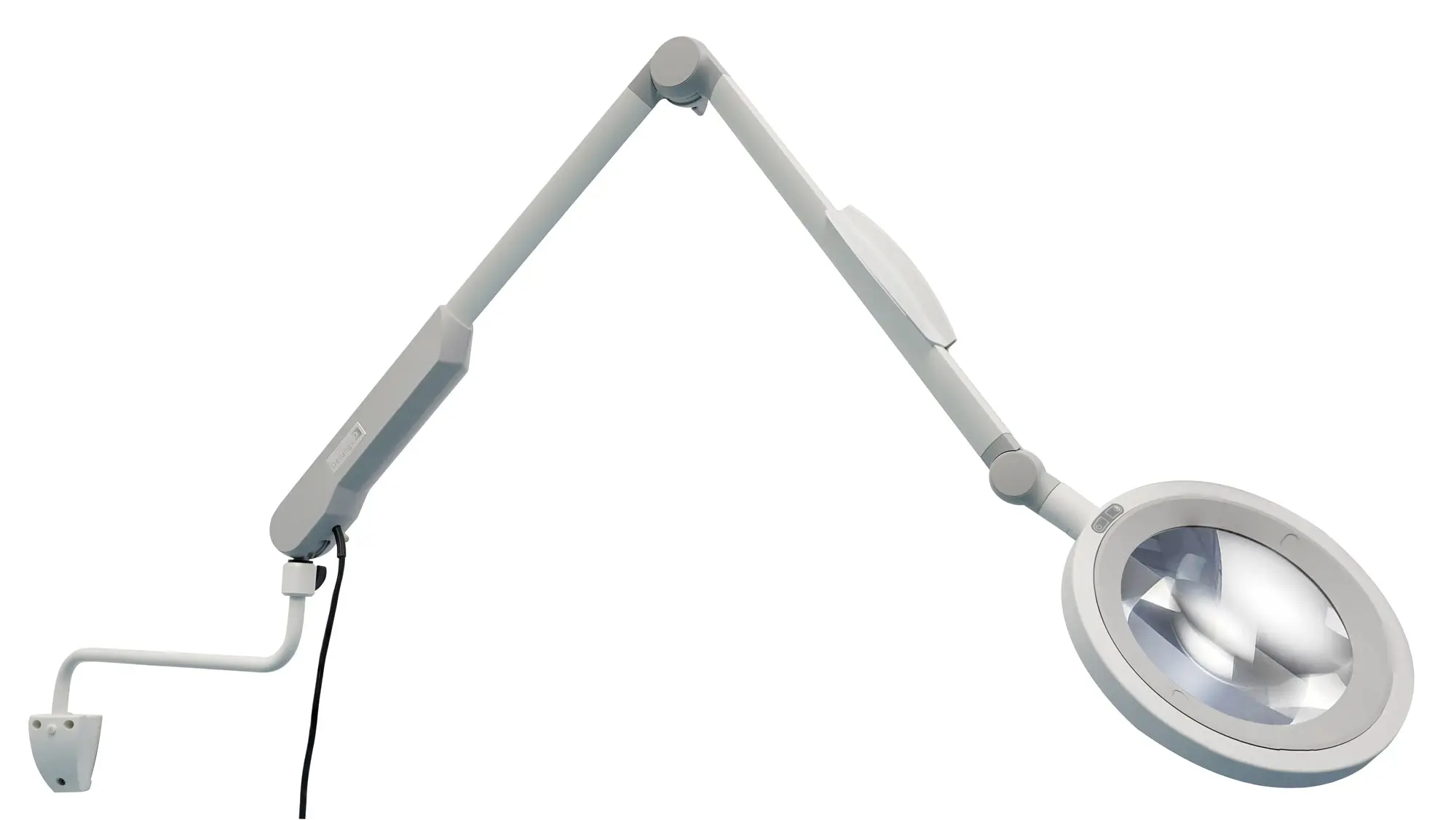

Waldmann OPTICLUX LED Magnifier 10-1 P TX, 12W, 100-240V - Wall Ext Mount

Waldmann OPTICLUX 10-1 | 1.9x Magnification | Wall Extension Mount

The Waldmann OPTICLUX 10-1 P TX (D15954120) is the maximum-reach version of Waldmann’s premier magnifier series. Designed for 2026 clinical standards, it pairs the high-intensity 6500K daylight light head with a specialized Wall Extension Mount. This configuration significantly increases the operating radius, allowing the magnifier to reach across large procedure tables or maneuver around other wall-mounted equipment while maintaining a zero-floor-footprint.

Delivering 6,000 lux, this model ensures distortion-free visualization and surgical-grade color rendering, making it the ideal choice for facilities requiring high-precision magnification with maximum spatial flexibility.

Key Specifications

• Manufacturer: Waldmann (Derungs)

• Model: OPTICLUX 10-1 P TX (Wall Extension Version)

• Part Number: D15954120

• Light Intensity: 6,000 Lux at 0.15 meters

• Magnification: 3.5 Diopters (1.9x magnification)

• Lens Material / Size: Premium Acrylic (PMMA) / 6.3-inch (160 mm) diameter

• Color Temperature: Fixed 6500 K (Daylight)

• Mounting: Wall Extension Mount (Primary bracket + articulating extension arm)

Technical & Clinical Advantages

• Extended Reach (Double Articulation): The extension mount adds a secondary horizontal segment to the standard spring-balanced arm. This provides the practitioner with the ability to "reach around" stationary obstacles and cover a significantly wider examination area from a single mounting point.

• Superior Color Accuracy: With a CRI of 95+, the OPTICLUX ensures that tissue variations, vascular patterns, and skin lesions are represented with absolute fidelity. This daylight-balanced output is critical for accurate diagnostics in dermatology and veterinary medicine.

• Large, Distortion-Free Lens: The 160 mm PMMA lens provides a broad, edge-to-edge field of view. Its high-quality construction eliminates the color fringing and peripheral distortion often found in lower-tier glass magnifiers, reducing eye strain during long procedures.

• Stepless Dimming Control: An intuitive membrane keypad on the light head allows for continuous dimming down to 10%. This enables the practitioner to customize light intensity for sensitive examination areas and eliminate distracting glare on metallic instruments.

• Sealed Hygienic Design: The luminaire features a seamless, enclosed housing that protects internal optics from dust and liquid ingress. This design supports rapid and thorough disinfection with hospital-grade wipes, adhering to modern infection control protocols.

• 360° Positional Freedom: The light head features a unique 360° Turnover Axis. Combined with the articulated extension system, it ensures the lens can be positioned at any angle with one-handed ease and absolute drift-free stability.

Ideal Applications

• Large Veterinary Suites: Reaches across wide procedure tables for dental exams and soft-tissue surgery.

• Dermatology & Oncology: Provides full-body skin mapping capabilities from a single wall mount without moving the patient or equipment.

• Sterile Processing (SPD): Extended reach allows for high-precision inspection across multiple adjacent workstations.

• Specialty Lab Research: Perfect for permanent lab bench configurations where the light must move between different diagnostic tools.

Condition & Quality Assurance

• Status: NEW — Factory Direct Quality.

• Integrity: Includes the OPTICLUX 10-1 light head, articulated arm system, wall extension segment, and heavy-duty wall bracket.

• Protection: Includes a custom-fit protective lens cover to prevent sun-damage and scratches when not in use.

• Maintenance: Maintenance-free LED technology with a long operational lifespan (approx. 50,000 hours).

Shipping & Handling

• Secure Logistics: Shipped in specialized reinforced packaging to ensure the extended arm linkage and precision optics remain in perfect calibration during transit.

• Fast Dispatch: Typically ships within 1–2 business days.
