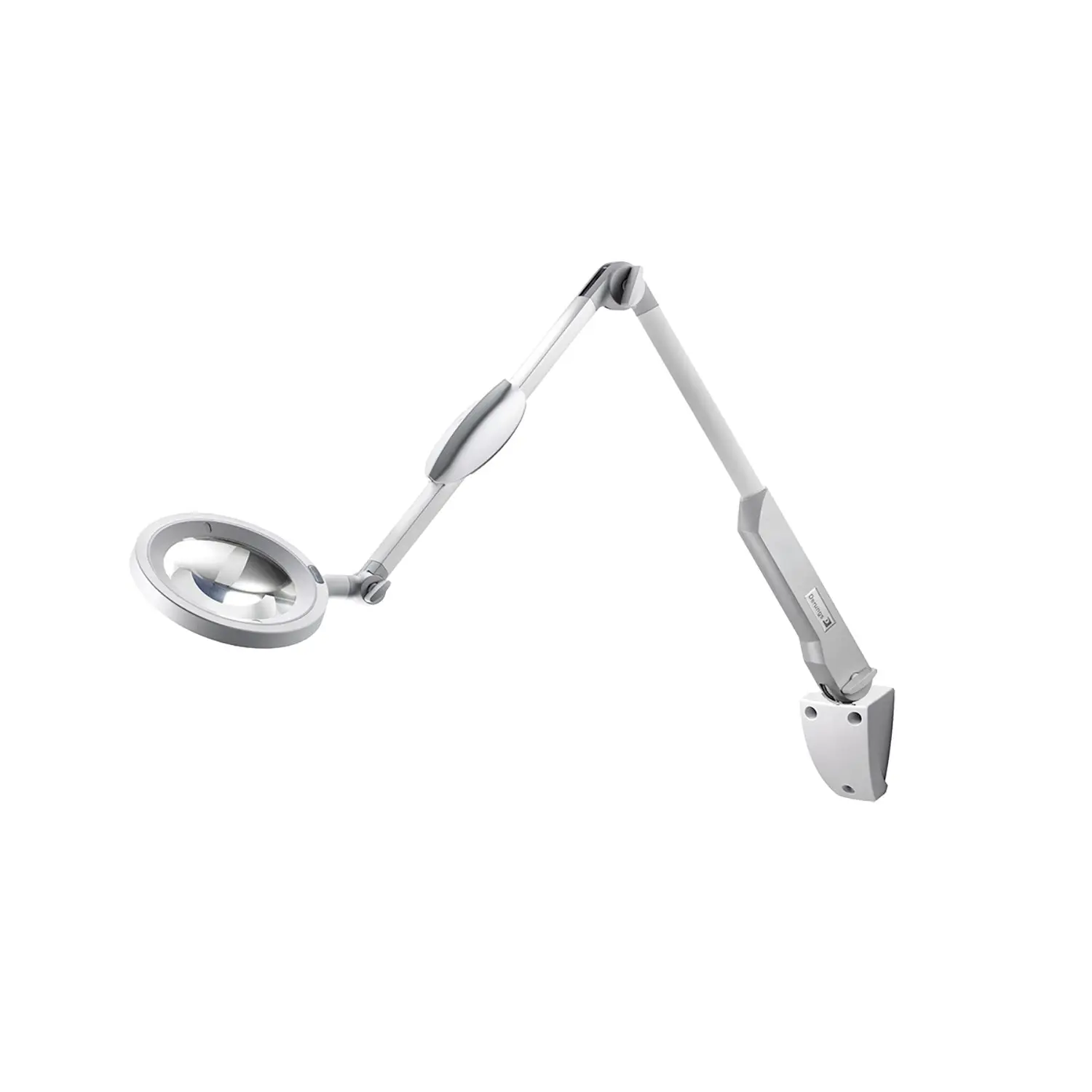

Waldmann OPTICLUX LED Magnifier 10-1 P TX, 12W, 100-240V - Wall Mount

Waldmann OPTICLUX 10-1 | 1.9x Magnification | Wall Mounted

The Waldmann OPTICLUX 10-1 P TX is a world-class medical magnifier luminaire designed to meet 2026 clinical standards. Delivering a high-intensity 6500K daylight-quality light field of 6,000 lux, it features a premium 6.3-inch lens providing 1.9x magnification. This model is engineered for professionals who require distortion-free visualization and surgical-grade color rendering in a permanent, space-efficient configuration.

By utilizing a heavy-duty wall mount, the OPTICLUX preserves valuable floor space while providing a wide operating radius via its spring-balanced double-arm system.

Key Specifications

• Manufacturer: Waldmann (Derungs)

• Model: OPTICLUX 10-1 P TX (Wall Version)

• Light Intensity: 6,000 Lux at 0.15 meters

• Magnification: 3.5 Diopters (1.9x magnification)

• Lens Material / Size: Premium Acrylic (PMMA) / 6.3-inch (160 mm) diameter

• Color Temperature: Fixed 6500 K (Daylight)

• Dimming: Continuous (Stepless adjustment down to 10%)

• Mounting: Wall Mount with articulated spring-balanced arm

Technical & Clinical Advantages

• Superior Color Accuracy: With a CRI of 95+, the OPTICLUX ensures that skin tones and tissue variations are represented with absolute fidelity. This is critical for identifying inflammatory responses and dermatological pathologies where subtle color differences are diagnostic markers.

• Large, Distortion-Free Lens: The 160 mm lens provides a broad, edge-to-edge field of view, allowing for bi-manual work under magnification. The high-quality PMMA construction ensures a clear image without the color fringing often found in lower-tier glass lenses.

• Stepless Dimming Control: The intuitive membrane keypad on the light head allows for continuous dimming. This enables the practitioner to adjust the light intensity to the sensitivity of the examination area, reducing glare and eye fatigue.

• Space-Efficient Ergonomics: The double-arm system provides an extensive reach across the examination table but folds tight against the wall when not in use. Once positioned, the light head remains perfectly stable and drift-free.

• Sealed Hygienic Construction: The luminaire body features a seamless, enclosed design. This supports rapid and thorough disinfection with hospital-grade wipes, meeting modern infection control protocols.

• Integrated Safety: The electronic converter is fully integrated into the arm system, providing a clean aesthetic and maximum electrical safety in the clinical environment.

Ideal Applications

• Dermatology: Detailed skin mapping, lesion identification, and minor biopsies under high-contrast daylight.

• Veterinary Medicine: Ideal for dental exams and soft-tissue diagnostics where a permanent, wall-mounted solution is required.

• Sterile Processing (SPD): High-precision inspection of sterilized surgical instruments to ensure no debris or damage is present before repackaging.

• General Surgery Prep: Localized pre-op site preparation and foreign body removal requiring clear magnification.

Condition & Quality Assurance

• Status: NEW — Factory Direct Quality.

• Integrity: Includes the OPTICLUX 10-1 light head, articulated double-arm system, protective lens cover, and heavy-duty wall mounting bracket.

• Maintenance: Maintenance-free LED technology with a long operational lifespan (approx. 50,000 hours).

• Standards Compliance: Fully compliant with IEC 60601-1 and 60601-2-41 standards for medical electrical equipment.

Shipping & Handling

• Secure Logistics: Shipped in specialized reinforced packaging to ensure the precision optics and spring-balanced joints remain in perfect calibration.
