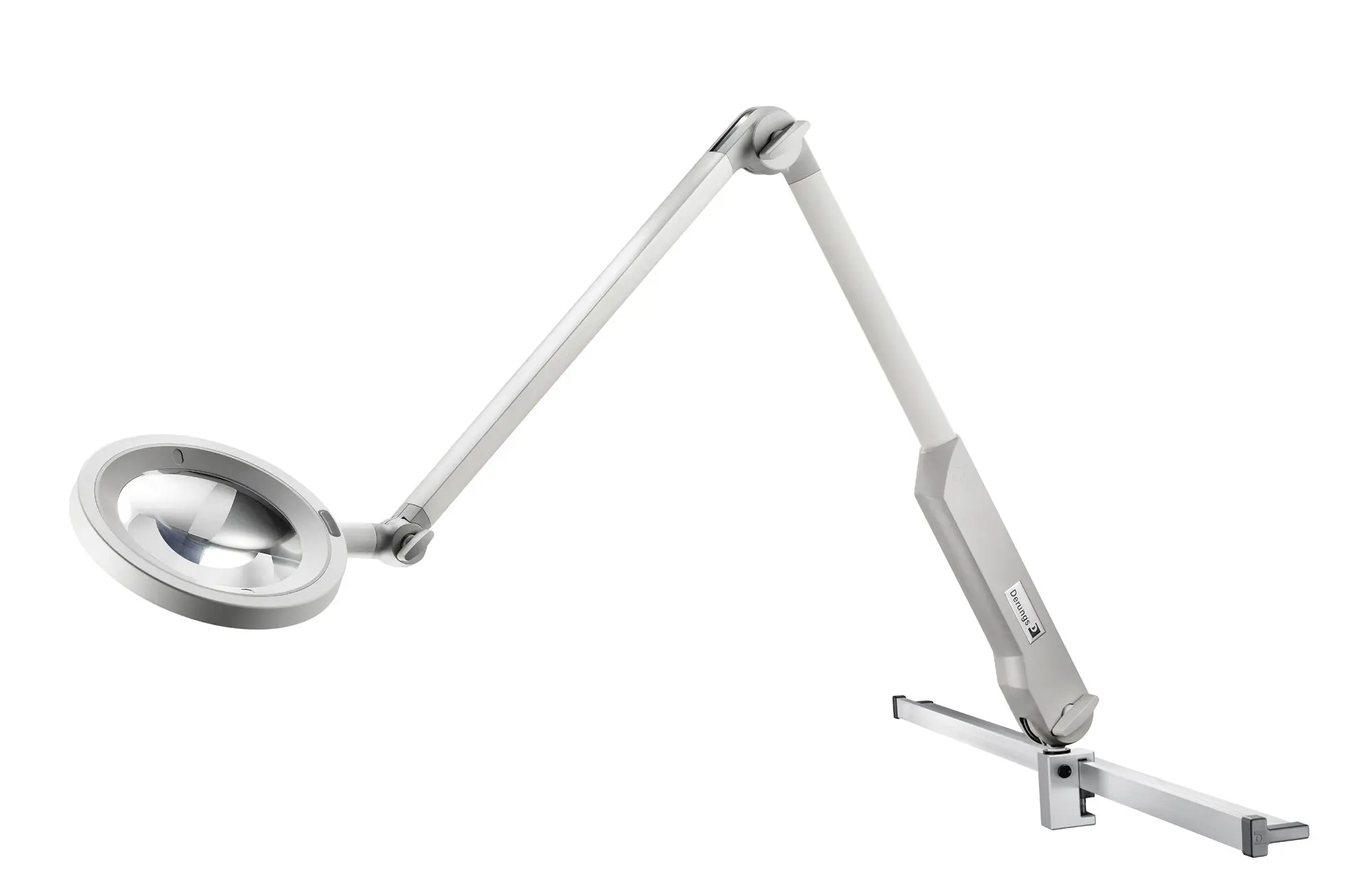

Waldmann OPTICLUX LED Magnifier 10-2 P TX, 12W, 100-240V, Woods - Rail Mount *Rail sold separately

Waldmann OPTICLUX 10-2 | Wood’s Light | Rail Mounted

The Waldmann OPTICLUX 10-2 P TX (D15953150) is a premier medical magnifier luminaire designed for 2026 clinical standards. It combines a high-intensity 6500K daylight-quality light field with a specialized Wood’s Light (UV-A) function. This dual-mode capability allows for high-definition visual magnification and specialized fluorescence diagnostics—essential for identifying fungal infections (dermatophytosis), bacterial markers, and pigmentary disorders.

Specifically configured for rail mounting, this unit allows for seamless integration with standard clinical rail systems (e.g., DIN or Fairfield rails), keeping workspaces organized while providing surgical-grade color rendering ($R_a > 95$).

Key Specifications

• Manufacturer: Waldmann (Derungs)

• Model: OPTICLUX 10-2 P TX (Wood's Version)

• Part Number: D15953150

• Light Intensity: 6,000 Lux at 0.15 meters

• Magnification: 3.5 Diopters (1.9x magnification)

• Lens Material / Size: Premium, scratch-proof Acrylic (PMMA) / 6.3-inch (160 mm) diameter

• Wood's Light: Integrated UV-A (Peak at 365 nm)

• Color Temperature: Fixed 6500 K (Daylight)

• Color Rendering Index (CRI): $R_a > 95$ ($R_9 > 90$, $R_{13} > 95$)

• Dimming: Continuous (Stepless adjustment down to 10%)

• Mounting: Rail Mount bracket with 16 mm universal pin interface

Technical & Clinical Advantages

• Integrated Wood’s Light (UV-A): Features high-power 365 nm LEDs. This allows clinicians to perform Wood’s lamp examinations instantly, providing vital fluorescence for dermatology and veterinary diagnostics without needing a separate device.

• Superior Color Accuracy: With a CRI of 95+, the OPTICLUX ensures that skin tones and tissue variations are represented with absolute fidelity. This is critical for the early identification of inflammatory responses and dermatological pathologies.

• Market-Leading Lens Size: The oversized 160 mm lens provides a broad, distortion-free field of view. This allows for comfortable bi-manual work under magnification and reduces eye strain during extended diagnostic sessions.

• 360° Positional Freedom: The light head features a unique 360° Turnover Axis (rotary feedthrough). Combined with the spring-balanced articulated arm, it allows the practitioner to position the lens at any angle with one hand, remaining drift-free once set.

• Sealed Hygienic Construction: The luminaire body is made of high-quality polyamide (PA) with a seamless, enclosed design. This supports rapid and thorough disinfection with hospital-grade wipes, meeting 2026 infection control protocols.

• Rail Mount Efficiency: The compact rail bracket preserves valuable floor and wall space, allowing the magnifier to be moved along the medical rail to follow the patient's position.

Ideal Applications

• Dermatology: Essential for skin cancer screenings, pigment analysis (Vitiligo/Melasma), and identifying fluorescence-positive infections (Microsporum canis).

• Veterinary Medicine: Ideal for diagnosing ringworm and other skin conditions in small and large animals in rail-equipped exam rooms.

• Sterile Processing (SPD): High-precision inspection of sterilized surgical instruments under daylight-quality light and magnification.

• Laboratory & Research: Accurate color representation and UV-A capability for forensic or pharmacological analysis.

Condition & Quality Assurance

• Status: NEW — Factory Direct Quality.

• Integrity: Includes the OPTICLUX 10-2 light head, spring-balanced arm system, protective lens cover, and the dedicated medical rail bracket.

• Maintenance: Completely maintenance-free LED technology with a long operational lifespan (approx. 50,000 hours).

• Standards Compliance: Fully compliant with IEC 60601-1 and 60601-2-41 for medical electrical equipment.

Shipping & Handling

• Secure Logistics: Shipped in specialized reinforced packaging to ensure the precision optics and spring-balanced joints remain in perfect calibration.
