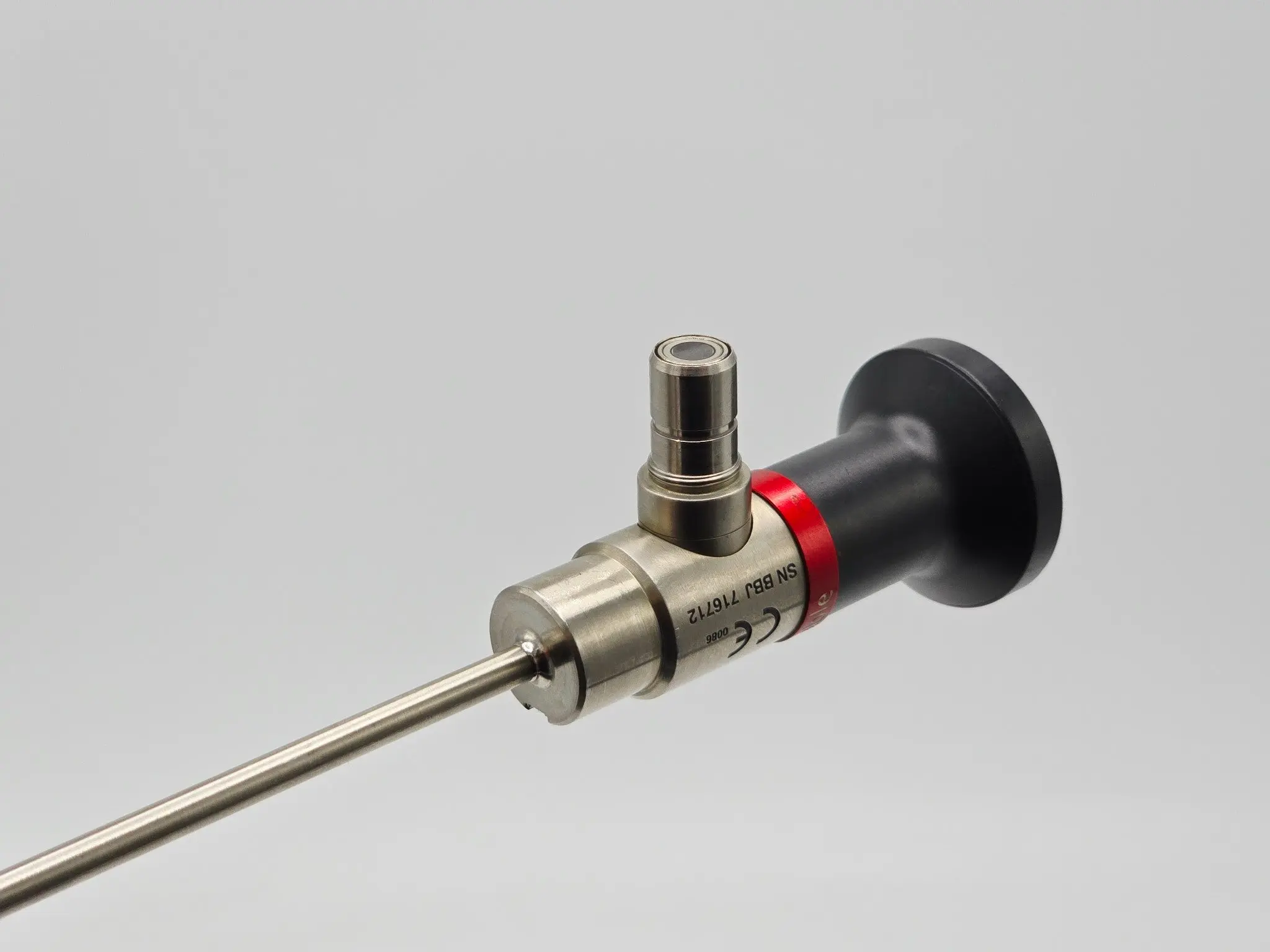

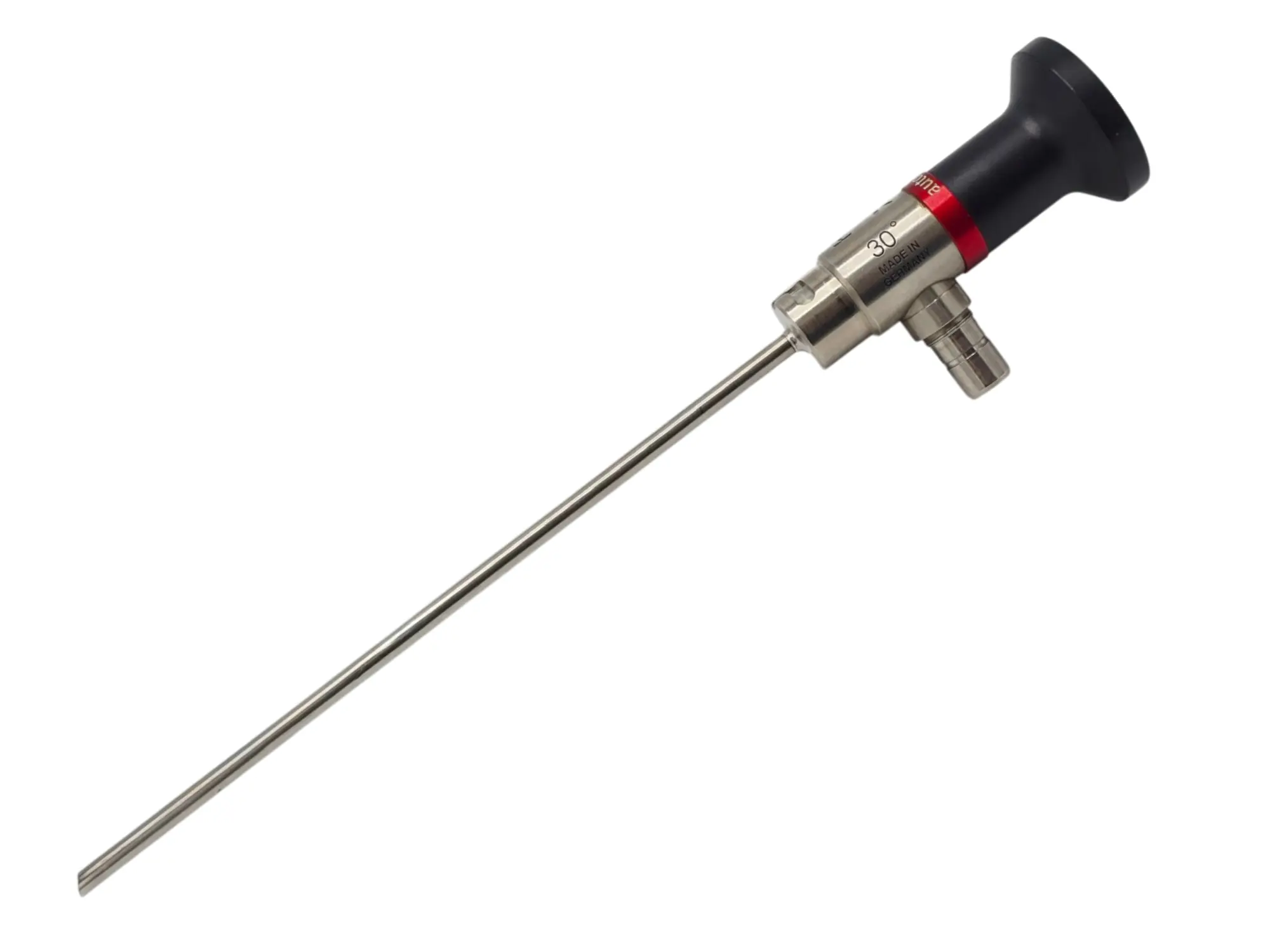

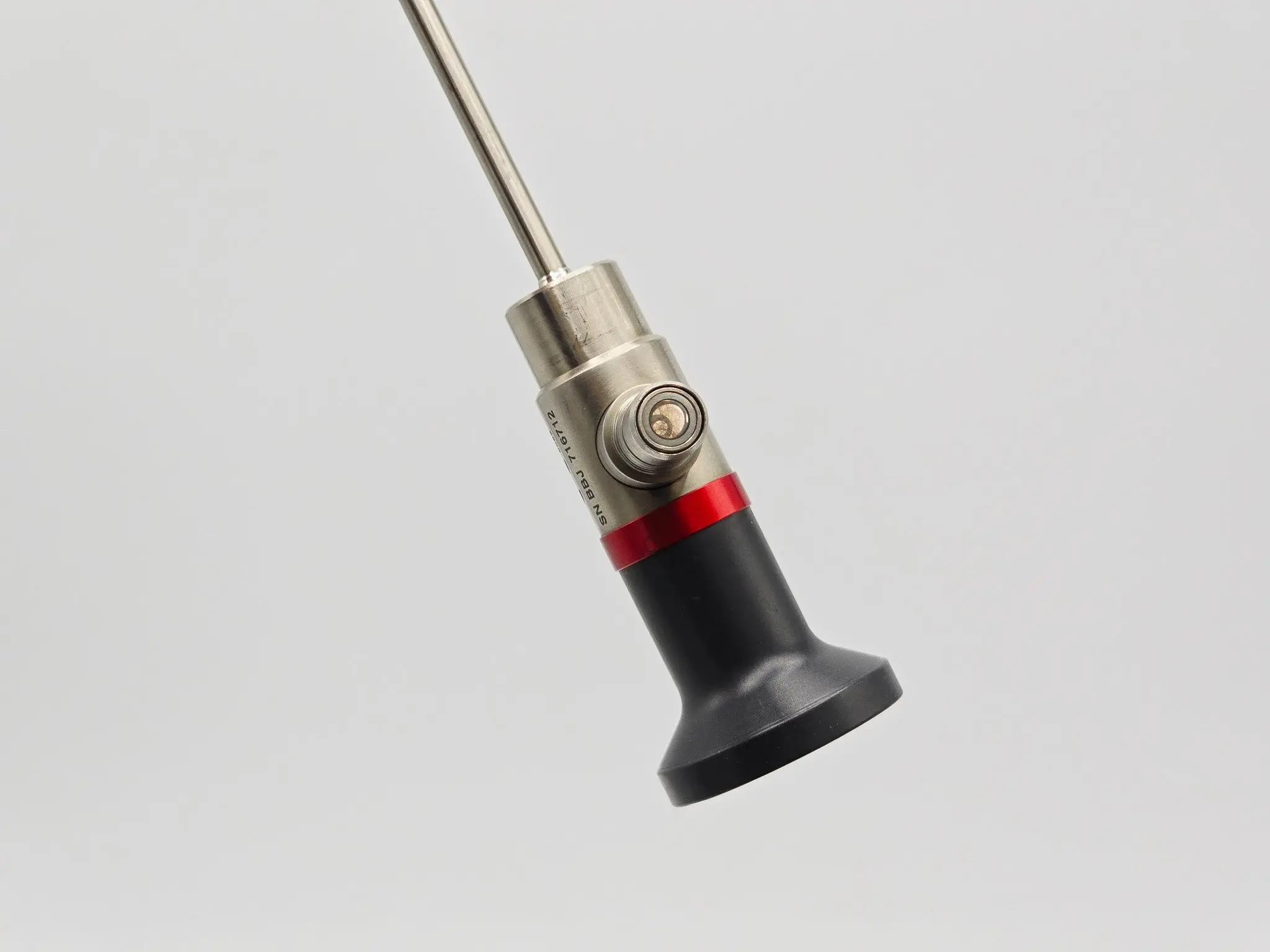

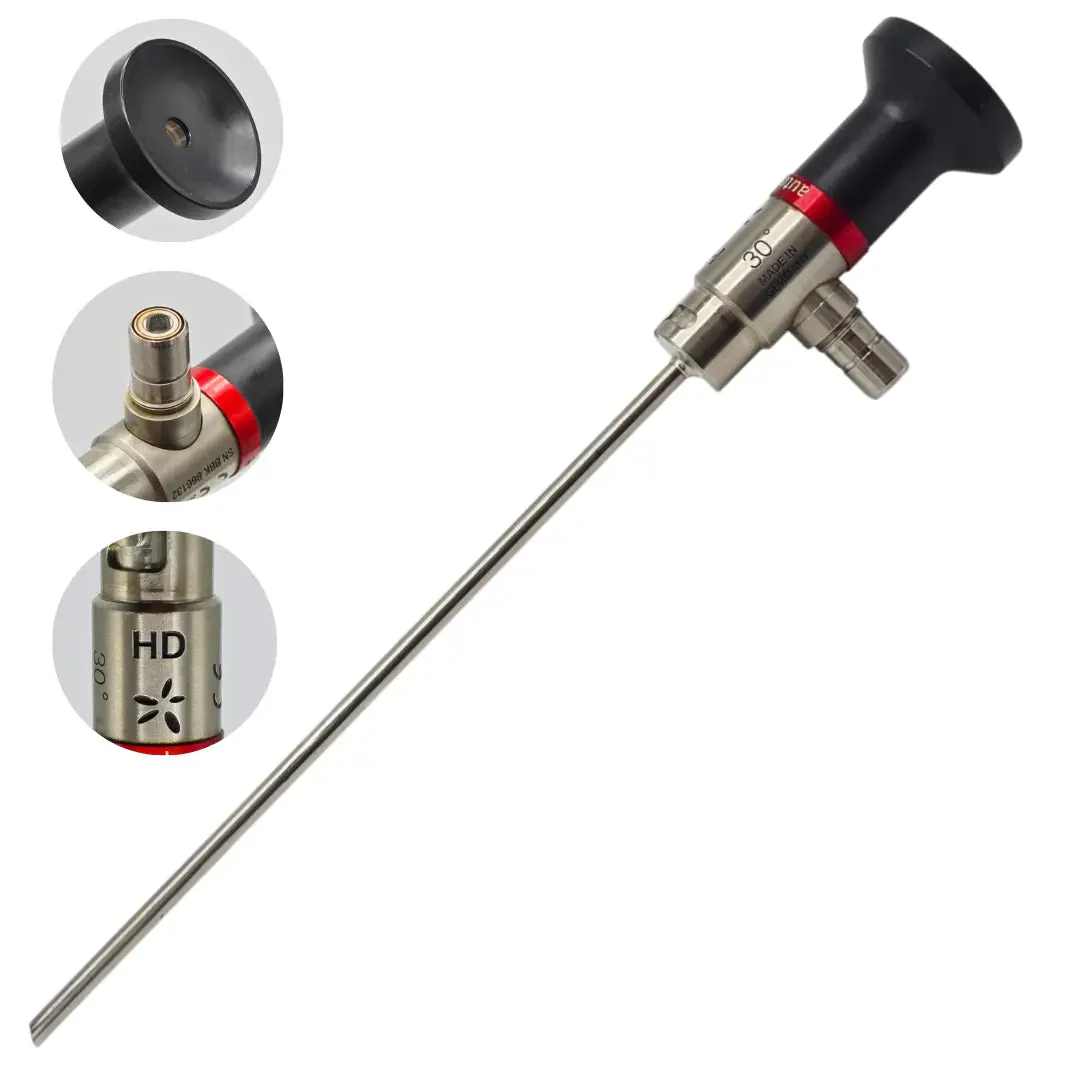

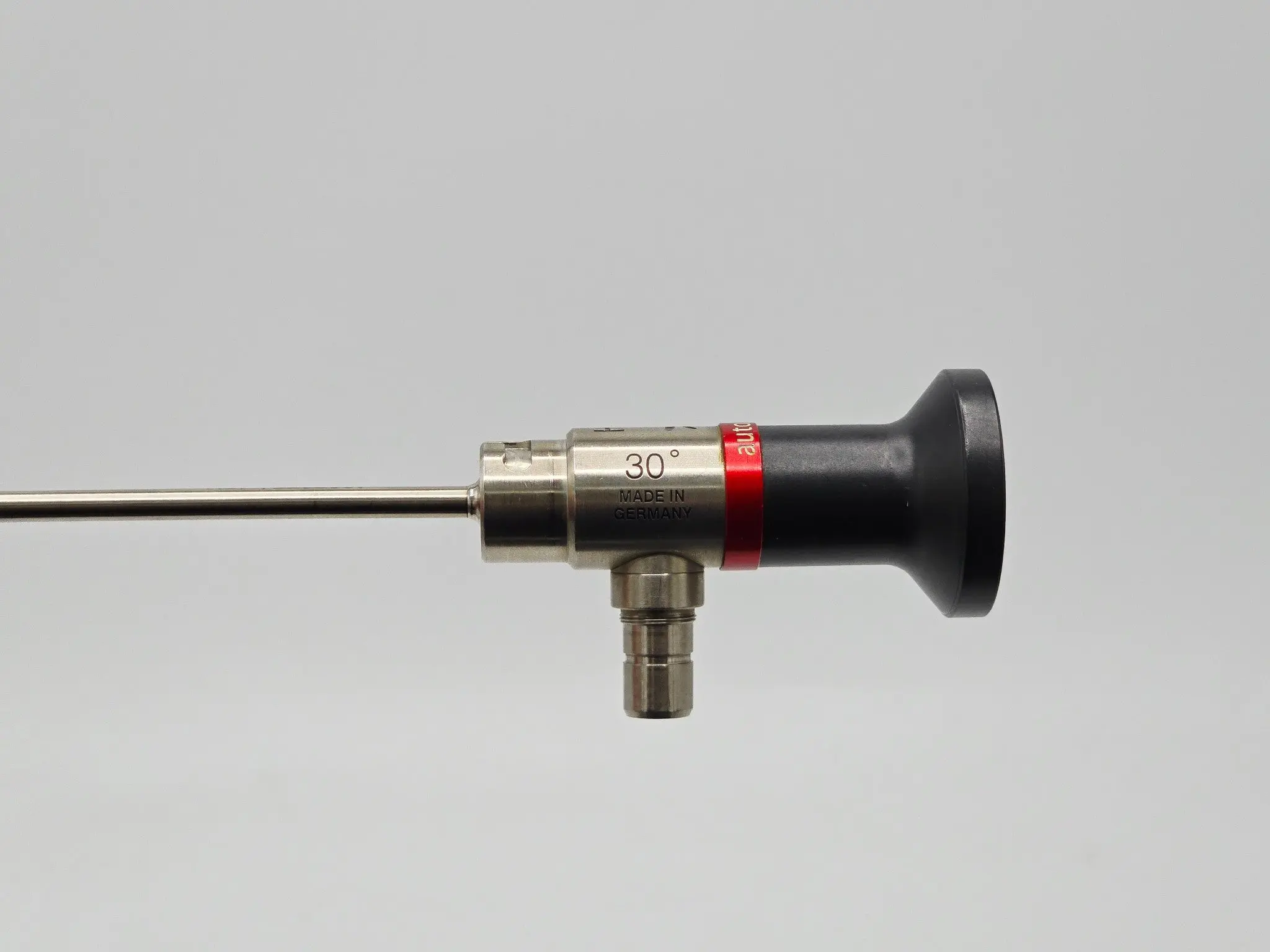

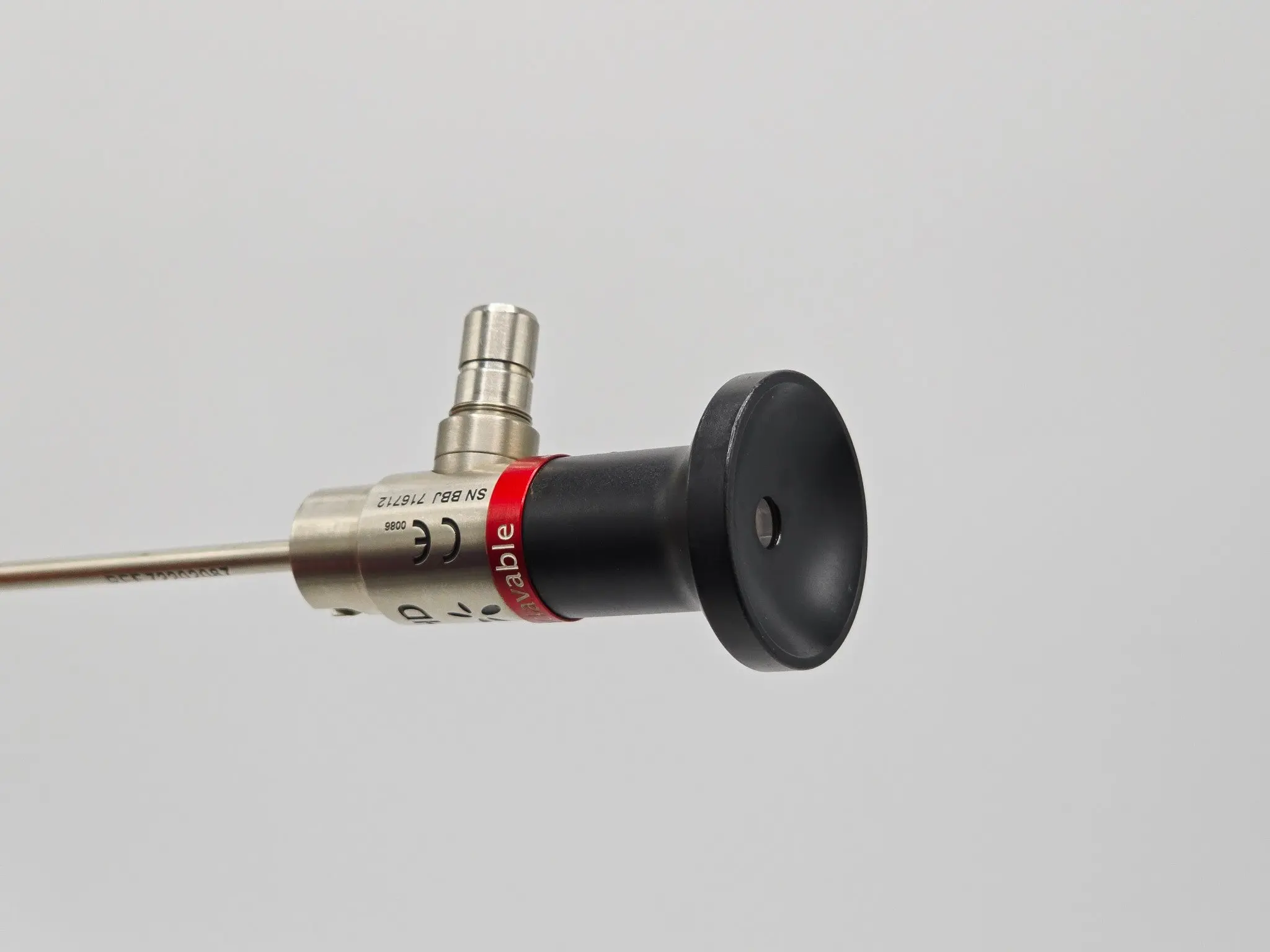

Smith & Nephew Dyonics 72202087 HD Arthroscope 4mm 30° Autoclavable

Smith & Nephew Dyonics 72202087 HD Rigid Arthroscope | 4mm 30° | J-Lock | Autoclavable

The Smith & Nephew Dyonics 72202087 is a premium 4.0mm High-Definition (HD) rigid arthroscope, precision-engineered in Germany for elite optical performance in large-joint procedures. Featuring a 30° direction of view, this scope provides the ideal balance between intuitive orientation and an expanded peripheral field. By simply rotating the light post, the 30° offset allows for a comprehensive "sweep" of the joint space, making it indispensable for standard knee and shoulder arthroscopy, including meniscal repairs, labral stabilization, and synovectomy.

Equipped with a secure J-Lock cannula connection, this model ensures a stable, leak-proof interface with high-flow arthroscopic sheaths. Its autoclavable stainless steel construction is designed to withstand the thermal stresses of repeated steam sterilization without compromising HD image clarity or fiber-optic light transmission.

Technical Specifications

• Manufacturer: Smith & Nephew (Dyonics)

• Model / REF: 72202087

• Origin: Made in Germany

• Diameter: 4.0mm

• Direction of View: 30° (Standard Versatile Angle)

• Overall Length: 8 11/16" (approx. 22 cm)

• Optical Type: HD Rigid Rod-Lens System

• Connection Type: J-Lock Cannula Interface

• Sterilization: Autoclavable (Steam Sterilizable)

• Illumination: Integrated Fiber-Optic Light Transmission

Clinical & System Features

• German-Engineered HD Optics: Provides edge-to-edge sharpness and superior color contrast, essential for identifying subtle intra-articular pathology on 1080p and 4K surgical monitors.

• J-Lock Compatibility: The specialized distal locking mechanism provides a "click-fit" security into J-Lock trocars, preventing accidental rotation or decoupling during vigorous joint manipulation.

• Universal Light Post: Includes a standard light post connection compatible with major fiber-optic cables from Smith & Nephew, Stryker, and Arthrex.

• Ergonomic Proximal Housing: Designed for tactile comfort and smooth rotation, allowing for precise control of the viewing field during complex triangulation.

• Durable Stainless Steel Shaft: Built to resist the bending and levering forces common in orthopedic surgery, protecting the internal rod-lens system.

Condition & Quality Assurance

• Status: Used – Excellent Condition / Well Maintained.

• Optical Bench-Test: This scope has been clinically inspected for peak performance. The internal rod lenses are perfectly aligned, and the distal tip is free of "pitting" or scratches.

• Light Transmission: The fiber-optic bundle has been tested for maximum lumen output, ensuring bright, uniform illumination across the entire joint space.

• Expertise: With over 25 years of experience in orthopedic visualization, Primis Medical ensures that every pre-owned scope is "theatre-ready" and meets original manufacturer specifications.

Shipping & Handling

• Secure Logistics: All rigid scopes are shipped in custom-padded, reinforced containers to eliminate the risk of rod-lens fractures during transport.

• Fast Dispatch: Ships within 1 business day.
