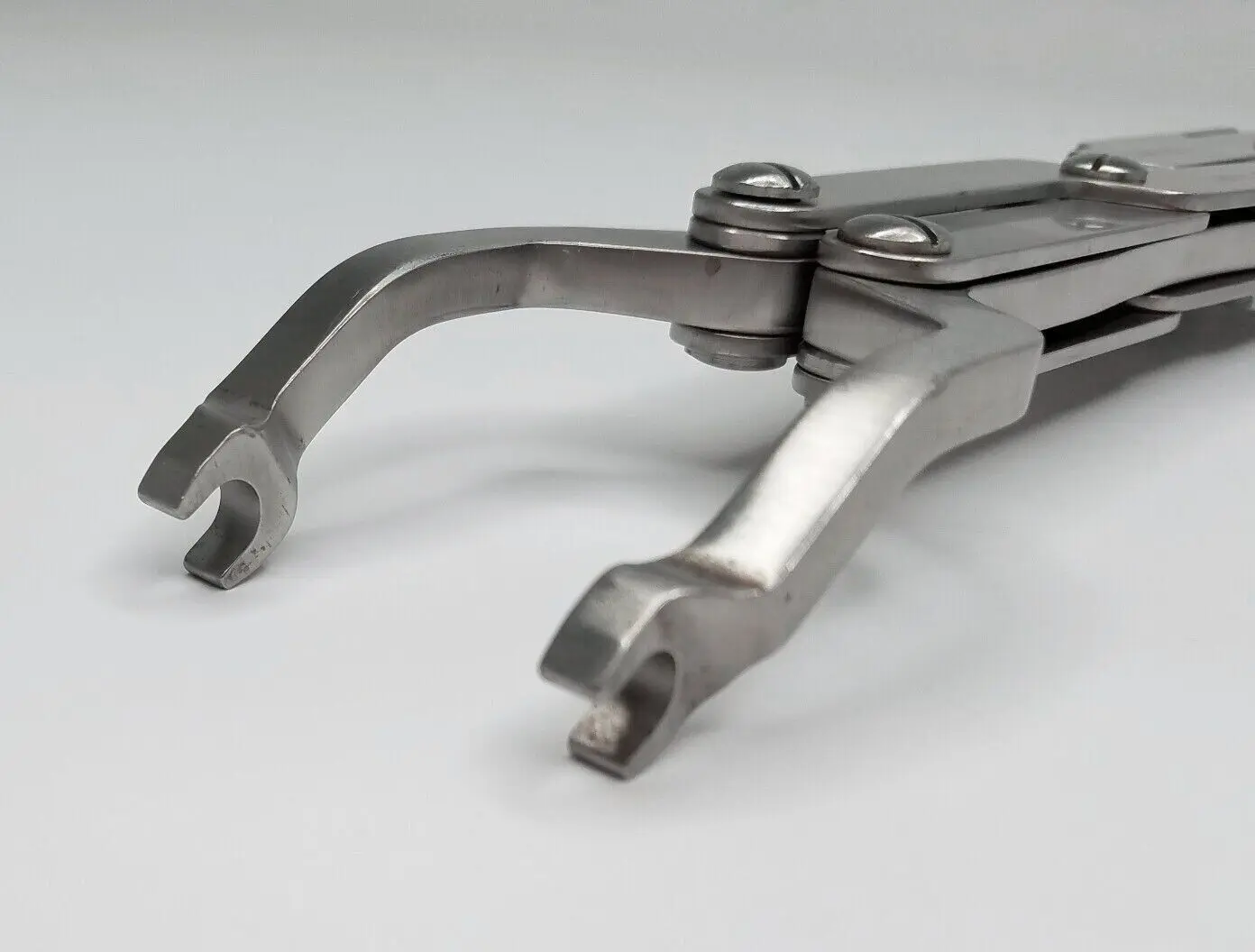

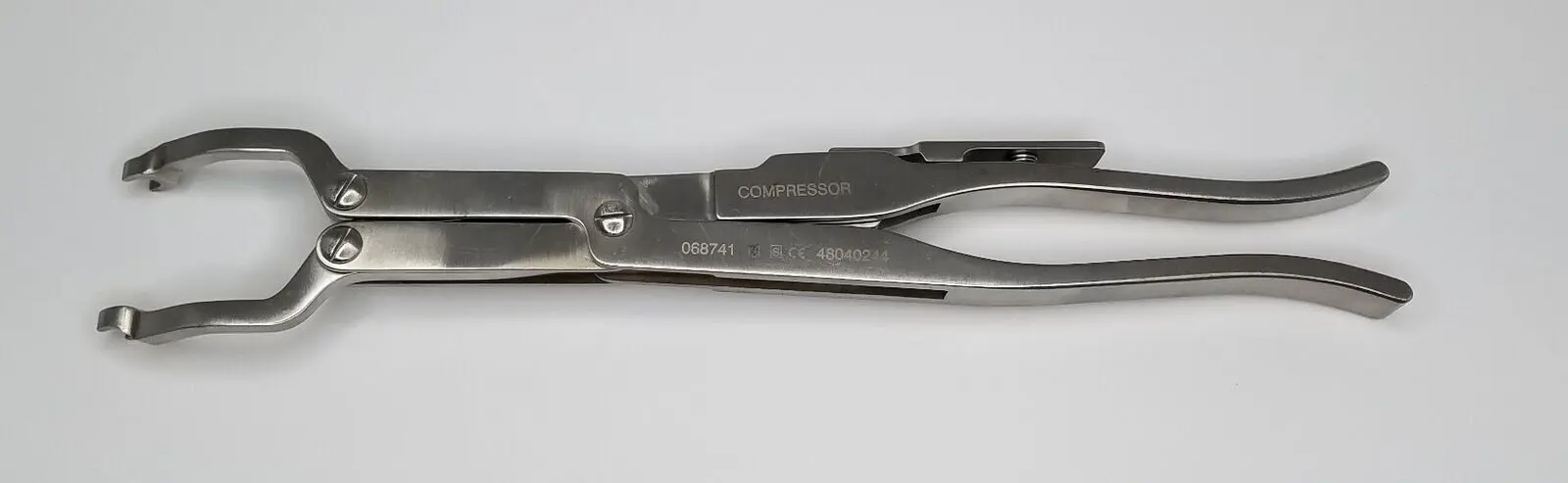

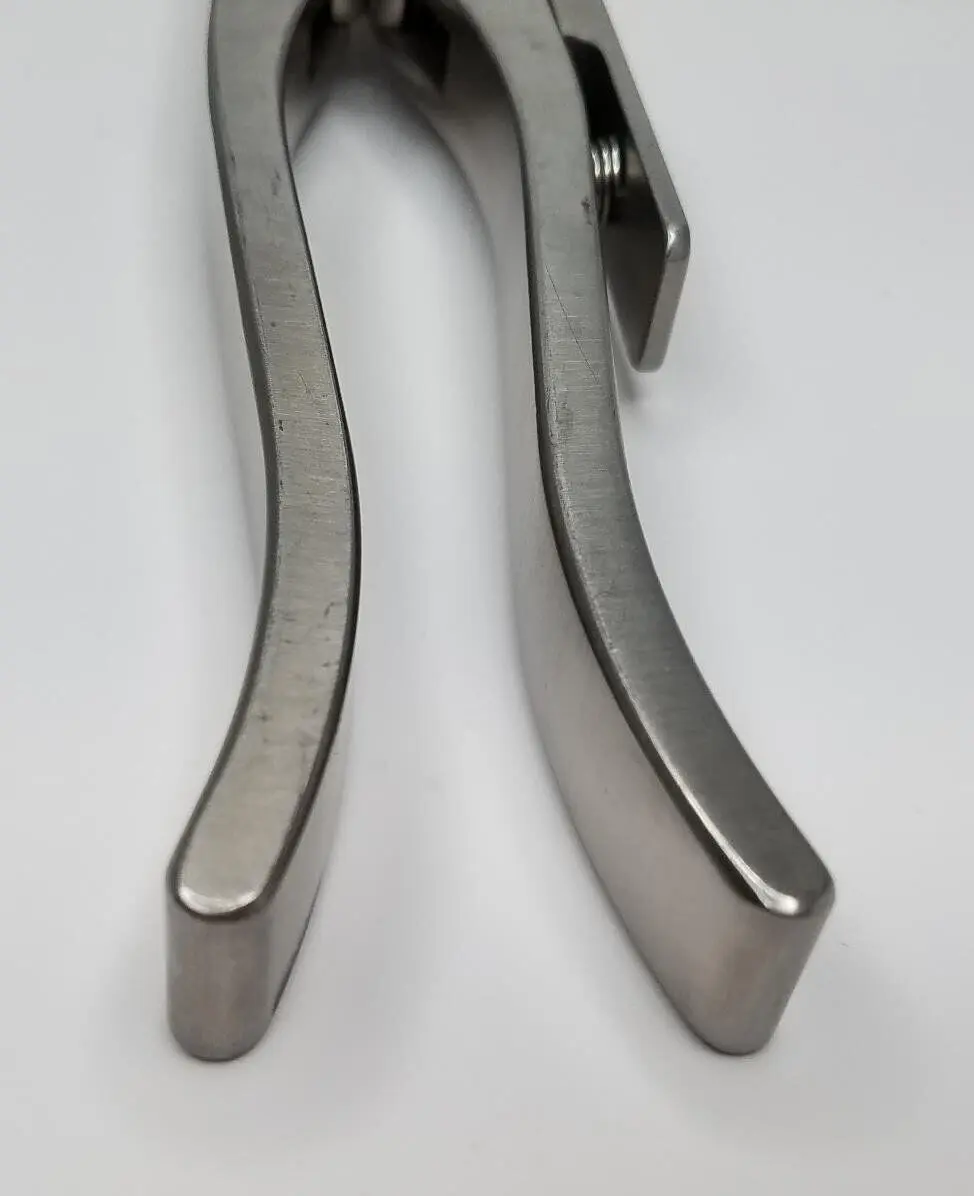

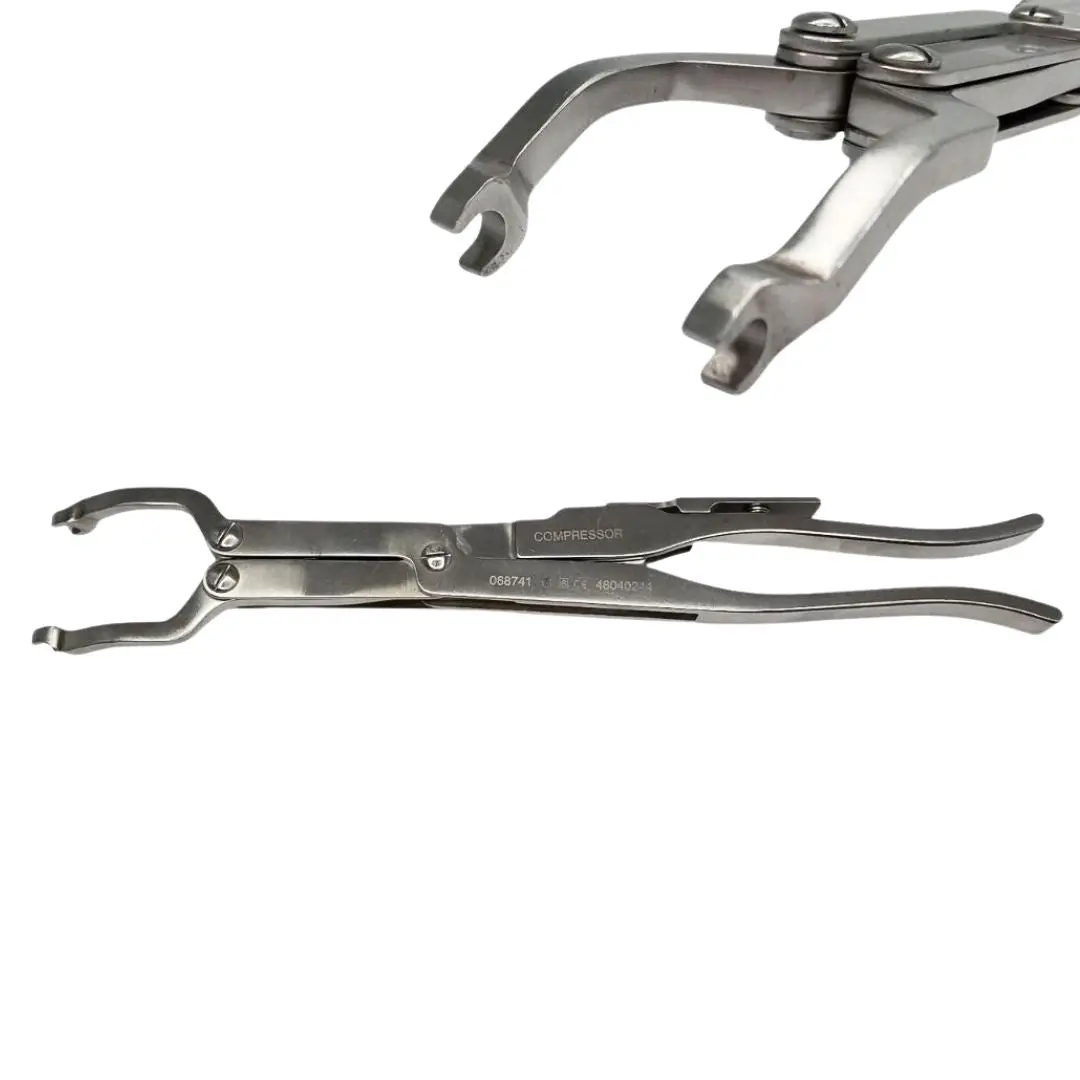

Stryker 48040244 XIA Orthopedic Titanium Parallel Compressor 13"

Stryker XIA Parallel Compressor | 13" Titanium | 48040244 | Reusable

The Stryker 48040244 is a high-performance orthopedic instrument from the XIA® Spinal System line, engineered for the controlled compression of vertebral segments or bone fragments. Constructed from premium-grade Titanium, this 13-inch compressor offers a superior strength-to-weight ratio and non-magnetic properties, providing the surgeon with exceptional tactile feedback while minimizing hand fatigue during long-segment spinal reconstructions.

The "Parallel" designation refers to the instrument's unique mechanical linkage, which ensures the compressor tips remain parallel throughout the closure. This prevents the "cocking" or tilting of pedicle screws or rods, ensuring that compression forces are distributed evenly across the graft interface or fracture line.

Key Specifications

• Manufacturer: Stryker Orthopaedics

• Series: XIA® Spinal System

• Model / REF: 48040244

• Product Type: Parallel Compressor

• Overall Length: 13 Inches (33 cm)

• Material: Medical-Grade Titanium (Lightweight & Corrosion Resistant)

• Mechanism: Parallel-Action Linkage with Manual Tensioning

• Cleaning: Fully Autoclavable / Reusable

Technical & Clinical Advantages

• Parallel Force Transmission: Unlike standard "scissor-style" compressors that apply force at an arc, the 48040244 maintains a parallel orientation. This is critical in spinal surgery to ensure that pedicle screws are pushed together squarely, preventing "plowing" or loosening of the screw-to-bone interface.

• Titanium Durability & Weight: Titanium is significantly lighter than stainless steel, making this 13-inch instrument easier to maneuver in deep surgical corridors. Its natural resistance to corrosion ensures the pivot points and internal linkages remain fluid after hundreds of autoclave cycles.

• 13-Inch High-Leverage Frame: The extended length provides the mechanical advantage required to compress dense spinal segments or reduce large fractures with minimal manual effort. The ergonomic handle design allows for high-torque applications without sacrificing precision.

• Non-Reflective Surface: The matte titanium finish reduces glare from high-intensity surgical lights and microscopes, providing a high-contrast view of the implants and surrounding neural structures.

• System Integration: While optimized for the XIA® Spinal System, the universal jaw geometry is compatible with various rod-and-screw systems requiring 5.5mm or 6.0mm rod compression.

Applications

• Spine Surgery: Parallel compression of pedicle screws for lumbar/thoracic fusion and deformity correction.

• Orthopedic Trauma: Controlled compression of bone fragments during plate-and-screw fixation.

• Complex Reconstructions: Stabilization and compression of interbody spacers or bone grafts.

Condition & Quality Assurance

• Status: Used – Excellent Condition.

• Maintenance: This instrument has been professionally inspected for structural alignment and linkage fluidity. The parallel movement is precise with no lateral "play," and the titanium surfaces are well-maintained with no signs of mechanical fatigue or galling.

• Professional Standards: With over 25 years of experience in surgical instrumentation and hospital materials, Primis Medical ensures all specialized Stryker tools are function-verified and ultrasonically cleaned prior to shipment.

Shipping & Handling

• Secure Logistics: Shipped in reinforced, padded packaging to ensure the 13-inch titanium frame and precision parallel linkage arrive in factory-standard alignment.

• Fast Dispatch: Ships within 1 business day.
