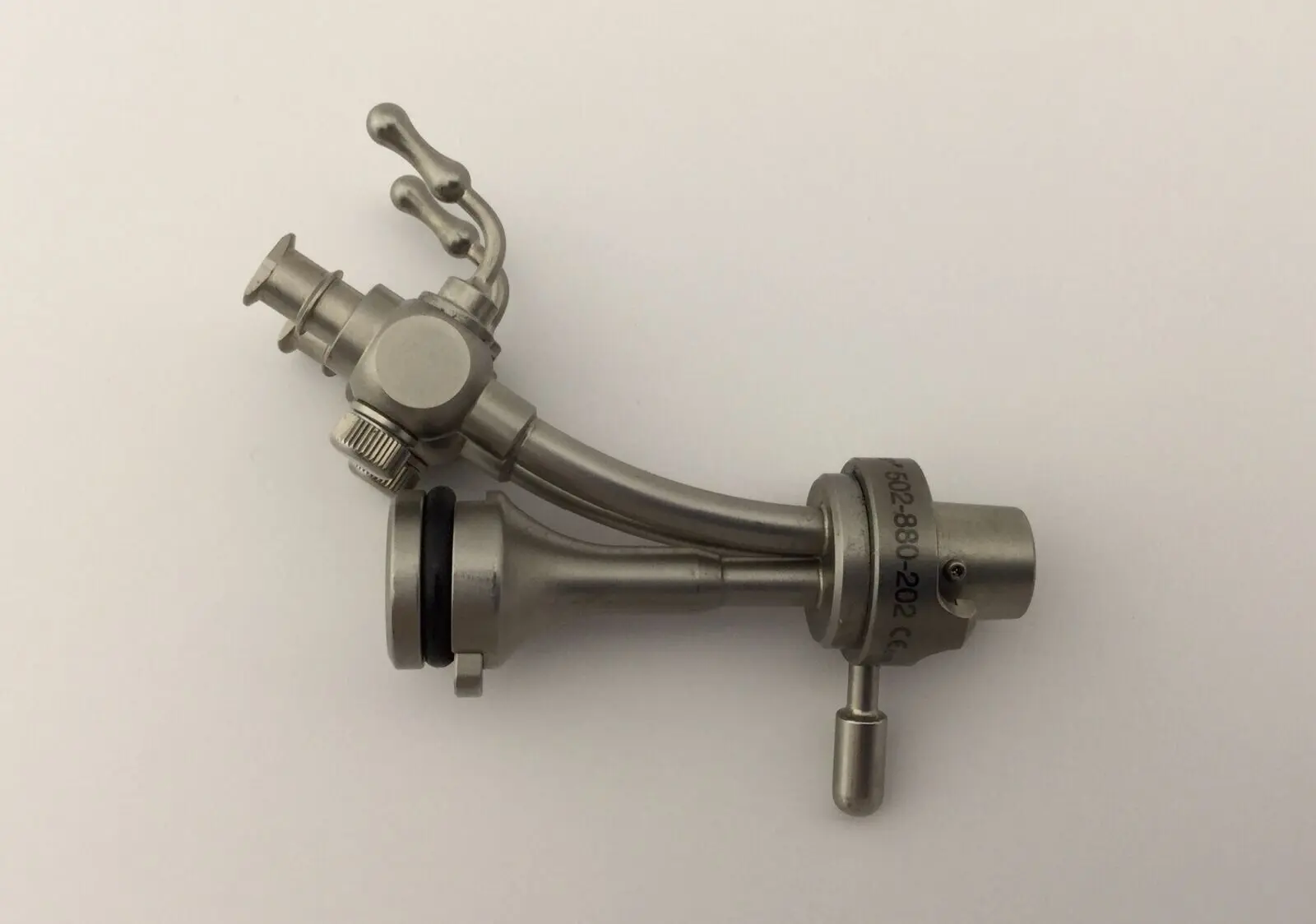

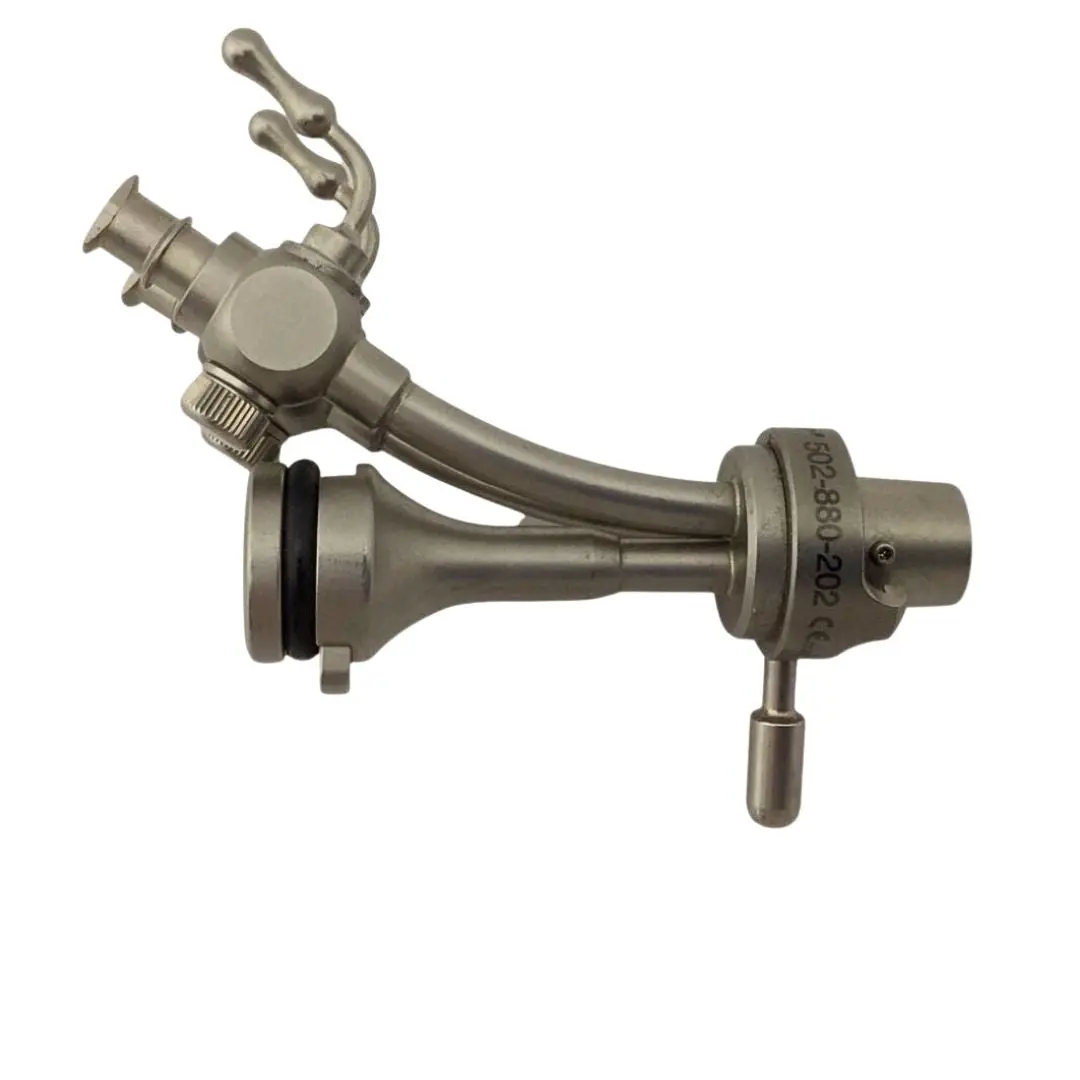

Stryker 502-880-202 Urology Double-Horn Bridge

Stryker Urology Double-Horn Bridge | Dual Accessory Channels | 502-880-202 | Reusable

The Stryker 502-880-202 is a high-performance endoscopic bridge designed to facilitate complex diagnostic and therapeutic cystoscopy. Featuring a specialized double-horn (dual-port) configuration, this bridge serves as the critical interface between a rigid cystoscope sheath and the telescope. It allows for the simultaneous introduction of two auxiliary instruments—such as a guidewire and a biopsy forceps, or a laser fiber and a stone basket—without the need to remove the telescope or lose visualization.

Constructed from medical-grade stainless steel, the 502-880-202 is engineered for a "zero-leak" seal and rigid stability, ensuring that both the optical path and the working channels remain perfectly aligned during high-torque urological maneuvers.

Key Specifications

• Manufacturer: Stryker Endoscopy

• Model / REF: 502-880-202

• Product Type: Urology Double-Horn (Dual-Channel) Bridge

• Configuration: Two Working Ports (Horns) with Luer-Lock compatibility

• Telescope Compatibility: Standard 4mm Rigid Telescopes (0°, 12°, 30°, 70°)

• Material: Surgical Grade Stainless Steel

• Locking Mechanism: Quick-Lock Sheath Coupling

• Cleaning: Fully Autoclavable / Reusable

Technical & Clinical Advantages

• Dual-Channel Workflow Efficiency: The double-horn design is essential for advanced endourology. It allows for "four-handed" surgical techniques, such as stabilizing a stone with a grasper in one port while introducing a lithotripsy fiber through the second, significantly reducing procedural time.

• Precision Optical Alignment: The bridge is precision-machined to hold 4mm telescopes in the exact center of the sheath lumen. This ensures a consistent 360° field of view and prevents "image shadowing" caused by instrument interference.

• Superior Fluidics & Seal: Each horn is designed to accept standard silicone or rubber seals, maintaining bladder distension even when working channels are empty or occupied by small-diameter wires (e.g., 0.035" or 0.038" guidewires).

• Ergonomic "Horn" Geometry: The angled ports are spaced to prevent the handles of auxiliary instruments from crowding each other, providing the surgeon and assistant with ample ergonomic room to manipulate forceps, stents, or fibers.

• Stryker Industrial Durability: Forged to withstand the rigors of high-volume urology clinics, this bridge maintains its locking-pin integrity and seal-seat smoothness through hundreds of sterilization and reprocessing cycles.

Applications

• Advanced Cystoscopy: Simultaneous use of two 5Fr or 7Fr instruments (depending on sheath size).

• Stent Placement: Managing a guidewire in one port while advancing a stent over it through the second.

• Lithotripsy Support: Co-axial use of laser fibers and irrigation/suction devices.

• Retrograde Pyelography: Introducing a catheter while maintaining a secondary port for safety wire placement.

Condition & Quality Assurance

• Status: Used – Good Condition.

• Maintenance: This instrument has been professionally inspected for locking-mechanism fluidity and port patency. The telescope coupling is secure, the sheath-lock is crisp, and the stainless steel surfaces are free of pitting or significant oxidation.

• Professional Standards: With over 25 years of experience in surgical endoscopy and hospital materials, Primis Medical ensures all Stryker rigid instrumentation is function-verified and ultrasonically cleaned prior to shipment.

Shipping & Handling

• Secure Logistics: Shipped in protective, padded packaging to ensure the locking mechanisms and port alignment remain in factory-standard condition during transit.

• Fast Dispatch: Ships within 1 business day.
