Synthes 207.616 4.0mm Cannulated Screw Short Thread/16mm

Synthes 4.0mm Cannulated Screw | Short Thread | 16mm | 207.616

The Synthes 207.616 is a high-precision internal fixation implant engineered for stable anchorage and active interfragmentary compression in cancellous and metaphyseal bone. As a 4.0mm diameter screw with a compact 16mm length, it is a specialized component of the Synthes 4.0mm/4.5mm Cannulated Screw System.

The short-thread design is specifically engineered to function as a lag screw. By ensuring the threads only engage the "far" bone fragment while the smooth proximal shaft glides through the "near" fragment, the screw head draws the two pieces together. This creates high-tension compression across the fracture line, which is essential for promoting primary bone healing.

Key Specifications

• Manufacturer: Synthes (DePuy Synthes)

• Model / REF: 207.616

• Material: 316L Surgical Stainless Steel

• Diameter: 4.0 mm

• Overall Length: 16 mm

• Thread Type: Short Threaded (Lag Design)

• Thread Pitch: 1.75 mm

• Cannulation: 1.35 mm (Compatible with 1.25mm Guide Wires)

• Drive Type: Small Hexagonal Socket

• Features: Self-Drilling, Self-Tapping, Cannulated

• Quantity: 1 Each

Technical & Clinical Advantages

• Precision Guided Placement: The 1.35mm internal bore allows the screw to be delivered over a pre-placed 1.25mm guide wire. This enables the surgeon to confirm the trajectory via fluoroscopy before the screw is seated, facilitating minimally invasive percutaneous placement and reducing soft-tissue disruption.

• Self-Drilling & Self-Tapping Tip: The distal tip features precision-machined cutting flutes that eliminate the need for separate drilling and tapping steps in most cancellous bone applications. This reduces operative time and minimizes instrumentation requirements on the surgical field.

• Low-Profile Periarticular Fixation: At a compact 16mm, this screw is ideal for stabilizing small bone fragments or avulsion fractures where a longer screw would risk over-penetration into the joint space or damage to adjacent soft-tissue structures.

• Optimized Compression Profile: The 1.75mm thread pitch is designed to provide rapid advancement and high pull-out resistance, ensuring that the interfragmentary compression achieved during insertion is maintained throughout the early stages of recovery.

• 316L Stainless Steel Biocompatibility: Forged from vacuum-melted surgical steel, the 207.616 is highly corrosion-resistant and biologically inert, ensuring mechanical reliability throughout the 2026 healing cycle.

Applications

• Foot & Ankle Surgery: Fixation of small malleolar fragments, calcaneal osteotomies, and midfoot fusions.

• Hand & Wrist: Stabilization of distal radius fragments or carpal fractures requiring guided compression.

• Pediatric Orthopedics: Precise fixation of epiphyseal fractures (Salter-Harris) where the guide wire protects the growth plate during planning.

• Small Fragment Trauma: Stabilization of avulsion fractures or small fragments around the elbow, knee, or ankle.

Condition & Quality Assurance

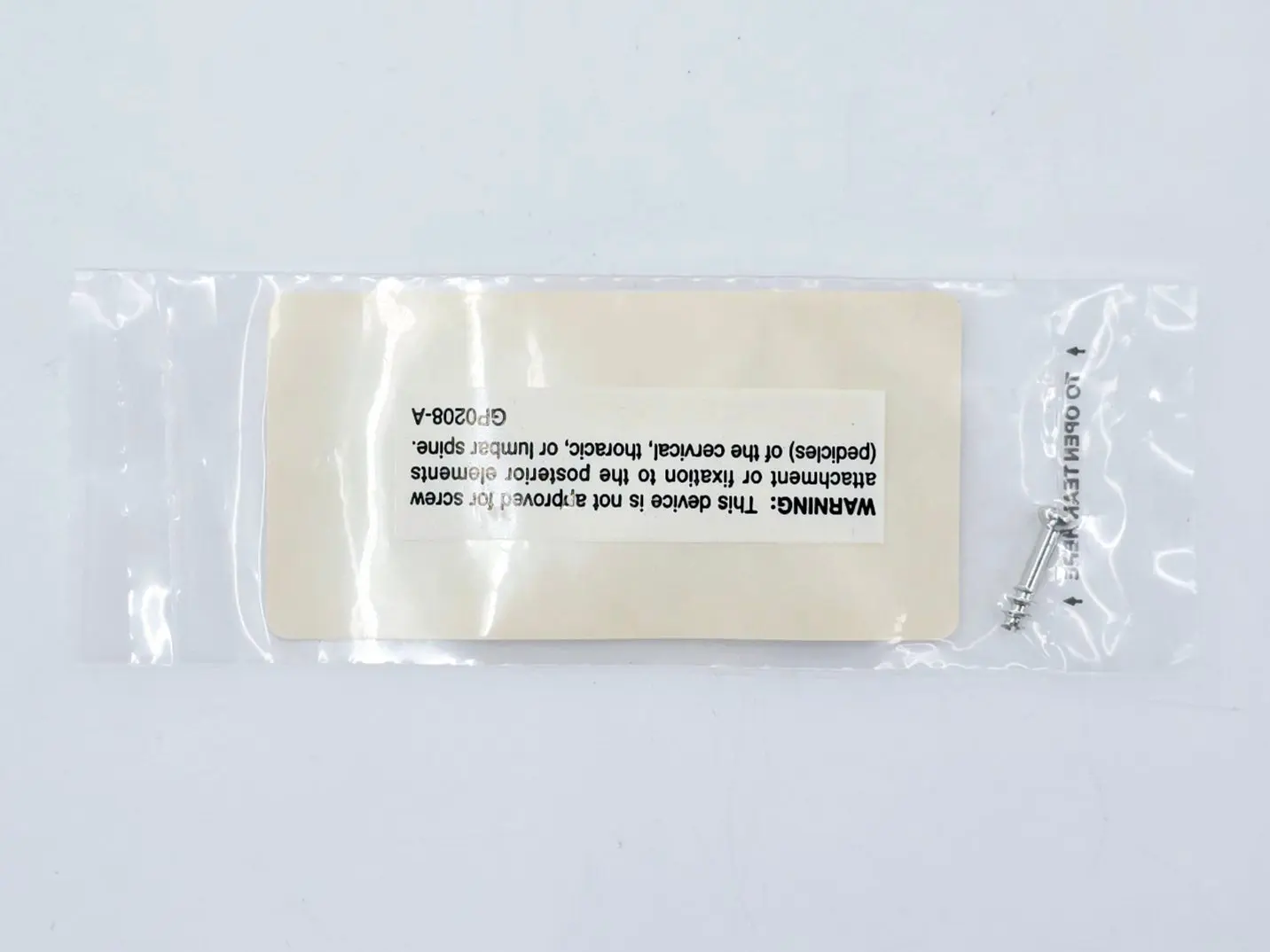

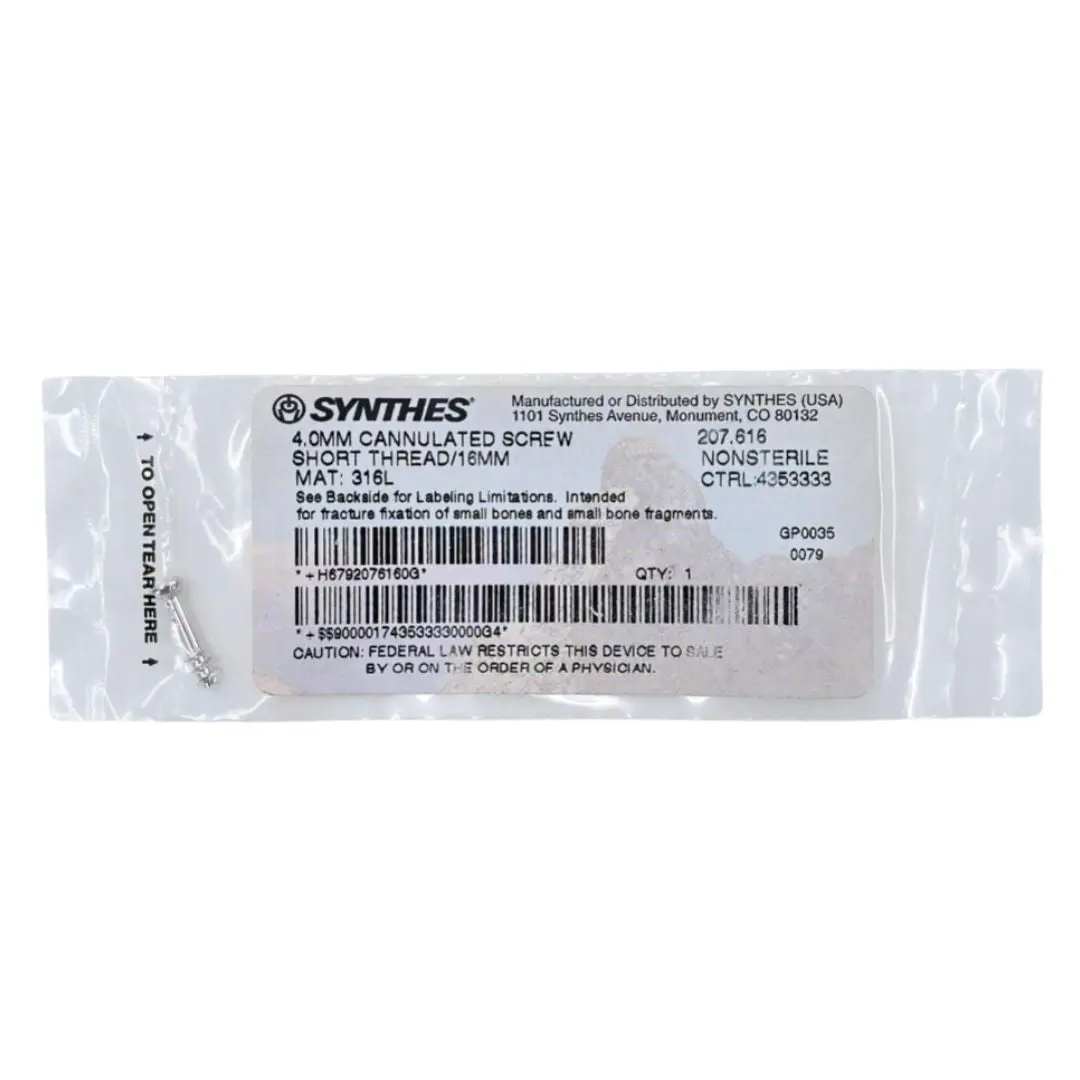

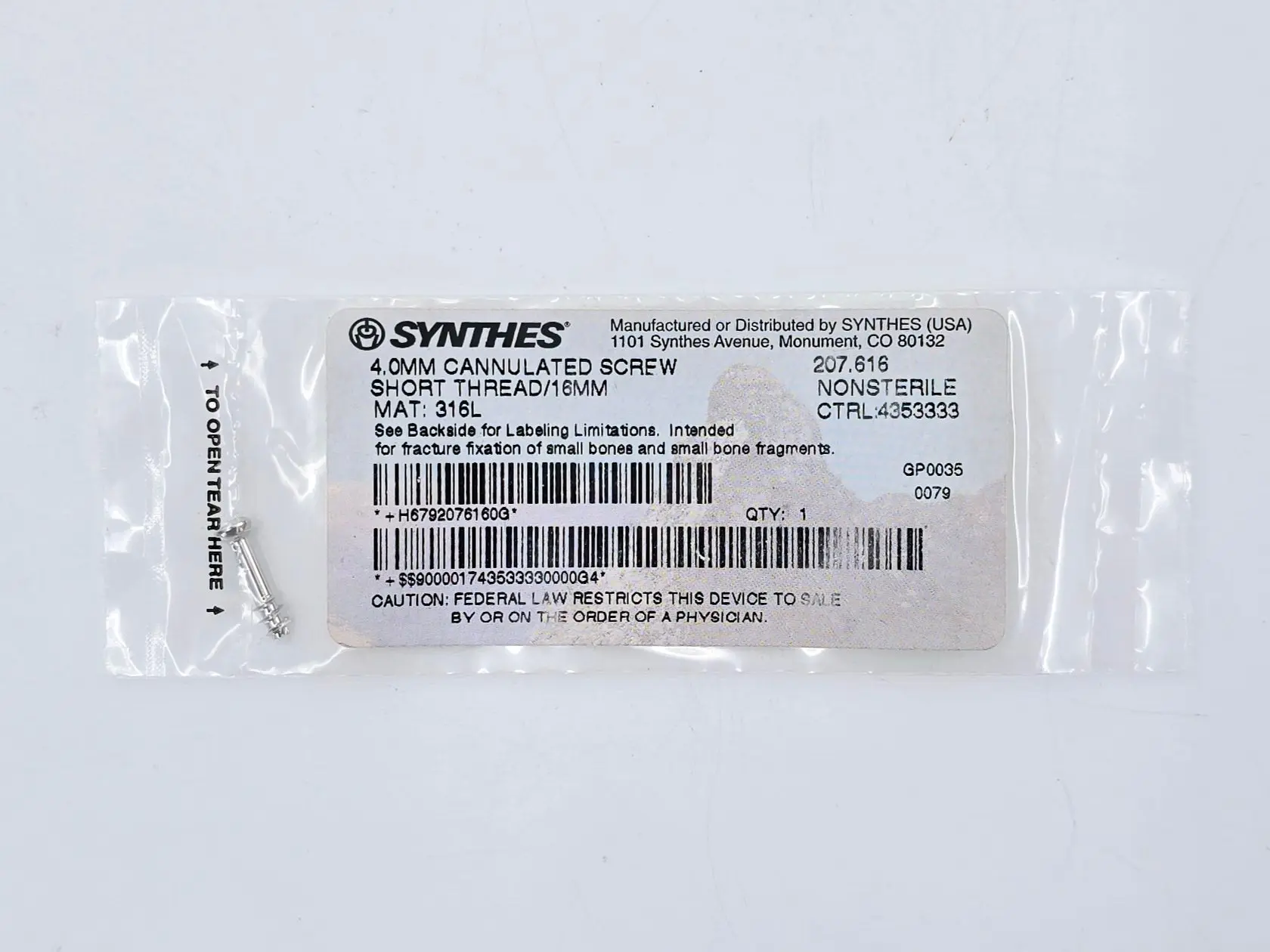

• Status: NEW — Factory Sealed.

• Integrity: This implant is securely housed within its original manufacturer's packaging. Both inner and outer seals are intact, ensuring full material integrity and suitability for clinical use.

• Sterilization Note: This device is provided as a NON-STERILE implant within the packaging. It MUST be properly cleaned and sterilized via validated steam autoclave protocols in accordance with facility guidelines and Synthes’ Instructions for Use (IFU) prior to clinical implantation.

• Professional Standards: With over 25 years of experience in orthopedic logistics, Primis Medical ensures all Synthes implants are handled and stored to maintain their mechanical and chemical precision.

Shipping & Handling

• Secure Logistics: Shipped in protective packaging to ensure the precision-machined 16mm threads and 1.35mm cannulation remain pristine and unobstructed.

• Fast Dispatch: Ships within 1 business day.
