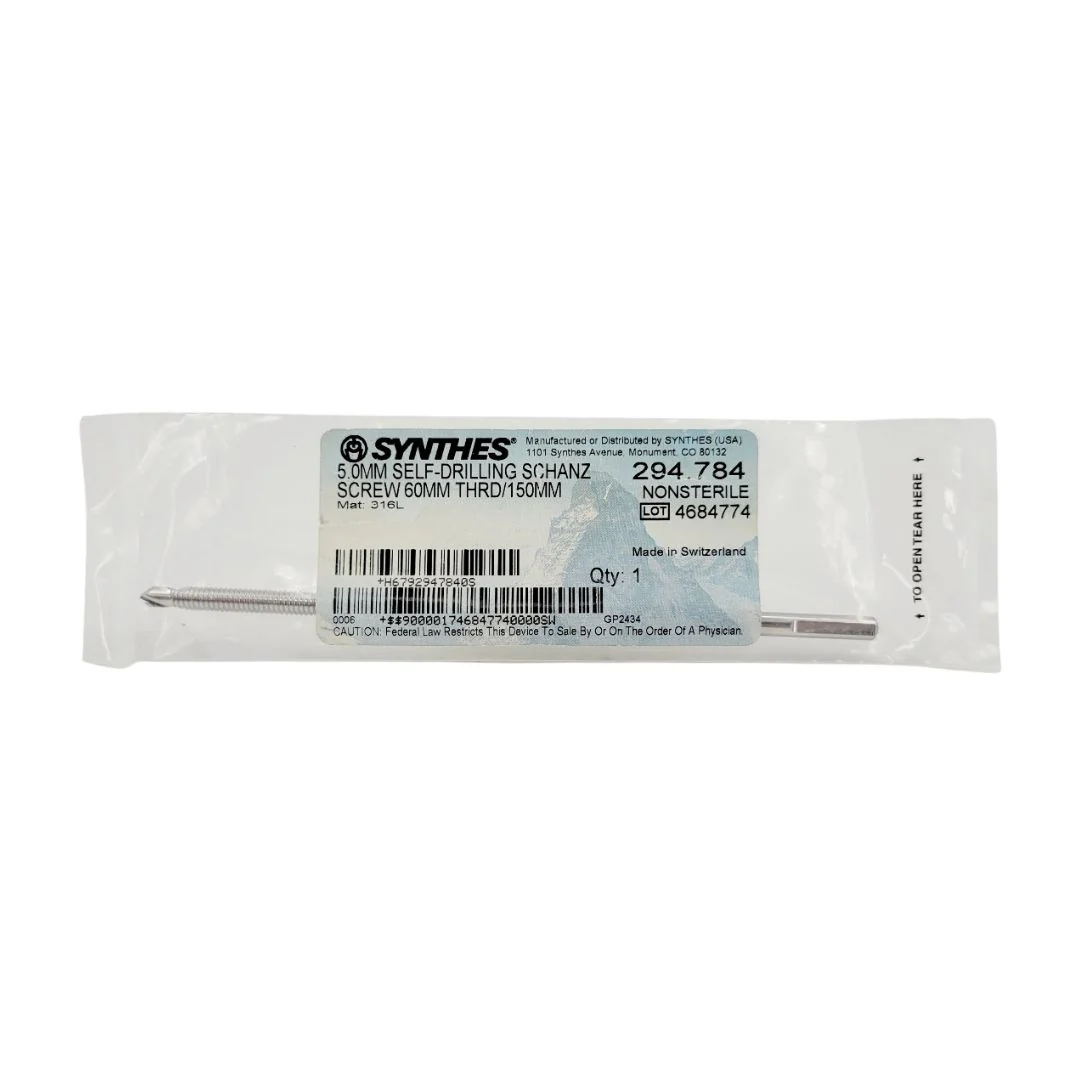

Synthes 294.784 5.0mm Self Drilling Schanz Screw 60mm Thread 150mm

Synthes 5.0mm Self-Drilling Schanz Screw | 60mm Thread | 150mm Length | 294.784

The Synthes 294.784 is a high-performance external fixation pin engineered for rapid and secure anchorage in long bones. As a 5.0mm diameter Schanz screw with a 150mm overall length, it is a foundational component of the Synthes Large External Fixator system. This screw is specifically designed for the stabilization of fractures in the femur, tibia, and humerus.

The "Self-Drilling" designation is a critical mechanical feature. The distal tip is engineered with a high-efficiency cutting flute that eliminates the need for pre-drilling a pilot hole in most clinical applications. This reduces operative time, minimizes the risk of thermal necrosis by reducing friction, and ensures a precise, high-torque interface between the screw and the bone.

Key Specifications

• Manufacturer: Synthes (DePuy Synthes)

• Model / REF: 294.784

• Material: 316L Stainless Steel (Surgical Grade)

• Diameter: 5.0 mm

• Thread Length: 60 mm

• Overall Length: 150 mm

• Tip Style: Self-Drilling / Self-Tapping

• System Compatibility: Large External Fixation (8.0mm Rod System)

• Quantity: Individually Packaged, Sterile

Technical & Clinical Advantages

• Self-Drilling Efficiency: The integrated drill tip allows for "one-step" insertion. This streamlines the surgical workflow in emergency trauma settings (e.g., "damage control" orthopedics) where rapid stabilization is vital to patient outcomes.

• Radial Prestress Technology: The screw geometry is designed to create a slight radial compression upon insertion. This "prestress" enhances the pin-to-bone interface, significantly reducing the risk of pin loosening and subsequent pin-track infection.

• 60mm Threaded Zone: The extensive 60mm thread length ensures that both the near and far cortices are fully engaged, providing a stable "bicortical" construct that can withstand the significant bending and rotational forces encountered in the lower extremities.

• High-Torque Drive: The proximal end is designed for a secure interface with manual or power drivers, ensuring efficient energy transfer even when penetrating dense femoral cortical bone.

• Biocompatible Strength: Forged from cold-worked 316L stainless steel, the 294.784 offers the high fatigue resistance necessary for long-term external fixation (weeks to months) without the risk of hardware failure.

Applications

• Damage Control Orthopedics: Rapid temporary stabilization of high-energy femoral or tibial fractures in polytrauma patients.

• Definitive External Fixation: Long-term stabilization of open fractures (Gustilo-Anderson Grade II/III) where internal fixation is contraindicated due to infection risk.

• Pelvic Stabilization: Anchorage into the iliac crest or supra-acetabular region for anterior pelvic frames.

• Pilon Fractures: Providing a stable proximal anchor for spanning ankle frames.

Condition & Quality Assurance

• Status: NEW — Factory Sealed & Sterile.

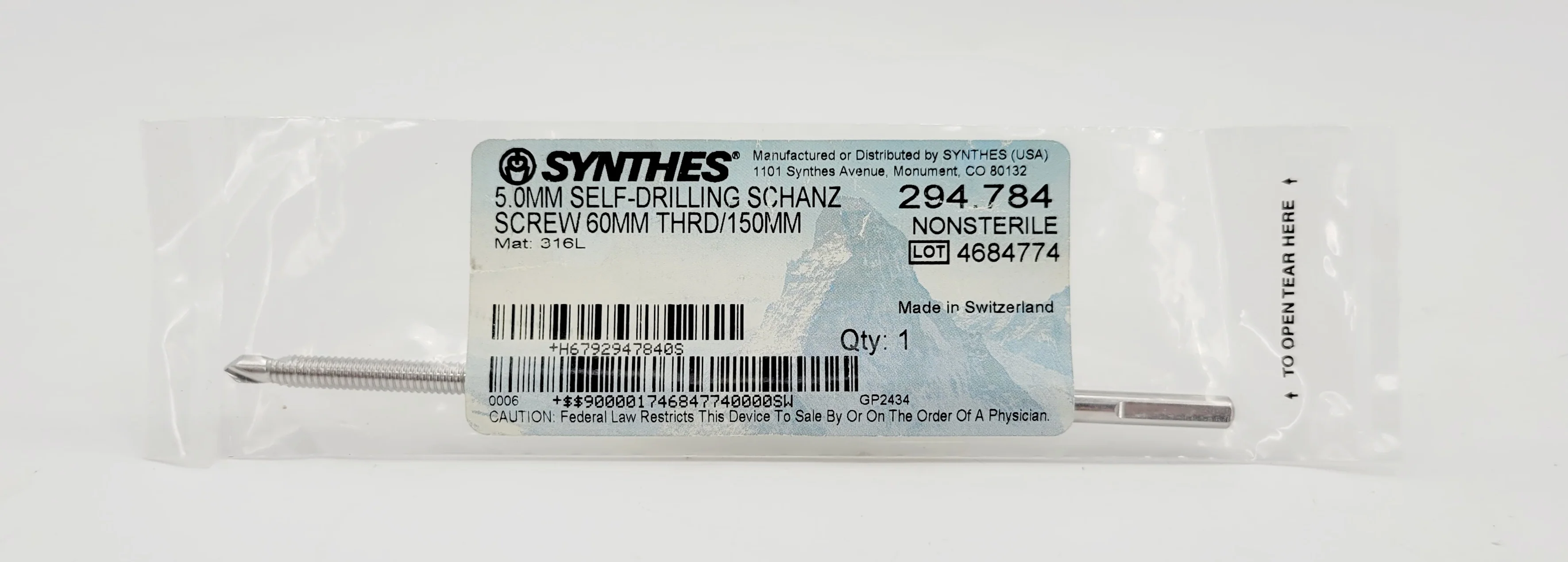

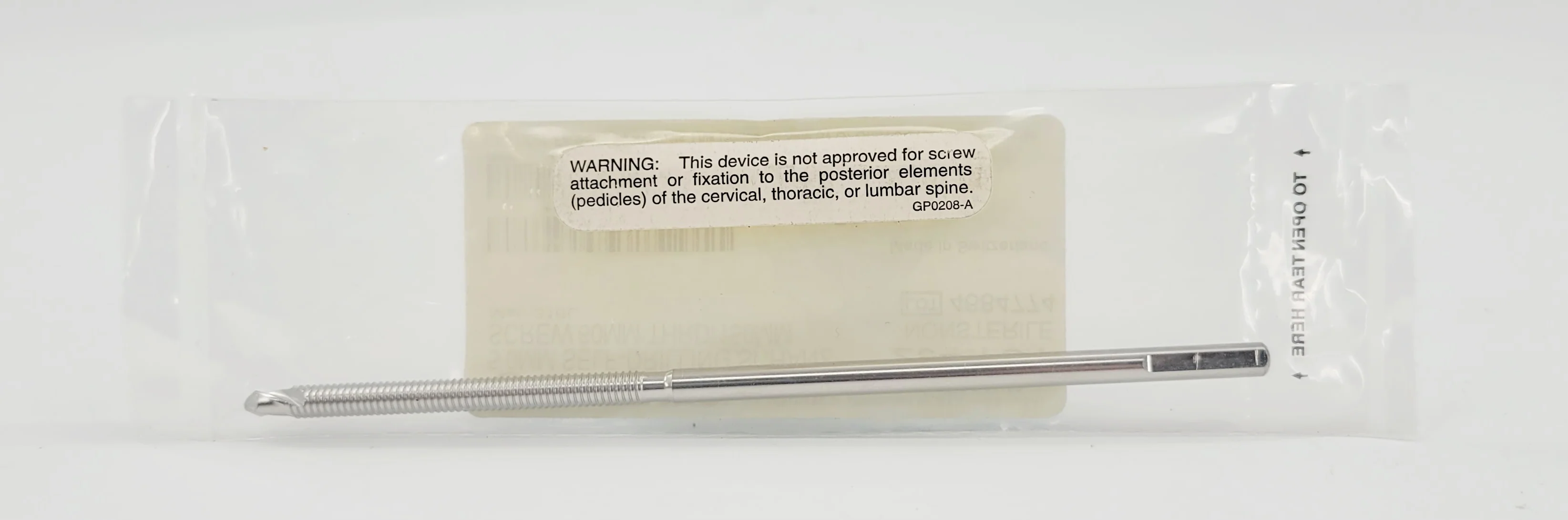

• Integrity: This implant is securely packaged within its original manufacturer's sterile peel-pouch. The packaging is intact, ensuring the product's sterility, material integrity, and full lot traceability for clinical implantation in 2026.

• Professional Standards: With over 25 years of experience in surgical hardware, Primis Medical ensures all external fixation components are stored in climate-controlled environments to preserve their mechanical and sterile integrity.

Shipping & Handling

• Secure Logistics: Shipped in reinforced packaging to ensure the 150mm shaft remains perfectly straight and the sterile barrier is never compromised.

• Fast Dispatch: Ships within 1 business day.
