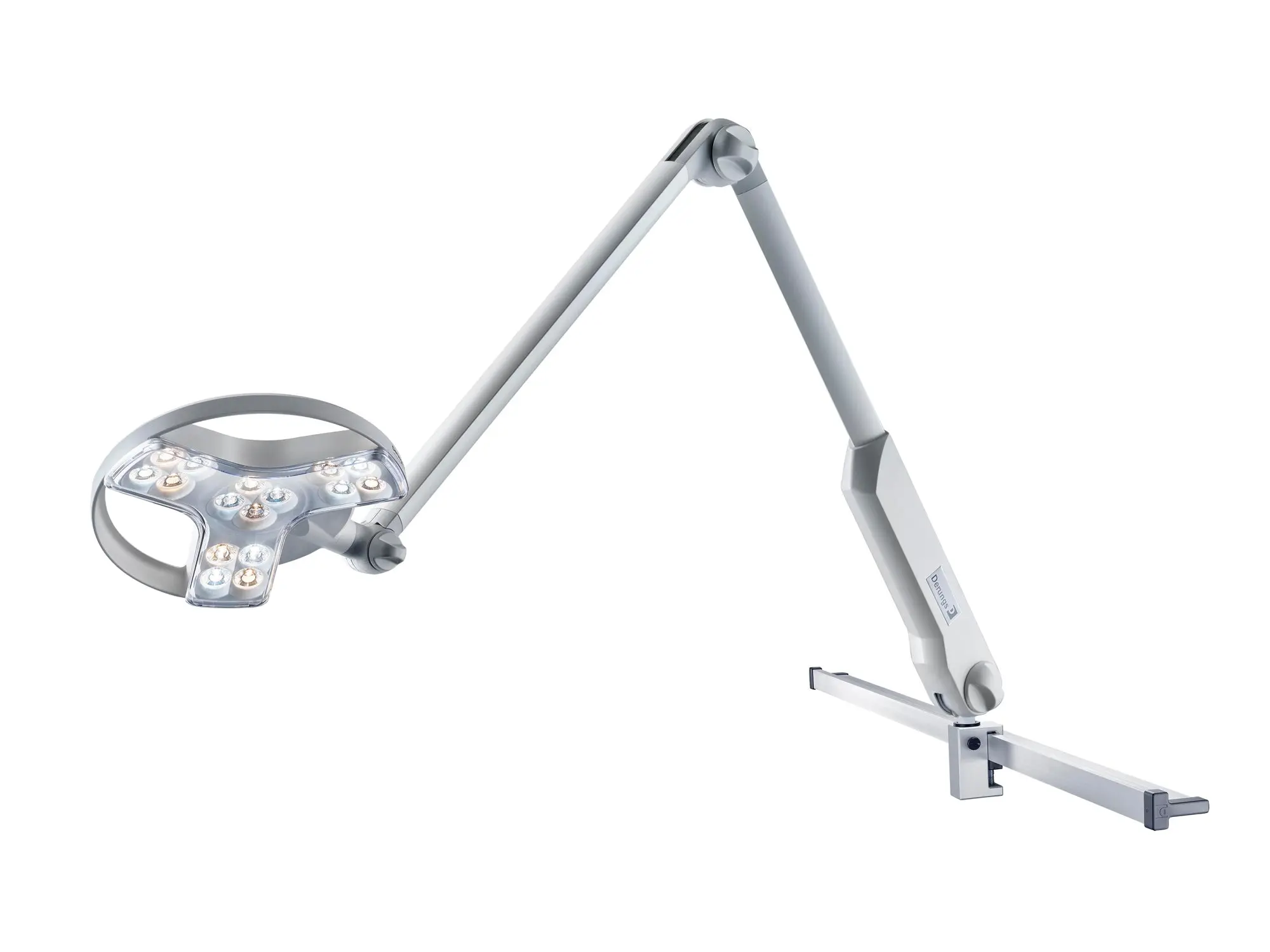

Waldmann VISIANO 20 LED Exam Light 20-2 P TX, Double Arm - Rail Mount

Waldmann VISIANO 20-2 P TX | 60,000 Lux | Rail Mounted Double Arm

The Waldmann VISIANO 20-2 P TX (D15461150) is a premier LED examination light engineered for 2026 diagnostic standards. Delivering 60,000 lux at 0.5 meters, this model is distinguished by its dual color temperature engine, allowing clinicians to switch between 3500K (warm) and 4500K (cool) light shades to optimize contrast for different tissue types.

This version is specifically configured with a heavy-duty rail mount bracket and a high-reach 42.5-inch double-arm system, making it an essential component for facilities utilizing standard medical rail systems (e.g., Fairfield or DIN rails) to maintain a flexible and organized clinical workspace.

Key Specifications

• Manufacturer: Waldmann (Derungs)

• Model: VISIANO 20-2 P TX (Rail Mount Version)

• Part Number: D15461150

• Light Intensity: 60,000 Lux at 0.5 meters

• Color Temperature: Adjustable (3500K and 4500K)

• Dimming: 4-Stage (Integrated into light head)

• Mounting: Rail Mount (Articulating double arm)

• Protection Rating: IP 20 (Housing) / IP 43 (Light Head)

Technical & Clinical Advantages

• Dual-Spectrum Versatility: The ability to toggle color temperatures improves diagnostic accuracy:

  • 3500K: Enhances red and warm tones, ideal for identifying subtle inflammatory responses or vascular patterns.

  • 4500K: Provides a high-contrast cool white light, perfect for standard surgical exams and general diagnostics.

• Diamond Cluster Optics: Features 16 premium LEDs with 365 fine slats that provide optimal color mixing and a perfectly homogeneous 8.3-inch (21 cm) light field. This unique design reduces shadowing and ensures uniform brightness across the treatment site.

• 360° Turnover Axis: The light head features a unique rotational axis that allows for continuous 360° movement without a physical stop. This ensures that the beam can be positioned precisely at any angle without the "drift" associated with less sophisticated models.

• Sanitized® Hygiene Function: The luminaire housing and control panel incorporate antimicrobial silver-ion technology. In laboratory testing, this biocide inhibited the growth of 99% of bacteria and microorganisms, providing a critical secondary layer of defense in high-sensitivity areas like ICUs and neonatal wards.

• Ergonomic Double-Arm Reach: The spring-balanced friction joints and 42.5-inch articulating arm provide an extensive operating radius, allowing for head-to-toe examination capability from a single rail point.

• Enclosed Design: The sleek, fully enclosed housing prevents the formation of dirt and allows for rapid, safe sanitization with hospital-grade disinfectant sprays (IP43 head rating).

Ideal Applications

• Veterinary Clinics: Excellent for diagnostic exams and minor dental or soft-tissue interventions where rail-mounted floor space is at a premium.

• Specialty Medical Offices: Dermatology, ENT, and Gynecology suites requiring high-contrast color accuracy.

• ICU & Neonatology: Small footprint and high hygiene standards make it ideal for sensitive hospital wards.

• ER & Trauma Bays: Quick-positioning rail mount allows the light to be moved along the wall to follow the patient’s bed position.

Condition & Quality Assurance

• Status: NEW — Factory Direct Quality.

• Integrity: Includes the VISIANO 20-2 P TX light head, 42.5-inch double-arm spring-balanced system, and the dedicated rail mount bracket (D13269000).

• Maintenance: Maintenance-free housing and long-life LED engine (estimated 50,000+ hours), eliminating the need for bulb replacements.

• Standards Compliance: Fully compliant with IEC 60601-1 and 60601-2-41 technical standards for medical electrical equipment safety.

Shipping & Handling

• Secure Logistics: Shipped in reinforced medical-grade packaging to ensure the precision-balanced friction joints and optics remain in perfect calibration during transit.
