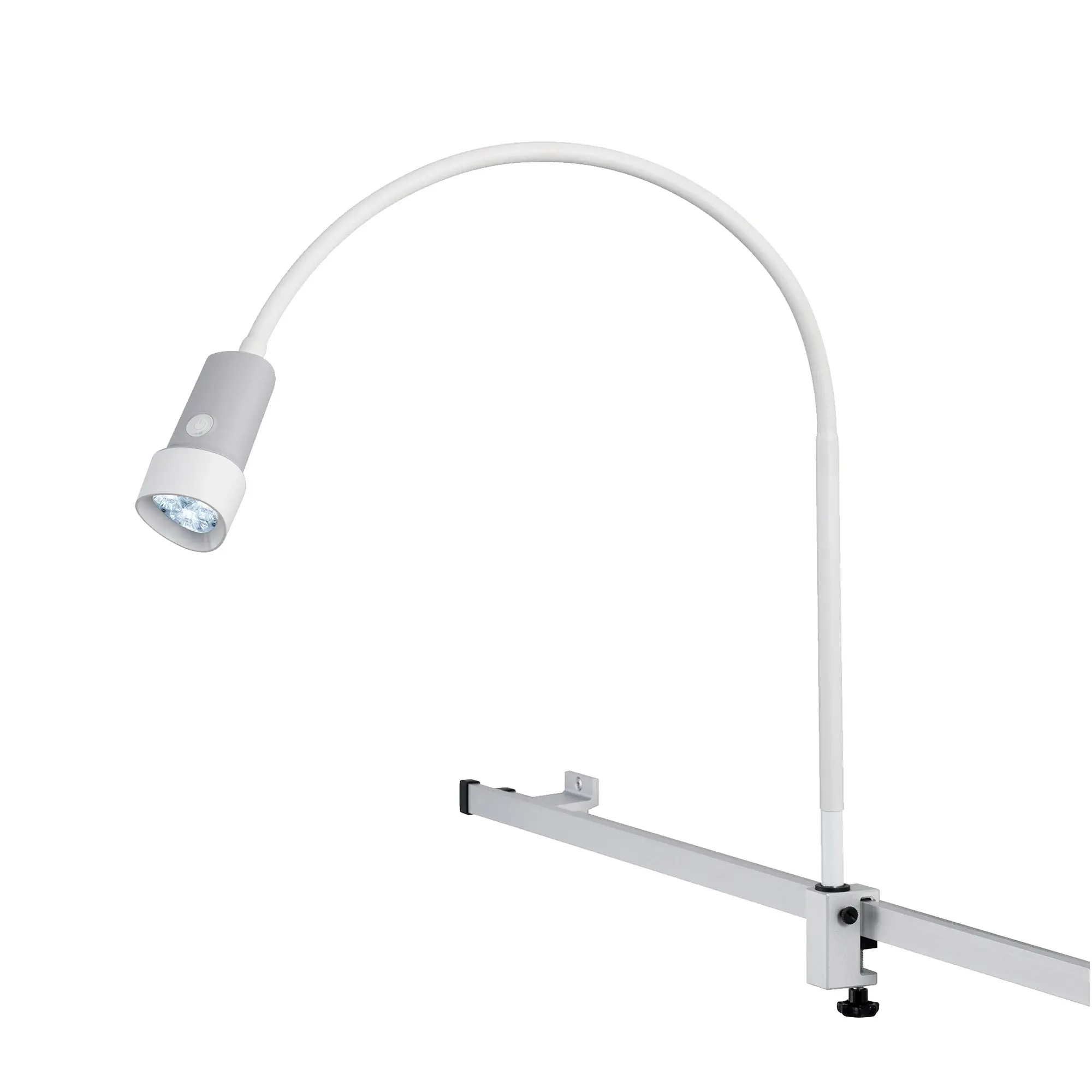

Waldmann HALUX N30-1 P SH Exam Light, 8W, 4400K, GOOSENECK, Dimmable, Rear Mount, Rail Mount

Waldmann HALUX N30-1 P SH | 30,000 Lux | Rail Mounted Gooseneck

The Waldmann HALUX N30-1 P SH (D15991150) is a high-performance LED examination light designed for facilities that require clinical excellence and workspace organization on a budget. Delivering 30,000 lux at 0.5 meters, this model provides a homogeneous 7.1-inch light field, ensuring clear visibility for versatile everyday diagnostic tasks.

By utilizing a rail mount configuration, this unit maximizes floor and wall clearance. The light can be slid horizontally along standard clinical rail systems (DIN/Fairfield) to follow the practitioner's workflow, making it an ideal "bedside-ready" solution.

Key Specifications

• Manufacturer: Waldmann (Derungs)

• Model: HALUX N30-1 P SH (Rail Version)

• Part Number: D15991150

• Light Intensity: 30,000 Lux at 0.5 meters

• Color Temperature: Fixed 4400 K (Neutral White)

• Dimming: Continuous (Stepless adjustment via touch panel)

• Arm Reach: 38.6-inch (98 cm) Gooseneck

• Mounting: Rail Mount bracket with 16 mm universal pin interface

Technical & Clinical Advantages

• Ergonomic Rear-Mount (SH) Head: The rear-mount connection provides a traditional handling profile. By attaching the arm to the back of the head, the practitioner’s hands remain clear of the light beam, providing an unobstructed "spotlight" effect that is highly preferred for general physical exams and wound care.

• Large, Homogeneous Light Field: Utilizing seven high-efficiency LEDs and specialized faceted reflectors, the N30 ensures uniform light distribution across a large 18 cm field. This design minimizes shadows and peripheral glare, significantly reducing eye strain during extended diagnostic sessions.

• Stepless Dimmable Interface: The intuitive touch panel located directly on the luminaire head allows for continuous dimming. This enables clinicians to soften the light for sensitive examinations or maximize intensity for high-contrast minor procedures.

• Space-Saving Rail Mobility: The rail mount allows the light to be moved along the equipment rail, keeping it out of the way of monitors and life-support equipment when not in use, yet easily accessible for immediate examinations.

• Drift-Free Positioning: The 38.6-inch flexible arm is built with high-quality internal friction joints. It allows for fluid, one-handed positioning while maintaining absolute stability once set.

• Maintenance-Free Swiss Design: Advanced LED modules eliminate the need for bulb replacements and consume minimal energy. Designed by Derungs, this unit is backed by a 5-year warranty on all electronic components.

• Sealed Hygienic Construction: The IP20-rated housing features a seamless, enclosed design. The smooth surfaces facilitate rapid and thorough disinfection with standard hospital-grade wipes, meeting 2026 infection control protocols.

Ideal Applications

• ICU & Hospital Wards: Rail mounting keeps the floor clear and allows the light to share the same equipment rail as patient monitors and infusion pumps.

• General Practice & Triage: A durable, easy-to-sanitize light for high-traffic trauma bays.

• Dermatology: High-fidelity color rendering for accurate visualization of tissue and pigment variations.

• Veterinary Dental Suites: Perfect for dental tables where rail-mounted lighting follows the patient’s head position during procedures.

Condition & Quality Assurance

• Status: NEW — Factory Direct Quality.

• Integrity: Includes the HALUX N30-1 P SH light head, gooseneck arm system, and the dedicated medical rail mount bracket (D13269000).

• Standards Compliance: Fully compliant with EN 60601-1 and EN 60601-2-41 standards for medical electrical equipment safety.

Shipping & Handling

• Secure Logistics: Shipped in specialized reinforced packaging to ensure the gooseneck friction joints and optics arrive in perfect calibration.
