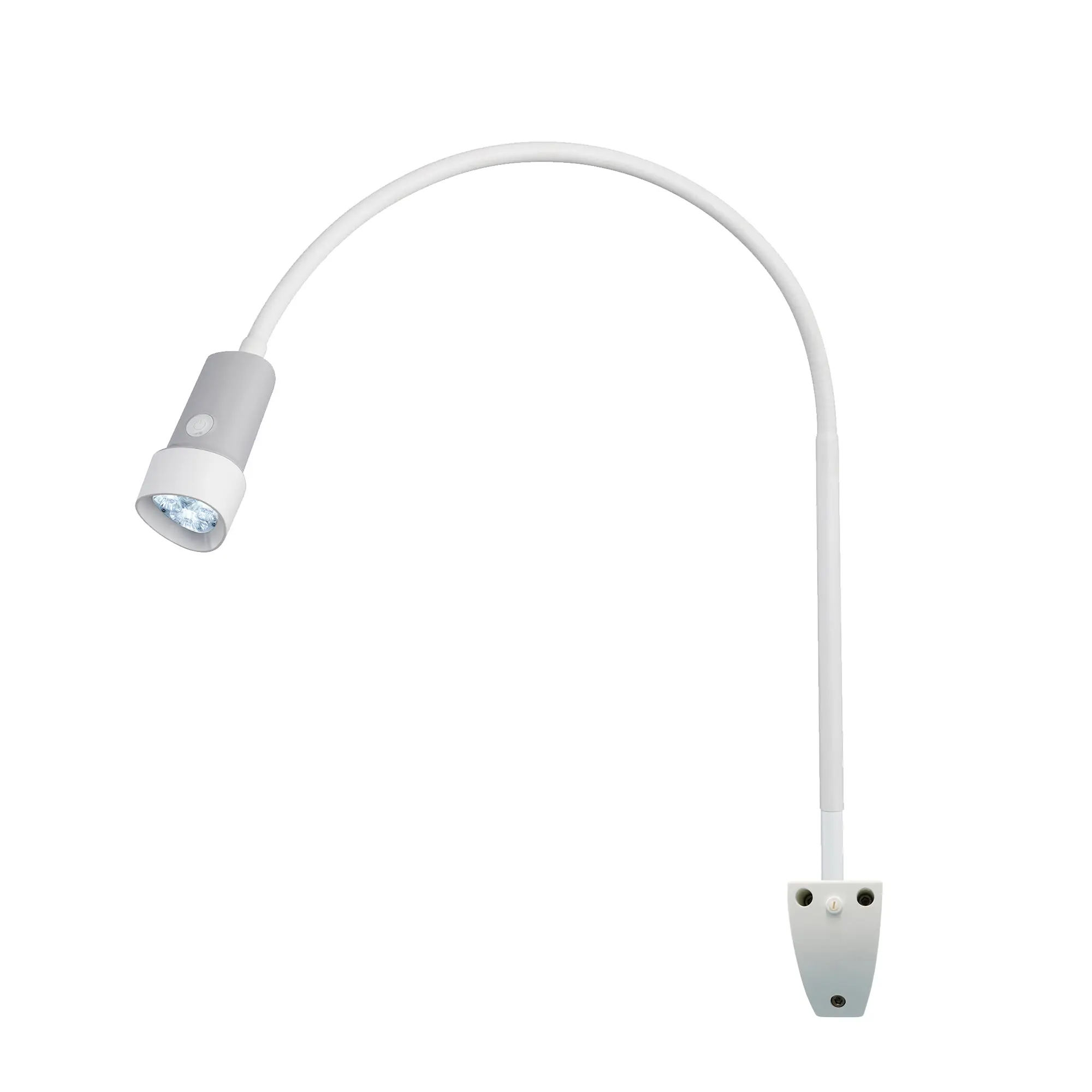

Waldmann HALUX N30-1 P SH Exam Light, 8W, 4400K, GOOSENECK, Dimmable, Rear Mount, Wall Mount

Waldmann HALUX N30-1 P SH | 30,000 Lux | Wall Mounted Gooseneck

The Waldmann HALUX N30-1 P SH (D15991120) is a high-performance, cost-effective LED examination light designed for facilities that demand clinical quality within a streamlined budget. Delivering 30,000 lux at 0.5 meters, this model provides a homogeneous 7.1-inch light field, ensuring clear visibility for a wide range of everyday diagnostic tasks.

This version features a permanent wall mount configuration, making it the ideal choice for small exam rooms or high-traffic areas where floor space must remain unobstructed. The "SH" (Rear-mount Horizontal) head connection provides a traditional handling profile, while the robust 38.6-inch gooseneck provides an extensive operating radius.

Key Specifications

• Manufacturer: Waldmann (Derungs)

• Model: HALUX N30-1 P SH (Wall Version)

• Part Number: D15991120

• Light Intensity: 30,000 Lux at 0.5 meters

• Color Temperature: Fixed 4400 K (Neutral White)

• Color Rendering Index (CRI): $R_a > 93$

• Dimming: Continuous (Stepless adjustment via touch panel)

• Arm Reach: 38.6-inch (98 cm) Gooseneck

• Mounting: Heavy-duty wall bracket with 16 mm universal pin interface

Technical & Clinical Advantages

• Ergonomic Rear-Mount (SH) Head: The rear-mount connection allows the practitioner to manipulate the light head from the back, keeping their hands clear of the light beam. This provides an unobstructed "spotlight" effect, which is highly preferred for general physical exams and wound care.

• Superior Visual Comfort: Utilizing vacuum-coated faceted reflectors and seven premium LEDs, the N30 ensures a uniform light field. This design minimizes shadows and prevents glare, significantly reducing eye strain for the clinician.

• Stepless Dimmable Interface: The intuitive touch panel located on the luminaire head allows for continuous dimming. Practitioners can soften the light for sensitive facial exams or maximize intensity for high-contrast minor procedures.

• Drift-Free Gooseneck Stability: The 38.6-inch flexible arm is built with high-quality internal friction joints. It allows for fluid, one-handed positioning while maintaining absolute stability, ensuring the light remains focused exactly where intended.

• Sealed Hygienic Construction: The luminaire features a seamless, enclosed design (IP20 rated). The smooth exterior surfaces facilitate rapid and thorough disinfection with standard hospital-grade wipes, meeting 2026 infection control protocols.

• Maintenance-Free Swiss Design: Advanced LED modules eliminate the need for bulb replacements and consume minimal energy. Designed by Derungs, this unit is backed by a 5-year warranty on all electronic components.

Ideal Applications

• Primary Care & General Practice: Permanent wall-mounted diagnostic lighting for physical exams and physical therapy assessments.

• Emergency & Triage: A durable, easy-to-sanitize wall light for high-traffic trauma bays where floor space is limited.

• Dermatology: High-fidelity color rendering ($R_a > 93$) for accurate visualization of tissue and pigment variations.

• Veterinary Clinics: Excellent for wall-side diagnostic tables and localized treatment areas.

Condition & Quality Assurance

• Status: NEW — Factory Direct Quality.

• Integrity: Includes the HALUX N30-1 P SH light head, gooseneck arm system, and the dedicated white wall mounting bracket.

• Standards Compliance: Fully compliant with EN 60601-1 and EN 60601-2-41 standards for medical electrical equipment safety.
