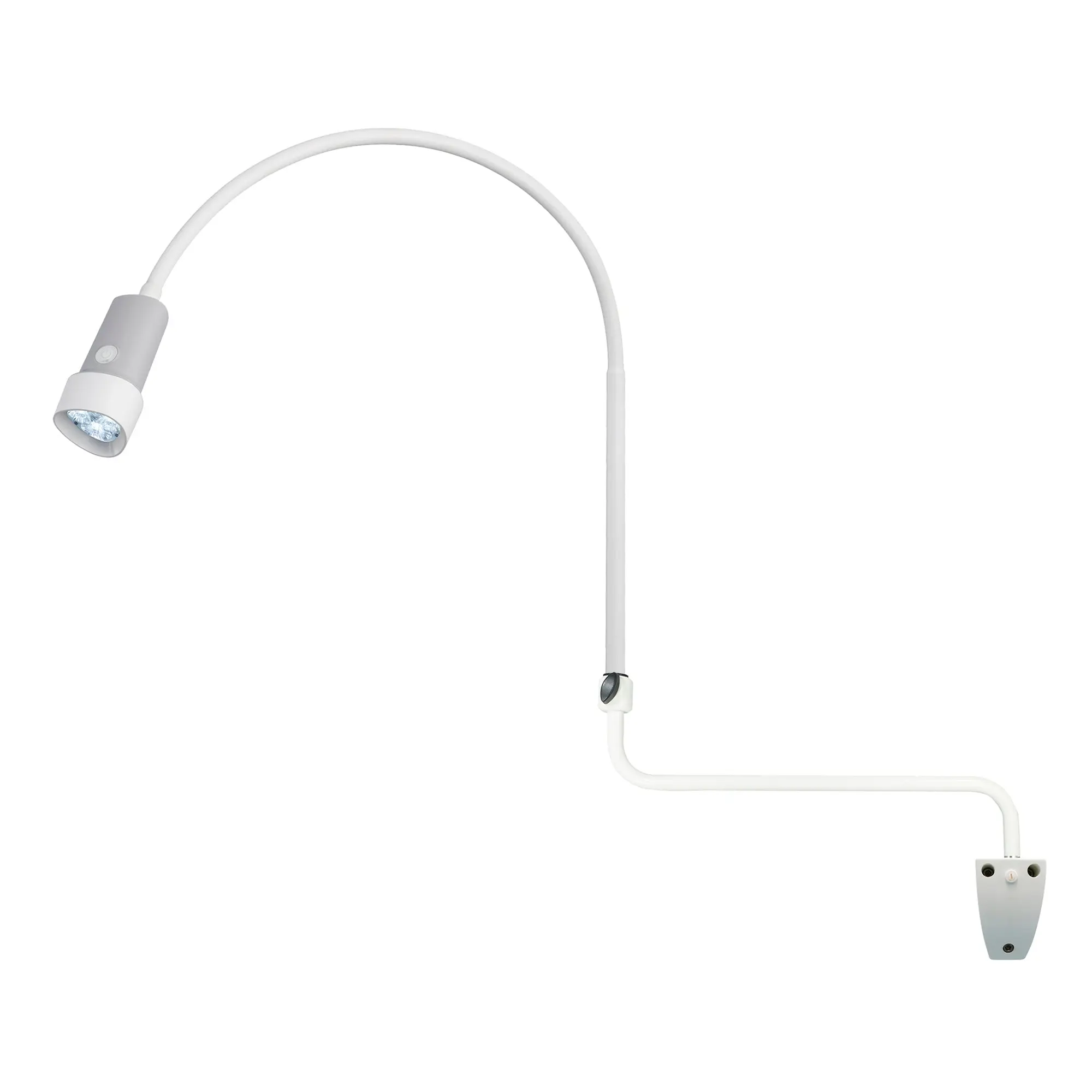

Waldmann HALUX N30-1 P SH Exam Light, 8W, 4400K, GOOSENECK, Dimmable, Rear Mount, Wall Mount, EXT Arm

Waldmann HALUX N30-1 P SH | 30,000 Lux | Wall Extension Mount

The Waldmann HALUX N30-1 P SH (D15991130) represents the most versatile wall-mounted configuration in the cost-effective HALUX N30 series. Delivering 30,000 lux at 0.5 meters, this model is designed for 2026 clinical environments that require the economy of the N30 line but need the extended operating radius typically reserved for high-tier surgical units.

By pairing the 38.6-inch gooseneck arm with an additional articulating extension segment, this unit provides a total reach exceeding 50 inches. This allows the practitioner to navigate around head-wall obstructions or reach the foot of a procedure table while maintaining a zero-floor-footprint.

Key Specifications

• Manufacturer: Waldmann (Derungs)

• Model: HALUX N30-1 P SH (Wall Extension Version)

• Part Number: D15991130

• Light Intensity: 30,000 Lux at 0.5 meters

• Color Temperature: Fixed 4400 K (Neutral White)

• Dimming: Continuous (Stepless adjustment via touch panel)

• Total Operating Radius: Extended reach (~50 inches total)

• Mounting: Wall Extension Mount (Primary bracket + horizontal articulating arm)

Technical & Clinical Advantages

• Extended Articulation: The "EXT Arm" configuration adds a secondary horizontal pivot point. This allows the light to "reach around" stationary equipment such as patient monitors or anesthesia towers, ensuring that the 7.1-inch light field is always perfectly centered on the procedural site.

• Ergonomic Rear-Mount (SH) Head: The rear-mount connection allows the practitioner to manipulate the light head from the back. This keep's the user's hands clear of the light beam, providing an unobstructed "spotlight" effect that is ideal for physical exams, suturing, and wound care.

• Superior Visual Comfort: Utilizing vacuum-coated faceted reflectors and seven premium LEDs, the N30 ensures a uniform light field. This design minimizes peripheral shadows and glare, significantly reducing eye strain during extended diagnostic sessions.

• Stepless Dimmable Interface: The intuitive touch panel on the luminaire head allows for continuous dimming. This enables clinicians to soften the light for sensitive facial exams or maximize intensity for high-contrast minor procedures.

• Maintenance-Free Swiss Design: Advanced LED modules eliminate the need for bulb replacements and consume minimal energy. Designed by Derungs, this unit is backed by a 5-year warranty on all electronic components.

• Sealed Hygienic Construction: The luminaire features a seamless, enclosed design (IP20 rated). The smooth exterior surfaces facilitate rapid and thorough disinfection with standard hospital-grade wipes, meeting modern infection control protocols.

Ideal Applications

• Outpatient Procedure Rooms: Extended reach for suturing and minor surgical prep in rooms with fixed equipment.

• Emergency & Trauma Bays: Robust lighting that can follow the patient's position across the full length of a gurney.

• Veterinary Specialty Clinics: Perfect for reaching across large surgical tables or navigating around bulky diagnostic equipment.

• Primary Care: A versatile "one-light" solution for rooms where the examination area is not immediately adjacent to the wall mounting point.

Condition & Quality Assurance

• Status: NEW — Factory Direct Quality.

• Integrity: Includes the HALUX N30-1 P SH light head, gooseneck arm system, articulating wall extension segment (D13363000), and the dedicated heavy-duty wall bracket.

• Standards Compliance: Fully compliant with EN 60601-1 and EN 60601-2-41 standards for medical electrical equipment safety.

Shipping & Handling

• Secure Logistics: Shipped in specialized reinforced packaging to ensure the extended arm joints and gooseneck friction remain in perfect calibration during transit.
