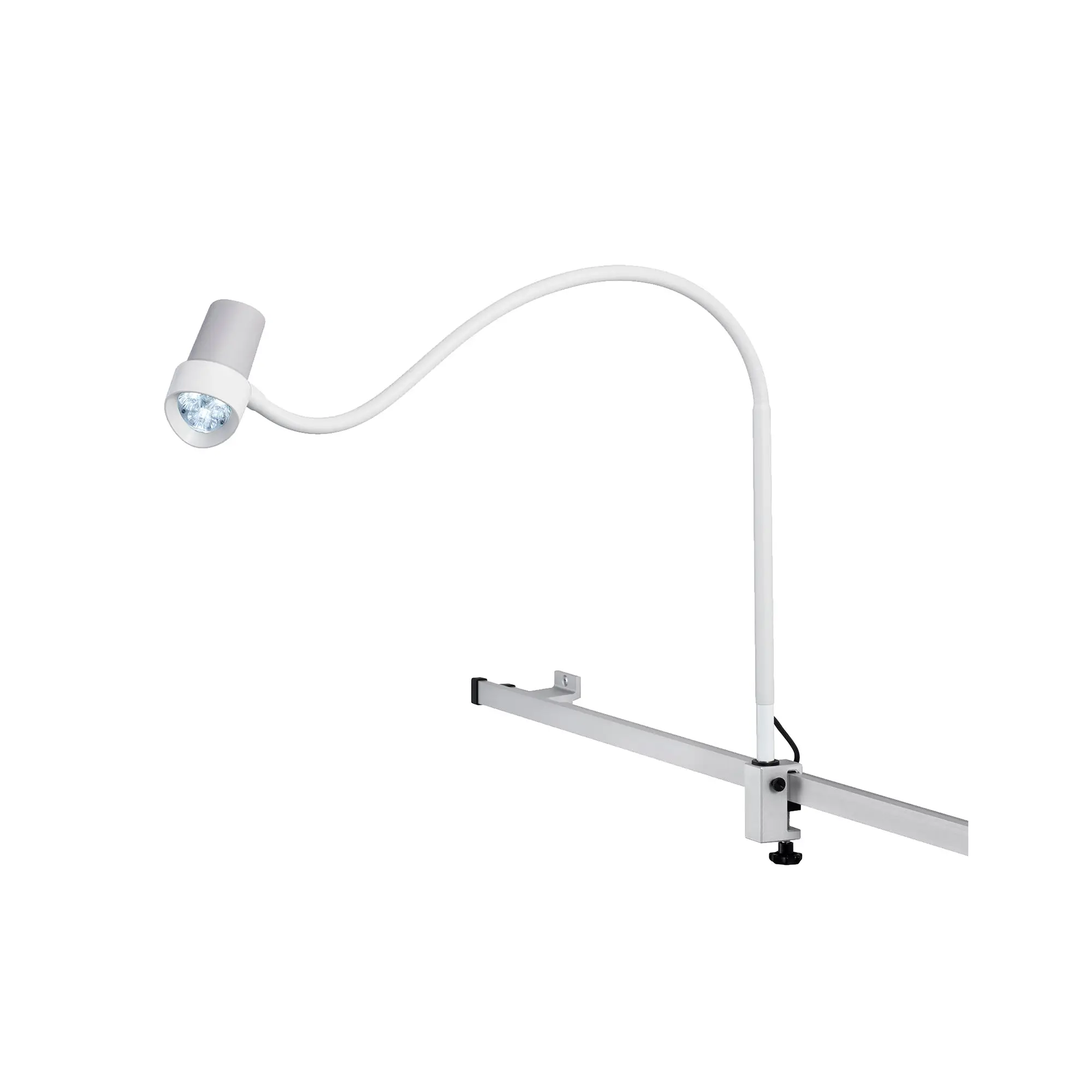

Waldmann HALUX N30-1 P SV Exam Light, 8W, 4400K, GOOSENECK, Dimmable, Side Mount, Rail Mount

Waldmann HALUX N30-1 P SV | 30,000 Lux | Rail Mounted Gooseneck

The Waldmann HALUX N30-1 P SV (D15990150) is the premier solution for facilities that require surgical-grade illumination quality on an integrated clinical rail system. Delivering 30,000 lux at 0.5 meters, this model provides a homogeneous 7.1-inch light field that is perfectly suited for versatile everyday examinations.

By utilizing a rail mount configuration, this unit maximizes workspace organization by allowing the light to be moved horizontally along standard clinical rails (DIN/Fairfield) to follow the practitioner's workflow, keeping both the floor and wall surfaces clear.

Key Specifications

• Manufacturer: Waldmann (Derungs)

• Model: HALUX N30-1 P SV (Rail Version)

• Part Number: D15990150

• Light Intensity: 30,000 Lux at 0.5 meters

• Color Temperature: Fixed 4400 K (Neutral White)

• Color Rendering Index (CRI): $R_a > 93$

• Dimming: Continuous (Stepless adjustment via touch panel)

• Arm Reach: 38.6-inch (98 cm) Gooseneck

• Mounting: Rail Mount bracket with 16 mm universal pin interface

Technical & Clinical Advantages

• Optimized Rail Mobility: The rail-mount configuration allows for quick, tool-free repositioning of the light along the equipment rail. This is essential for 2026 clinical environments where the light must move with the patient's bed or procedure chair.

• Ergonomic Side-Mount Connection: The "SV" side-mount connection allows the practitioner to manipulate the light head from the side, providing better overhead clearance and a clearer line of sight for diagnostic exams and minor procedures.

• Homogeneous Illumination: Utilizing seven high-efficiency LEDs and vacuum-coated faceted reflectors, the N30 produces a large 18 cm light field. This design ensures uniform light distribution, minimizing shadows and reducing eye strain for the clinician.

• Stepless Dimmable Interface: The intuitive touch panel on the luminaire head provides continuous dimming. This enables clinicians to soften the light for sensitive examinations or maximize intensity for high-contrast suturing and wound care.

• Drift-Free Positioning: The 38.6-inch flexible arm is built with high-quality internal friction joints. It allows for fluid positioning while maintaining absolute stability, ensuring the light remains focused exactly where it is needed.

• Maintenance-Free Swiss Design: Advanced LED modules eliminate the need for bulb replacements and significantly lower long-term energy costs. The unit is backed by a 5-year warranty on all electronic components.

• Sealed Hygienic Construction: The IP20-rated housing features a seamless, enclosed design. The smooth surfaces allow for rapid and thorough disinfection with standard hospital-grade wipes.

Ideal Applications

• ICU & Specialty Hospital Wards: Rail mounting allows the light to stay out of the way of monitors and life-support equipment while remaining bedside-ready.

• Dermatology & Minor Procedures: High-fidelity color rendering ($R_a > 93$) for accurate visualization of tissue and lesions.

• Veterinary Dental & Exam Bays: Excellent for dental tables where rail-mounted lighting follows the patient’s head position during procedures.

• Ambulatory & Urgent Care: A durable, easy-to-sanitize light for high-traffic trauma bays.

Condition & Quality Assurance

• Status: NEW — Factory Direct Quality.

• Integrity: Includes the HALUX N30-1 P SV light head, gooseneck arm system, and the dedicated medical rail mount bracket (D13269000).

• Standards Compliance: Fully compliant with EN 60601-1 and EN 60601-2-41 standards for medical electrical equipment safety.

Shipping & Handling

• Secure Logistics: Shipped in specialized reinforced packaging to ensure the gooseneck friction joints and optics arrive in perfect calibration.
