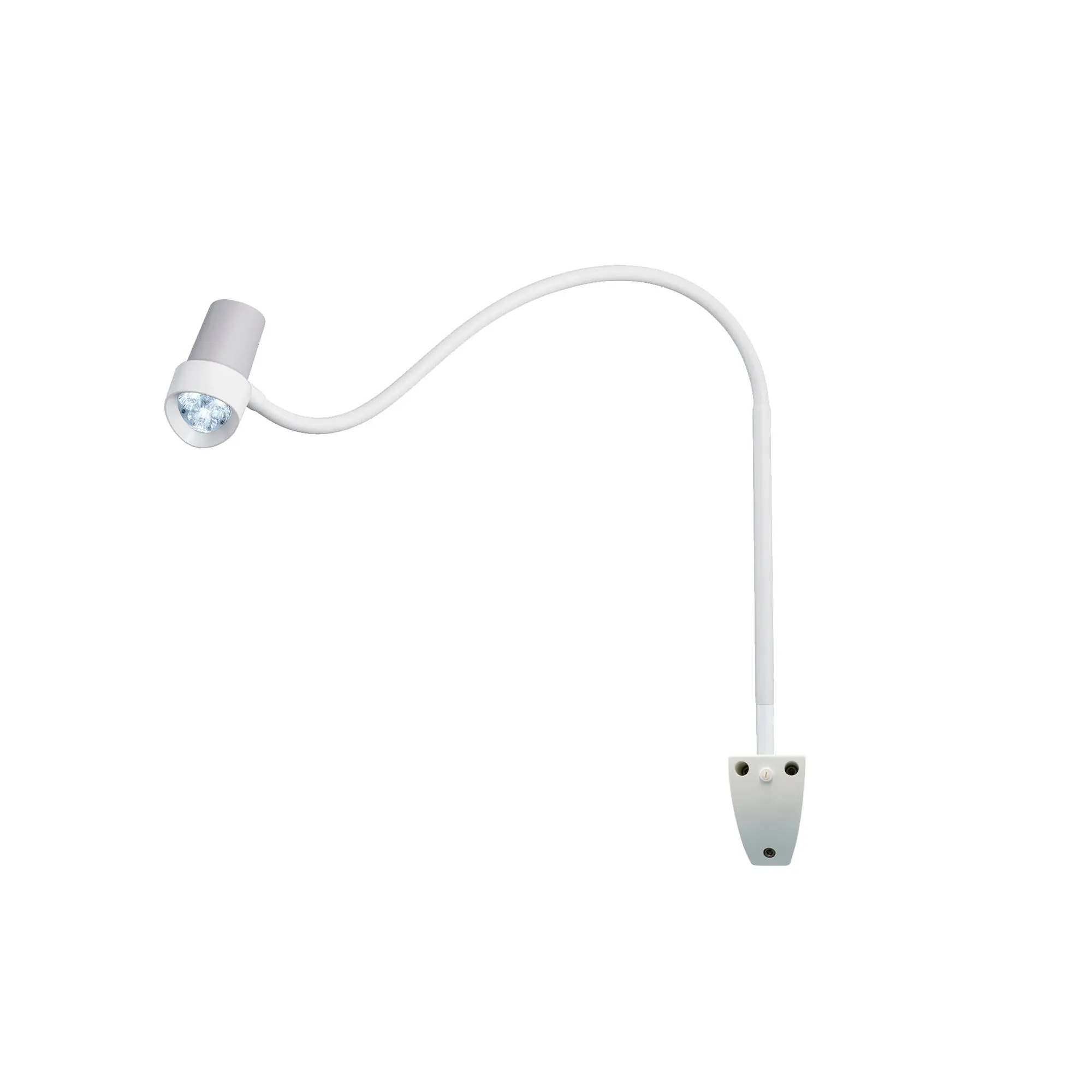

Waldmann HALUX N30-1 P SV Exam Light, 8W, 4400K, GOOSENECK, Dimmable, Side Mount, Wall Mount

Waldmann HALUX N30-1 P SV | 30,000 Lux | Wall Mounted Gooseneck

The Waldmann HALUX N30-1 P SV (D15990120) is a high-performance, cost-effective LED examination light designed for facilities that demand clinical quality within a streamlined budget. Delivering 30,000 lux at 0.5 meters, this model provides a homogeneous 7.1-inch light field, ensuring clear visibility for a wide range of everyday diagnostic tasks.

This version features a permanent wall mount configuration, making it the ideal choice for small exam rooms or high-traffic areas where floor space must remain unobstructed. The "SV" (Side-mount Vertical) head connection allows for a low profile, while the robust 38.6-inch gooseneck provides an extensive operating radius.

Key Specifications

• Manufacturer: Waldmann (Derungs)

• Model: HALUX N30-1 P SV (Wall Version)

• Part Number: D15990120

• Light Intensity: 30,000 Lux at 0.5 meters

• Color Temperature: Fixed 4400 K (Neutral White)

• Dimming: Continuous (Stepless adjustment via touch panel)

• Arm Reach: 38.6-inch (98 cm) Gooseneck

• Mounting: Heavy-duty wall bracket with 16 mm universal pin interface

Technical & Clinical Advantages

• Ergonomic Side-Mount Design: The "SV" side-mount connection allows the practitioner to adjust the light head with a lower profile relative to the examination site. This is particularly useful in ENT, OB/GYN, or veterinary exams where overhead clearance or specific angles of approach are required.

• Large, Homogeneous Illumination: Utilizing seven premium LEDs and vacuum-coated faceted reflectors, the N30 produces a large 7.1-inch (18 cm) light field. This uniform distribution minimizes shadows and glare, significantly reducing eye fatigue for the clinician.

• Stepless Dimmable Interface: The intuitive touch panel located directly on the luminaire head allows for stepless dimming. This enables practitioners to customize the light intensity based on the procedure, from high-contrast suturing to sensitive diagnostic exams.

• Drift-Free Gooseneck Stability: The 38.6-inch flexible arm is engineered with high-quality internal friction joints. It allows for fluid, one-handed positioning while maintaining absolute stability once set, ensuring the light remains focused on the clinical site.

• Sealed Hygienic Construction: The luminaire features a seamless, closed design (IP20 rated) that protects internal components and prevents the accumulation of contaminants. The smooth surfaces allow for rapid and thorough disinfection with standard hospital-grade wipes.

• Maintenance-Free Swiss Design: Advanced LED modules eliminate the need for bulb replacements and provide a service life far exceeding traditional halogen lamps. It includes a 5-year warranty on all electronic components.

Ideal Applications

• Primary Care & General Practice: Permanent wall-mounted diagnostic lighting for daily physical exams and wound care.

• Dermatology & Aesthetics: High-fidelity color rendering for accurate tissue assessment and pigment analysis.

• Urgent Care & Triage: A durable, easy-to-sanitize wall light for high-traffic trauma bays where floor space is limited.

• Veterinary Clinics: Excellent for wall-side exam tables and localized treatment areas.

Condition & Quality Assurance

• Status: NEW — Factory Direct Quality.

• Integrity: Includes the HALUX N30-1 P SV light head, gooseneck arm system, and the dedicated heavy-duty wall mounting bracket.

• Standards Compliance: Fully compliant with EN 60601-1 and EN 60601-2-41 standards for medical electrical equipment safety.

Shipping & Handling

• Secure Logistics: Shipped in specialized reinforced packaging to ensure the gooseneck friction joints and optics remain in perfect calibration.
