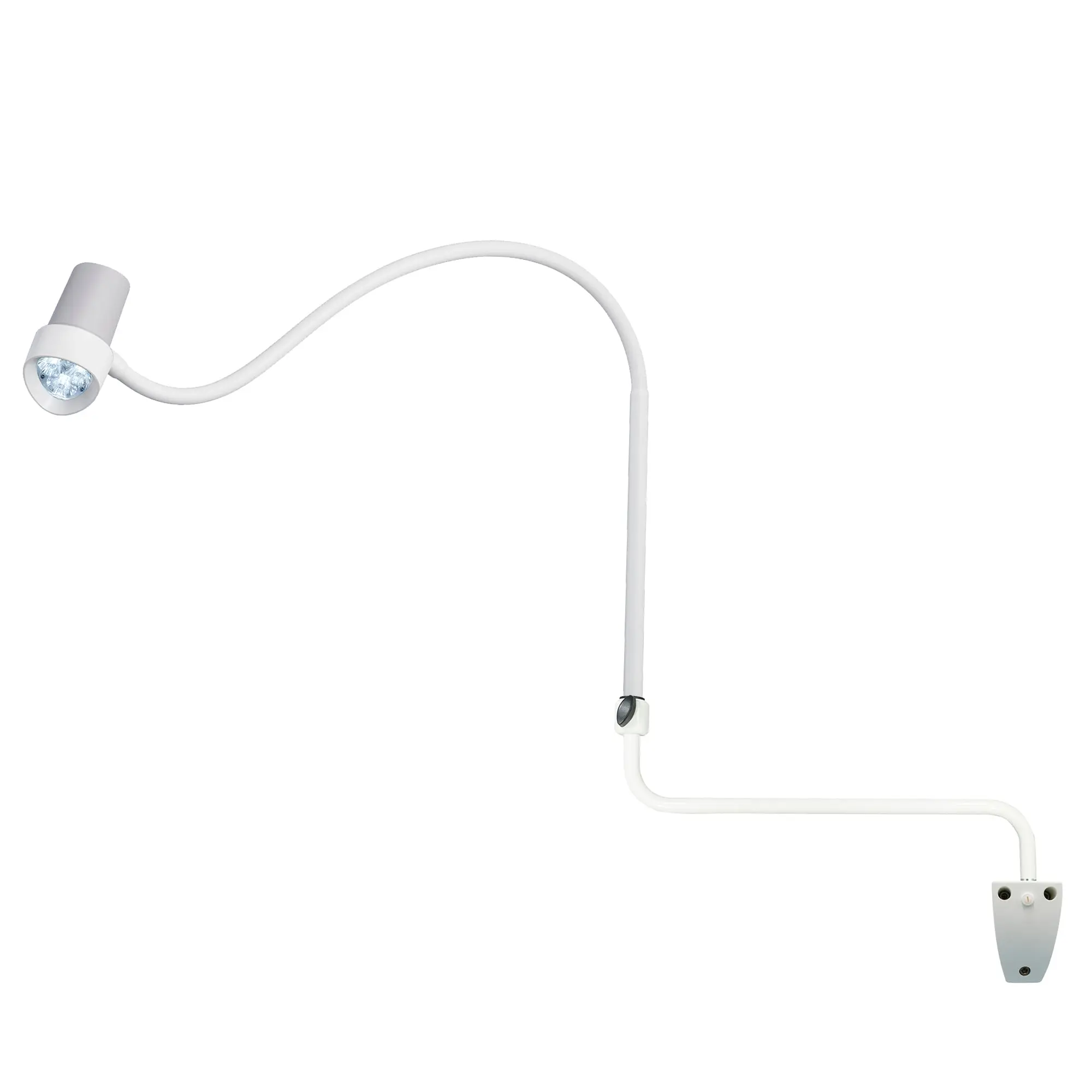

Waldmann HALUX N30-1 P SV Exam Light, 8W, 4400K, GOOSENECK, Dimmable, Side Mount, Wall Mount, EXT Arm

Waldmann HALUX N30-1 P SV | 30,000 Lux | Wall Extension Mount

The Waldmann HALUX N30-1 P SV (D15990120 + Extension) is the most flexible configuration of the cost-effective HALUX N30 series. Delivering 30,000 lux at 0.5 meters, this model is designed for clinical environments that require the economy of the N30 line but need the extended operating radius typically reserved for high-tier surgical lights.

By pairing the 38.6-inch gooseneck arm with a secondary articulating extension arm, this unit can reach across wide examination tables or maneuver around wall-mounted monitors and diagnostic equipment, all while maintaining a zero-floor-footprint.

Key Specifications

• Manufacturer: Waldmann (Derungs)

• Model: HALUX N30-1 P SV (Wall Extension Version)

• Light Intensity: 30,000 Lux at 0.5 meters

• Color Temperature: Fixed 4400 K (Neutral White)

• Dimming: Continuous (Stepless adjustment via touch panel)

• Total Reach: Extended radius (approx. 50"+ total reach with Extension + Gooseneck)

• Mounting: Wall Extension Mount (Primary bracket + articulating extension segment)

Technical & Clinical Advantages

• Extended "Reach-Around" Maneuverability: The addition of the extension arm allows the light to be positioned significantly further from the mounting point. This is ideal for reaching the foot of an exam table or navigating around head-wall obstructions in high-traffic trauma or ICU bays.

• Ergonomic Side-Mount Design: The "SV" side-mount connection allows the practitioner to manipulate the light head from the side rather than the top. This provides better clearance and visibility when performing ENT, OB/GYN, or veterinary exams at steep angles.

• Homogeneous Light Field: Utilizing vacuum-coated faceted reflectors and seven premium LEDs, the N30 produces a 7.1-inch (18 cm) light field. This uniform distribution minimizes shadows and glare, ensuring clear visualization of tissue and sutures.

• Stepless Dimmable Interface: The intuitive touch panel on the luminaire head allows for continuous dimming. This enables clinicians to soften the light for sensitive facial exams or maximize intensity for high-contrast minor procedures.

• Maintenance-Free Swiss Design: Advanced LED modules provide a significantly longer service life than traditional halogen lamps and eliminate the need for bulb replacements. The unit includes a 5-year warranty on all electronic components.

• Sealed Hygienic Construction: The IP20-rated housing features a seamless, enclosed design. The smooth surfaces facilitate rapid and thorough disinfection with standard hospital-grade wipes, meeting 2026 infection control protocols.

Ideal Applications

• Outpatient Procedure Rooms: Extended reach for suturing and minor surgical prep in rooms with fixed equipment.

• Veterinary Specialty Clinics: Perfect for reaching across large surgical prep tables or around anesthesia machines.

• Emergency & Trauma Bays: Robust and flexible lighting that can follow the patient's position across the full length of a gurney.

• Primary Care: A versatile "one-light" solution for rooms where the examination area is not immediately adjacent to the wall.

Condition & Quality Assurance

• Status: NEW — Factory Direct Quality.

• Integrity: Includes the HALUX N30-1 P SV light head, gooseneck arm system, articulating wall extension segment, and heavy-duty wall bracket.

• Standards Compliance: Fully compliant with EN 60601-1 and EN 60601-2-41 standards for medical electrical equipment safety.

Shipping & Handling

• Secure Logistics: Shipped in specialized reinforced packaging to ensure the extended arm joints and gooseneck friction remain in perfect calibration.
