Waldmann Triango Fokus LED 601C Minor Procedure Light Ceiling Mount Dimmable

Waldmann TRIANGO Fokus 60-1 C | 60,000 Lux | Ceiling Mount

The Waldmann TRIANGO Fokus 60-1 C is the most compact ceiling-mounted surgical light in the Waldmann medical series. Delivering 60,000 lux at 1 meter, this "Fokus" version provides clinicians with the specialized ability to adjust the light field diameter between 18 cm, 23 cm, and 28 cm.

By mounting to the ceiling, this unit maximizes the usable area around the procedural table while offering a stable, high-contrast 4700K cool-white light—the 2026 industry standard for precise visualization in dermatology, gynecology, and veterinary surgery.

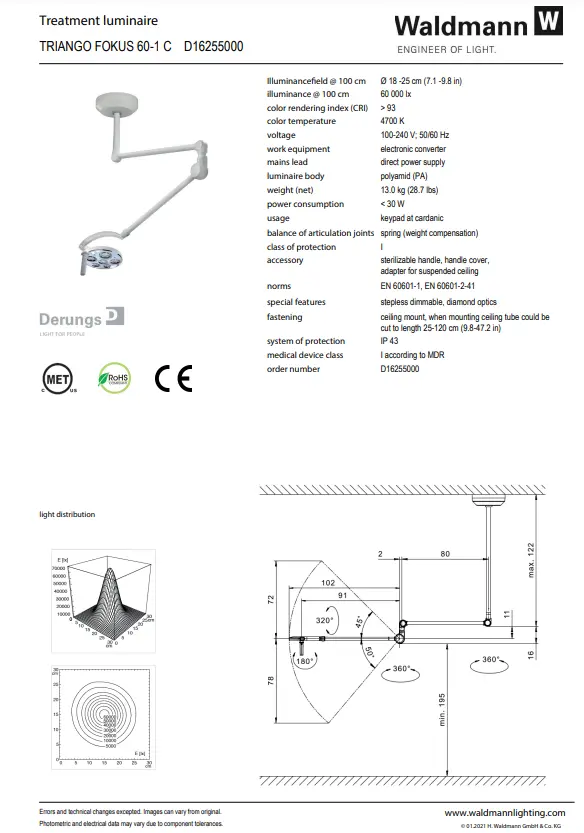

Key Specifications

• Manufacturer: Waldmann (Derungs)

• Model: TRIANGO Fokus 60-1 C (Ceiling Mount Version)

• Light Intensity: 60,000 Lux at 1 meter

• Adjustable Field of Light: 18 cm / 23 cm / 28 cm (approx. 7" to 11")

• Color Temperature: Fixed 4700 K (Cool White)

• Dimming: Continuous (Infinitely dimmable via membrane keypad)

• Mounting: Ceiling Mount with 360° rotation axis

Technical & Clinical Advantages

• Fokus Mechanical Versatility: The standout feature of this model is the integrated focusing system. Clinicians can narrow the light field to 18 cm for deep, concentrated procedures or expand it to 28 cm for broad surface visualization, ensuring the illumination area perfectly matches the surgical site.

• Diamond Cluster Optics: This advanced lens technology creates a perfectly homogeneous light field. It eliminates the "hotspots" and uneven distribution common in budget LED systems, providing a crisp, consistent beam across the entire selected field diameter.

• Continuous Dimming Control: Unlike models with fixed percentage steps, the TRIANGO 60 features a membrane keypad for stepless, continuous dimming. This allows the medical team to fine-tune the light intensity to the exact requirement of the case, effectively eliminating glare on metallic surgical instruments.

• Zero-Footprint Efficiency: The ceiling-mount configuration preserves valuable floor space in smaller procedure rooms. The high-quality articulated spring arm provides effortless movement and stays perfectly in place once positioned, folding tight to the ceiling when not in use.

• High-Contrast 4700K Visualization: The 4700K spectrum provides a clear, high-contrast light field. Combined with a CRI of 93+, it ensures accurate color representation, which is critical for identifying fine anatomical structures and assessing tissue health.

Ideal Applications

• Specialty Outpatient Clinics: Ideal for dermatology (MOHS surgery), plastic surgery, and urology suites.

• Veterinary Specialists: A premier choice for veterinary surgeons requiring a stable, high-intensity light with adjustable focal depths for dental or soft-tissue surgery.

• General Practice Procedure Rooms: Permanent ceiling placement ensures the light is always ready for emergent procedures without the setup time of mobile equipment.

• Gynecology: Clear, focused visualization for diagnostic exams and minor outpatient procedures.

Condition & Quality Assurance

• Status: NEW — Factory Direct Quality.

• Integrity: Includes the Fokus 60-1 light head, ceiling arm system, mounting hardware, and integrated membrane control keypad.

• Protection: Rated IP 43 for protection against dust and splashing liquids.

• Maintenance: Maintenance-free LED technology with an expected life of 50,000+ hours, eliminating the downtime and logistical burden of bulb replacements.

Shipping & Handling

• Secure Logistics: Shipped in specialized reinforced packaging to ensure the precision Fokus optics and the balanced spring arm arrive in perfect calibration.

• Fast Dispatch: Typically ships within 1–2 business days.
